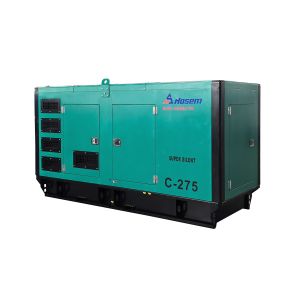

    Cummins 250kVA Soundproof Diesel Genset With 6LTAA8.9-G2 Engine For for Commercial Backup Use

    Ask Lasest Price
    Brand Name : Hosem
    Model Number : A-C275S
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, L/C
    Delivery Time : 30-35days
    • Product Details
    • Company Profile

    Cummins 250kVA Soundproof Diesel Genset With 6LTAA8.9-G2 Engine For for Commercial Backup Use

    Cummins 250kVA Soundproof Diesel Genset With 6LTAA8.9-G2 Engine For for Commercial Backup Use

    250kVA Cummins soundproof diesel generator set is designed for commercial and industrial backup power. It features a reliable Cummins 6LTAA8.9-G2 6-cylinder inline turbocharged engine, ensuring stable power and excellent performance.


    Our company diesle generator set is equipped with a high-quality Hosem alternator, with Leroy Sommer and Stamford alternator also available as options. It is equipped with an automatic voltage regulation function (AVR SX460) to ensure stable power supply even under varying loads.


    Equipped with Smartgen HGM6120 control panel, it provides comprehensive protection and monitoring functions, including automatic start and stop, high coolant temperature alarm, low oil pressure alarm, low oil level alarm, overload alarm and battery voltage abnormality alarm , etc., ensuring safe and reliable operation of the diesel genset.

    250kva cummins diesel generator


    Specification

    Generator Set Specification
    ModelA-C275S
    Max. PowerkVA275
    kW220
    Rate PowerkVA250
    kW200
    FrequencyHz50
    Rate VoltageV400/230
    Rate CurrentA360.9
    Fuel Tank CapacityL450
    Dimension For Open-type Gensetmm2654 X 1156 X 1595
    Weight For Open-type Gensetkg1750
    Dimension For Soundproof Gensetmm3650 X 1140 X 1700
    Weight For Soundproof Generatorkg2200
    Noise Level for Soundproof Generator at 7MdBA75
    BatteryTwo of Free Maintenance Battery

    Datasheet​--Engine

    Engine Specification
    Engine ManufacturerDongfeng Cummins Engine Co., Ltd.
    Engine BrandCummins
    Engine Model6LTAA8.9-G2
    No. of Cylinder6 Cylinder in line
    AspirationTurbocharged and Air to Air Aftercooled
    GovernorElectric
    Engine Max. Output PowerkW242
    DisplacementL8.9
    Compression Ratio16.6 : 1
    Starting VoltageV24
    Boremm125
    Strokemm136
    Lubrication Oil CapacityL36
    Intake Air FlowM3/Min18.7
    Fuel Consumption at 100% LoadL/H53

    Datasheet​--Alternator

    Alternator Specification
    Alternator ManufacturerFuzhou Hosem Power Co., Ltd.
    Alternator ModelASF 274 K
    Alternator BrandHosem
    Rate OutputkVA250
    FrequencyHz50Hz
    AltitudeM≤1000
    InsulationClass H
    Phase3 Phase
    Working Temperature without power decrease≤40℃
    Working Altitude without power decrease≤1000m
    Automatic Voltage RegulationSX460
    Protection GradeIP23
    Alternator for optionalLeroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

    Datasheet​--Controller

    Control Panel Specification
    Controller BrandSmartgen
    Controller ModelHGM6120
    Breaker BrandDelixi
    Breaker Capacity (A)400
    Battery ChargerSmartgen Model BAC06A
    Emergency Stop ButtonSupply
    Automatic Mains Fail (AMF)Supply
    Fuel LevelSupply
    Automatic Transfer SwitchATS as optional part
    The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
    Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

    FAQ:

    Q1: What is the price?

    A: The price of our diesel generator is based on several factors, including the brand, power capacity, order quantity, payment terms(such as FOB, EXW, CIF) and the customer’s specific requirements etc. For an accurate quotation, please feel free contact me for quotation.


    Q2: How long does it take to deliver this diesel generator set?

    A: The delivery time for diesel generators is usually around 30 days.


    Q3:What is the packaging of diesel generator?

    A: The packaged in a wooden package or plastic foam package.


    Q4:What is the lead time?

    A: 30-35 workings days.
