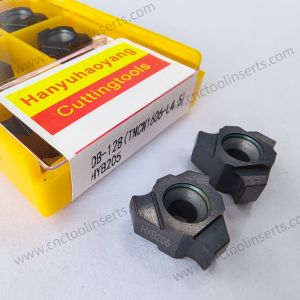

    CNC Grooving Insert with PVD Coating TNCW1606-L4.0 HYB205, Suitable For Difficult-to-machine Materials Except High-temperature Alloys.

    Ask Lasest Price
    Brand Name : Hanyuhaoyang
    Model Number : DB-128(TNCW1606-L4.5)
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : ten million PCS
    Delivery Time : It is determined according to the customer's order.
    • Product Details
    • Company Profile

    CNC Grooving Insert with PVD Coating TNCW1606-L4.0 HYB205, Suitable For Difficult-to-machine Materials Except High-temperature Alloys.


    Its core function is to be installed on the milling cutter body and cooperate with the machine tool movement to efficiently form structures such as keyways, right - angled grooves, and irregular grooves. It is widely used in fields such as mechanical manufacturing, automotive, and mold industries.
    Product Advantages
    Precise Shape Control: The standardized positioning structure minimizes the position error of the cutting edge, enabling stable control of geometric tolerances such as the perpendicularity and symmetry of the groove walls.
    Efficient Chip Removal: The shape of the chip pocket is adapted to different chip types (ribbon chips, granular chips), reducing downtime for cleaning and improving processing continuity.

    Application Fields of Grooving Inserts
    Grooving inserts are specialized cutting tools designed for machining precision grooves such as narrow slots, relief grooves, and sealing grooves. Their core application fields are as follows:


    I. Automotive Manufacturing

    1. Engine Systems:Piston ring groove machining ;Valve seat sealing grooves;Crankshaft oil grooves and balance grooves
    2. Transmission Systems:Synchronizer ring grooves in gearboxes;Clutch snap ring grooves;Differential bearing positioning grooves
    3. Braking Systems:Brake disc cooling slots (depth-to-width ratio ≤5:1);Piston dust seal grooves

    II. Aerospace

    1. Engine Components:Turbine blade tenon grooves (special coating for high-temperature alloys);Compressor disk sealing grooves
    2. Hydraulic Systems:Actuator high-pressure sealing grooves ;Fuel valve throttling grooves
    3. Structural Parts:Fuselage weight-reduction grooves (titanium alloys/composites);Landing gear safety lock grooves

    III. Energy Equipment

    1. Nuclear Power:Valve stem sealing grooves;Reactor pressure vessel sealing ring grooves
    2. Oil and Gas Drilling:Drill pipe thread relief grooves (corrosion-resistant coating);Blowout preventer hydraulic passage grooves
    3. Wind Power Equipment:Gearbox bearing sealing grooves;Yaw ring lubrication grooves

    IV. General Machinery

    1. Hydraulic Components:Pump valve flow channel grooves (cast iron/steel);Hydraulic cylinder piston rod locking grooves
    2. Mold Manufacturing:Injection mold hot runner grooves (H13 mold steel);Die-casting mold overflow and venting grooves
    3. Bearing Industry:Bearing cage riveting grooves;Slewing bearing raceway oil grooves

    FAQ


    1. Q: Are you the original manufacturer of the inserts.

    A: Yes, we are the original factory for both standard and non - standard inserts with a 14 - year entrepreneurial history. We have our own production lines, as well as design and sales teams.


    3. Q: How long is your delivery time?

    A: It is determined according to the customer's order.You can communicate the details directly with the customer service on our website.


    4. Q: What is the best way to contact you?

    A: Contact us via email, WhatsApp, WeChat (ID: hanyuhaoyangtools), phone (+86 13880606307), or live chat.
