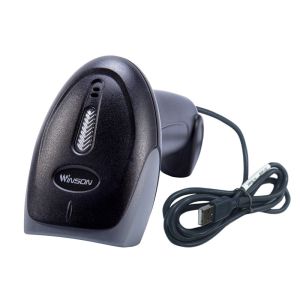

OEM Wired Handheld Barcode Scanner with QR Code Capability USB Interface CCD Payment System

  • Product Details
  • Company Profile

OEM Wired Handheld Barcode Scanner with QR Code Capability USB Interface CCD Payment System

Product Description
Specification
Interface Supported
RS-232/USB HID KEYBOARD/USB VCP
Input Voltage
DC 5V±10%
Current
Max:135mA
Image Sensor
CCD Linear Sensor
Light Source
632nm Red LED
Sensor Resolution
1500pixels
Decoding rate:
350 scans/second±20 scans/second
Scanning Angle
Pitch angle:±35°;Skew angle:±75°;Tilt angle:±40°
Min Resolution
0.127/5mil(PCS 0.9)
Min .PCS value
〉25%UPC/EAN 13(13mil)
Language
Multiple Languages
Data Edition
Support for custom data output
Decode Capability
EAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39,CODE 93,INTERLEAVED 2OF5,STANDARD 2OF5,MATRIX 2OF5,CODE 128,EAN/UCC 128,CODE 11,CHINESE POST
Dimensions
97mm*67mm*165mm(L*W*H)
Weight
132.4g
Indicator
Beeper, LED
Temperature
-20°∽65°C / -4°∽149°F(operation) /-30°∽70°C /-22°∽158°F(storage)
Humidity
5 - 90% (operation) ) 5 - 90% (storage)
Ambient Light:
Up to 80,000 lx
Shock Drop Test
1.5m drop onto concrete surface
