A1 SE4630 Passport Reader Mrz Ocr Scanners Qr Code Reader Module

  • Product Details
  • Company Profile

A1 SE4630 Passport Reader Mrz Ocr Scanners Qr Code Reader Module

Product Description
Product Parameters








General
Type
barcode scanner engine
Product model
SE4630
Brand Name
WCMI
Product Specification

Mini Barcode Scanner Engine
Products Status
Stock
Place of Origin
Tianjin,China
Private Model
Yes
Warranty(Year)
2-year
After-sales Service
Return and Replacement; Free spare parts
Certification
RoHS、CE、FCC
Color
black
Language Supported

English/Customized
Scan Element Type
CMOS









Scan code Performance
Image (Pixels) Sensor

640 X 480 CMOS @ 30fps
Light Source
White LED
View Angle
Horizontal 37°





Decoding Capability
2D: QR 、PDF417、DataMatrix(ECC200)、Aztec、HANXIN code、Maxicode、Micro QR、Micro PDF417
1D: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、
Code128、Code39、Code93、CodaBar、Interleaved 2
of 5、Industrial 2 of 5、Matrix 2 of 5、Code11、 MSI- Plessey、Standard 2 of 5、Plessey、China Post、Code
16K、GS1 Databar(RSS-Expand, RSS-Limited, RSS-14)


Depth of Field
EAN13: 40~200 mm (13mil)
CODE128: 45~250 mm (15mil)
QR: 40-180mm(15mil)
Scan Angle
Rotation: 360°, Pitch: ±60°, Deflection: ± 60°

Scan Mode
Continuous mode, Induction mode, Manual mode, Command-Triggered Mode
Precisions
1d ≥5mil / 2d ≥10mil
Symbol Contrast
≥15%



Physical Parameters
Weight
<10g

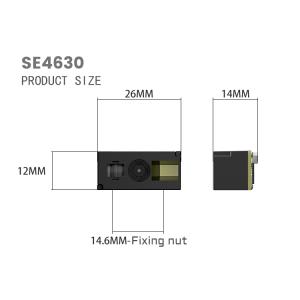

Dimensions
26.15mm x 12.09mm x 13.85mm
Interface
TTL-232 / USB 2.0 Full Speed

Prompt Mode
LED prompt and buzzer (external connection available)
Voltage
+3.3VDC±5%
Current
working: 120mA; Sleeping: 500uA

Environmental Parameter
Operating Temperature

-20℃ ~ 60℃
Storage Temperature

-40℃ ~ 70℃
Operating Humidity
5%RH~95%RH (Non-condensing)
related products
Company Information
Tianjin wavecreating Micro Intelligennt Technology CO., Ltd. is one of the leading professional R&D manufacturers for barcode scanning products in China. Our company is located in Tianjin Economic and Technological Development Area and has a registered capital of 10 million yuan. The company continuously insist on defining products from the chip, taking customized chips, image recognition algorithms and customized services as our core competency and consistently strive to improve it. The company has more than 50 employees, including 36 R&D staff, 97% of whom have a bachelor’s degree or above, 9 masters, and 2 doctors.
Packing & Delivery
Certification
FAQ
1. Is OEM or ODM available?
Yes. We are the factory directly. We can make it as your requirement.
2. What’s the warranty policy for the barcode scanners?
We provide 24 months maintenance warranties. During warranty, free and quick advice for repairing, free spare parts if it is
necessary for replacement or new barcode scanners replacement in the next order.
3. Why so competitive?
We have a professional R & D team and technical team and have a large domestic market. So large quantity will reduce our raw material cost directly. What's more, we have mature technology to save costs.
4. How to control the performance stability?
We take the flow line production in the whole processing. Every product will test 4 times at least before it is delivered.
5. How about the factory?
We have more than 200 workers with an advanced dust-free plant. We are approved the new high-tech enterprise by the government. Owned many technical and design patents in different professional fields.
