    48V 280Ah Solar Energy Storage Batteries for Office Home Backup Power OEM/ODM Acceptable and Long Cycle Life 6000 Times

    Ask Lasest Price
    Brand Name : CTS
    Model Number : 48100/48200
    Certification : MSDS/UN38.3
    Price : 580-1150
    Payment Terms : T/T,Western Union,MoneyGram
    Supply Ability : 3000 units per month
    Delivery Time : 25 working days
    • Product Details
    • Company Profile

    48V 280Ah Solar Energy Storage Batteries for Office Home Backup Power OEM/ODM Acceptable and Long Cycle Life 6000 Times

    51.2V 100Ah 200Ah Lithium Ion Battery Pack 48V 280Ah Solar Energy Storage Batteries for Office Home Backup Power



    Expandable, plug-and-play backup power supply for home and office.

    Product Description

    Three modules available


    MODEL
    CTS4850R
    CTS48100R
    CTS48200R
    ELECTRICAL SPECIFICATIONS
    Cell Type - Chemistry
    LiFePO4
    LiFePO4
    LiFePO4
    Rated Capacity
    50Ah
    100Ah
    200Ah
    Rated Voltage
    51.2V
    51.2V
    51.2V
    Energy
    2.56kWh
    5.12kWh
    10.24kWh
    MECHANICAL SPECIFICATIONS
    Dimensions (L x W x H)
    442*410*133mm
    442*435*155mm
    442*820*155mm
    Weight
    28Kg
    48Kg
    82Kg
    DISCHARGE SPECIFICATIONS
    Discharge Cut-off Voltage
    40V
    40V
    40V
    Max Continuous Discharging Current
    50A
    100A
    150A
    Recommended Disharge Current
    25A
    50A
    100A
    CHARGE SPECIFICATIONS
    Charging Limited Voltage
    57.6V
    57.6V
    57.6V
    Max Charging Current
    50A
    100A
    150A
    Recommended Charge Current
    25A
    50A
    100A
    Working Temperature Range
    Charge: 0~45℃
    discharge : -20~60℃
    Recommended Operating Temperature
    15~35℃
    Recommended Storage Temperature & Humidity Range
    15~35℃, 45~75%RH


    Support 15 parallel connections
    Meet the power consumption of different houses



    Detailed design



    How to connect batteries with the inverter and MPPT?



    Five exclusive designs




    1. 3% power over specification
    A+++ battery, buy 100Ah, you will get 103Ah
    2. Internal protection
    The ABS bracket is higher than the busbar to prevent impact/heavy objects from falling on top of the metal cover.




    3. Comprehensive monitoring
    4 temperature sensors and 16 voltage sensors per battery are controlled by BMS
    4. Double strong connection
    Double strong connection busbar adopts screw connection and laser welding, double insurance

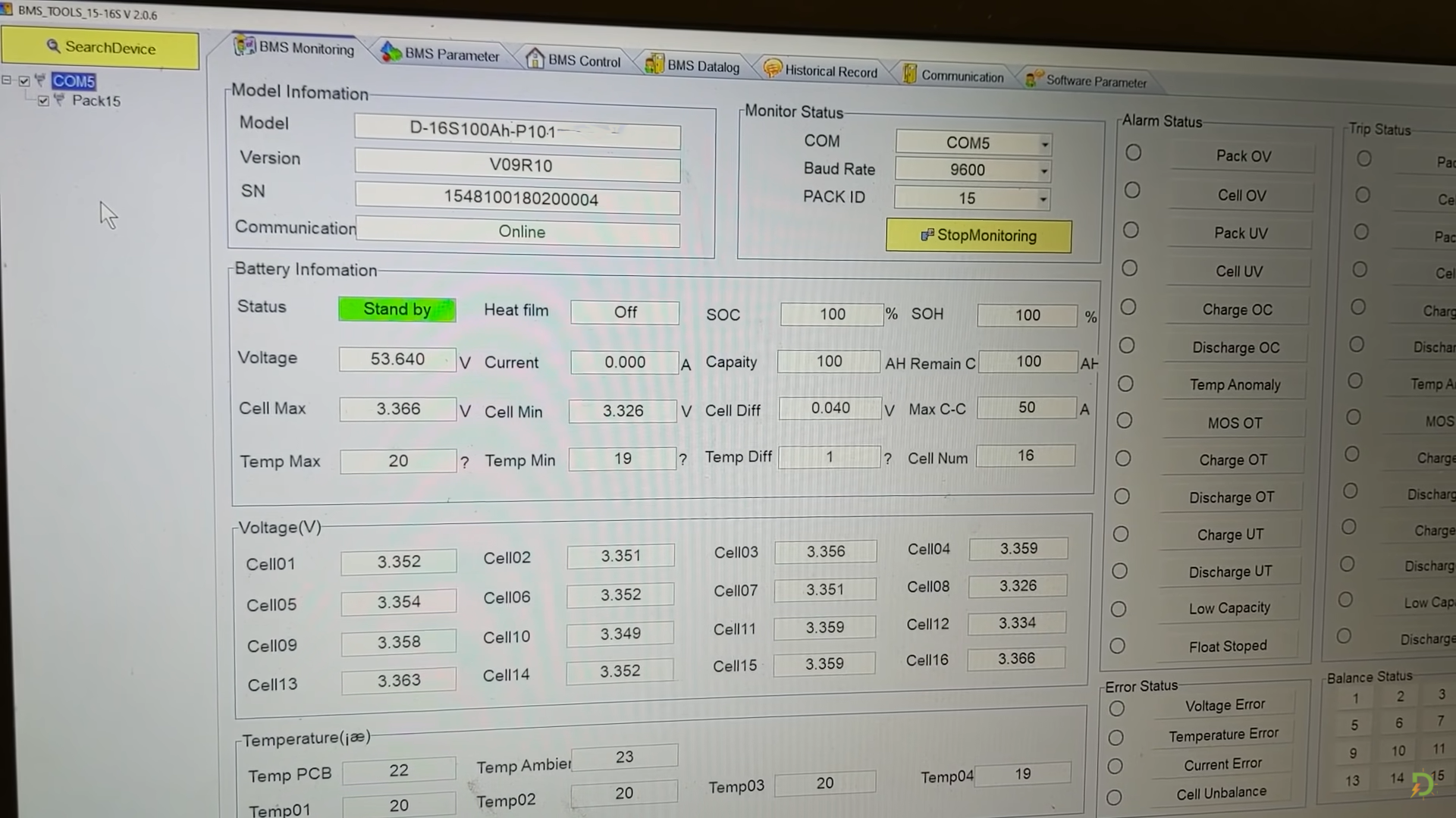

    5. Read battery infomation on the computer
    Using RJ45 cable, you can read battery information on the computer through RS485 interface. Information includes battery voltage, total voltage, battery temperature, SOC, etc.

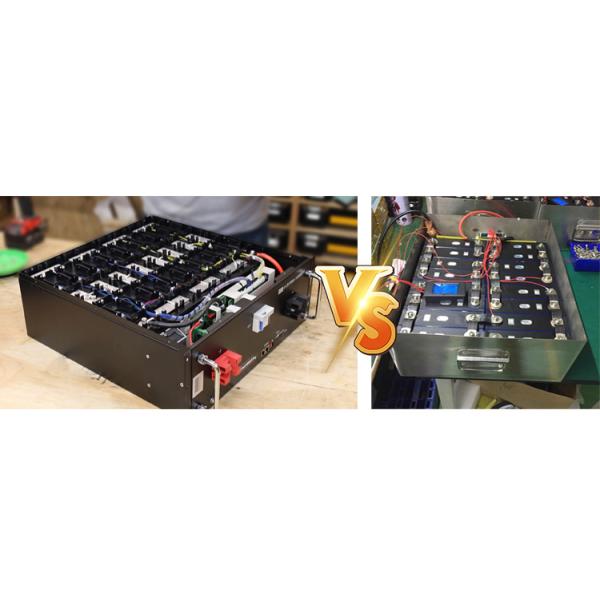

    CTS
    Other
    Plastic holder
    1.We use customized plastic holder between each cells for better insulation, so when the operator install batteries, there will be no danger
    No holder between cell, insulation need to be concerned
    Unblocked explosion-proof valve
    2.The explosion-proof valve is not blocked, the physical structure safety of the cell is ensured
    Both has blocked explosion-proof valve, not meet the cell safety using requirements
    BMS with cover
    3.BMS is well protected by metal cover, prevent damage for shock
    No cover on both BMS
    Laser welding+Screws
    4. We use laser welding around the srew to further strengthen the connection to completely eliminate the risk of screw falling. Laser welding also reduce the contact surface between the screw and the bus bar to enhance current capability. This laser welding can also reduce internal resistance and reduce power consumpution. The user can get more power
    First has untidy welding, big risk of damage cables, second only srews.

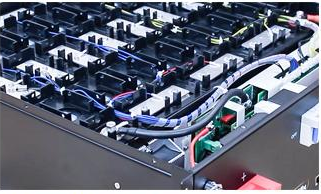

    Orderly cable arrangement
    5. Orderly cable arrangement can reduce poor connector contact, short circuit and open circuit between wires
    lack of standardization, cables go through basbar in the first, disorder cables in the second

    Company Profile


    ● Professional 30+ senior engineers offer 24 hours online service and response within 30 min.
    ● 10000m² factory, 200 worker, 30 engineers and 4 production line, 1GWH annual production capacity.
    ● 100% OQC testing with 25 detection contents.
    ● 14 years lithium battery designing and production experience.
    ● ISO9001 &IATF16949 certifications to ensure the quality of products.
    ● Global on-site technical support.

    Hunan CTS Technology Co., Ltd. is an ISO 9001 and IATF 16949 certified manufacturer specializing in the R&D, production and sale of lithium battery packs since 2011.

    With 10000m² factory, 200 worker, 30 engineers and 4 production line, CTS focuses on customizing batteries for middle-to-high-end markets with 1GWH annual production capacity. CTS batteries are widely used in 200+ electrification applications, including all kinds of electric vehicles, electric boats, electric motorcycles, energy storage systems.

    Guided by the principle of "Customers First, Quality is Life", CTS strictly follows 5S factory management standard in every detail of production, ensuring that each battery undergoes 100% OQC testing with 25 detection contents.

    CTS batteries are certified with R100, IEC 62619, CE,MSDS and UN38.3 and trusted by customers in 30+ countries and regions.

    Together, we can lead the new energy revolution and support global zero-emission efforts!



    Product testing and shipping
    1. Cartons and foam packaging to ensure safety in different modes of transportation
    2. 100% inspection before shipment to ensure quality control
    3. MSDS and UN38.3 certification to ensure customs declaration and clearance during transportation
    4. On-site customs inspection to ensure battery safety


    Our business partner

    Customer feedbacks
    If you are interested in our batteries, please feel free to contact us.
