    Lithium Battery Pack 1-24 Series Protective Plate PCB Tester

    Ask Lasest Price
    Brand Name : XWELL
    Model Number : PBTS24-120
    Certification : CE
    Price : 1000-100000USD/Negotiable
    Payment Terms : L/C,D/A,D/P,T/T
    Supply Ability : 100 pcs a month
    Delivery Time : 7-15days
    • Product Details
    • Company Profile

    Lithium Battery Pack 1-24 Series Protective Plate PCB Tester

    Lithium Battery Pack 1-24 Series Protective Plate PCB Tester


    3 Types of protection boards supporting the test: LiFePO4,LiMn2O4,LiCoO2


    3. Technical Parameter

    3.1 High current module: The current level is 120A and the current accuracy is 0.1A.
    3.2 Voltage module: Voltage range 0.5-5V, programmable output 0.5-5V, voltage accuracy
    5mV.
    3.3 Short circuit module: Super capacitor, which fully simulates the pack battery voltage,
    instantly short circuits the protection board, and accurately captures the short-circuit time and

    current.

    Specication:
    Test ItemsTest ScopeAccuracy
    Number of test series1-24 series
    Reference voltageLiCoO2(3.8V) LiFePO4(3.0V)
    Overcharge protection voltage0.5-5V±5mV
    Over discharge protection current1-120A±0.1A
    Equalizing opening voltage0.5-5V±5mV
    Over discharge protection delay0-20S±1mS
    Short circuit protection (More than 6 series)0-9999us±1uS
    ApplicationAll hardware scheme protection boards and
    some software boards in the market (Special test items need to be communicated)
    Picture:

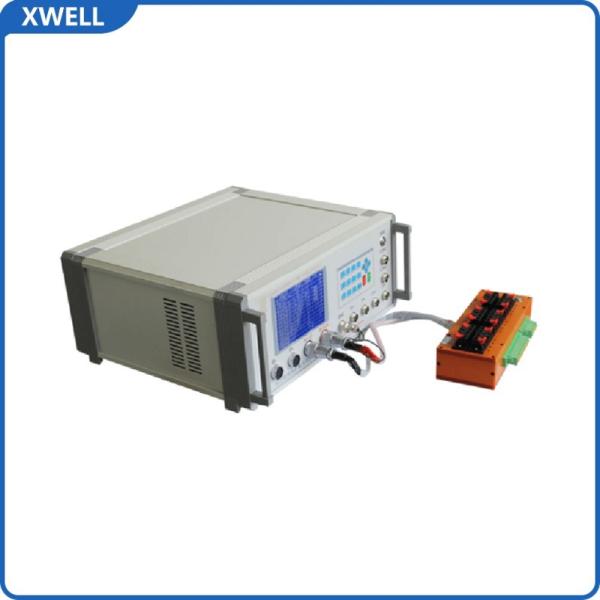

    Quality Lithium Battery Pack 1-24 Series Protective Plate  PCB Tester for sale
