SDM Series Flat Suction Cup Special for Metal Sheet

    Buy cheap SDM Series Flat Suction Cup Special for Metal Sheet from wholesalers

    Buy cheap SDM Series Flat Suction Cup Special for Metal Sheet from wholesalers
    • Buy cheap SDM Series Flat Suction Cup Special for Metal Sheet from wholesalers

    SDM Series Flat Suction Cup Special for Metal Sheet

    Ask Lasest Price
    Brand Name : NBSANMINSE
    Model Number : SDM100
    Supply Ability : 10000PCS
    Delivery Time : 5-30days
    Certification : ISO9001
    Price : Negotiate
    Payment Terms : L/C,T/T
    • Product Details
    • Company Profile

    SDM Series Flat Suction Cup Special for Metal Sheet

    Features
    ◇ PU material
    ◇ Thicken the wall thickness, intermal reinforced rib structure design
    Advantages
    ◇ Long lifetime, excellent wearresistance, ozone resitance, oilresistance
    ◇ Effectively prevent deformation of metal sheet during handling
    Applications
    ◇ Handling metal sheet and aluminum plate without deformation
    Structure
    ◇ Split structure design, wearing parts can be replaced separately
    SDM 100 U -G3F
    ② ③
    Series



    DiameterMaterial &HardnessConnection thread
    SDM

    100-φ100mmU-PU 70Nil-Suction cuponly



    G2F-G1/4 female thread



    G3F-G3/8 female thread
    Selection
    ModelConnection thread
    G2F
    G3F
    SDM100USDM100U-G2FSDM100U-G3F
    Technical parameters
    ModelPull-out force NInner volume cm³Min.curve radius of workpiece mmWeight gRecommended hose dia.mmMPQ
    pcs
    SDM100375561606281
    ◇ Note: Testing vacuum level -60kPa, workpiece with smooth and clean surface. The data of pull-out force as above are figured out without considering safety factor.
    The data may be different according to different workpiece surfaces.

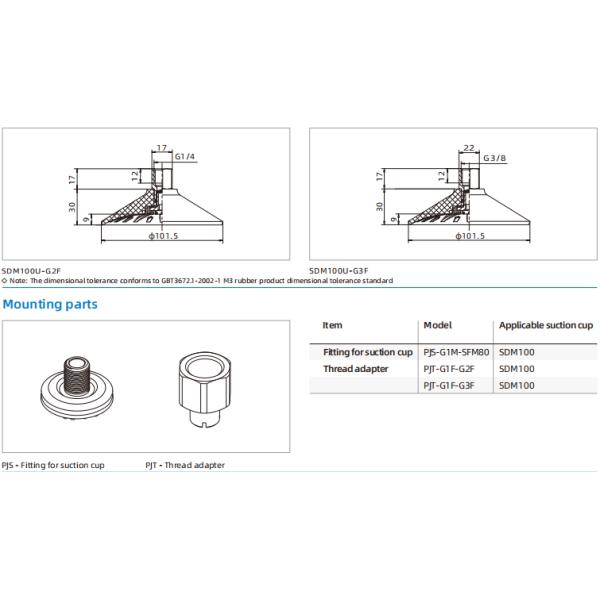

    Dimensions(mm)
