Industrial PoE Powered 5-Port 10/100/1000T + 2-Port 100/1000X SFP
Ethernet Switch with PoE Passthrough
Overview

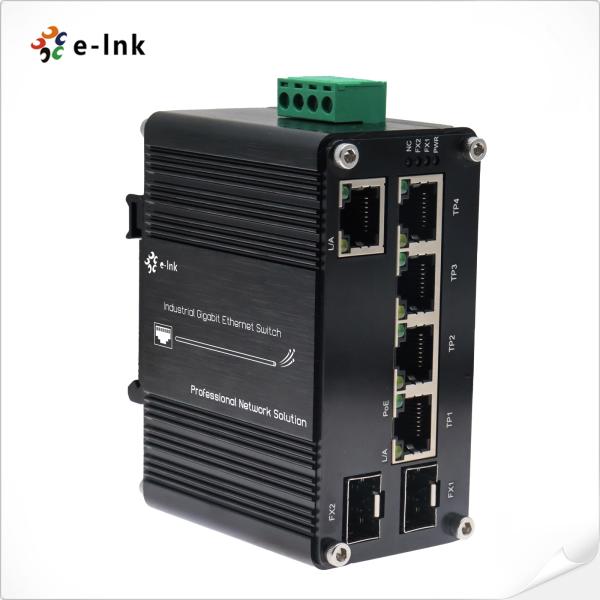

The LNK-IMC205GPD-SFP is a Mini Industrial PoE-Powered Ethernet Switch featuring 5 Gigabit RJ45 ports (10/100/1000T) and 2 SFP fiber slots (100/1000X). It integrates both Powered Device (PD) and Power Sourcing Equipment (PSE) functions, allowing it to receive power and data from an IEEE 802.3bt PoE++ source (up to
95W) and deliver up to 71W PoE power budget across 4 PoE ports (IEEE 802.3af/at/bt compliant).
Designed for PoE pass-through applications, this switch eliminates the need for local power sources in
challenging environments. It supports PoE extension up to 200m, doubling the standard 100m distance without additional wiring.
This reduces installation costs and avoids visible power cables in
ceilings or walls while delivering up to 30W to compatible devices, such as IP cameras, wireless APs, and other
PoE devices.
Ideal for industrial networks, remote deployments, and space-limited installations, the LNK-IMC205GPD-SFP ensures high reliability, plug-and-play setup, and robust performance in harsh environments.
Features
► One IEEE 802.3bt (PoE++ / 4PPoE) PD PoE Port with 95 W Power
Input
► Four PSE PoE ports, PoE Power Budget up to 71 Watt
► Two 100/1000BASE-X SFP slots for SFP type auto detection
► POE extender: No AC adapter is required, powered by PoE switch or
PoE injector
► Expand and repeat your PoE network for up to 4 IP devices
► IEEE 802.3af/at/bt Compliant Output
► Supports DIN-Rail installation
► Compact fanless design avoids overheating
► IP40 rugged high-strength metal case
► -40°C to 80°C (-40°F to 176°F) operating temperature
Technical Indexes
| Ethernet |
| Standards: | IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet |
| IEEE 802.3ab Gigabit Ethernet |
| IEEE 802.3x Full-Duplex Flow Control |
| IEEE 802.3az Energy Efficient Ethernet (EEE) |
| IEEE 802.3bt 4-pair Power over Ethernet |
| IEEE 802.3at Power over Ethernet Plus PSE |
| IEEE 802.3af Power over Ethernet Plus |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| 1,488,000pps (1000Mbps) |
| Packet Buffer: | 2Mbits |
| Packet Length: | 10Kbytes |
| MAC Address Table: | 4K |
| Switch Fabric: | 14Gbps/non-blocking |
| Exchange Property | Backplane bandwidth: 14Gbps; Packet forwarding rate: 14.88Mpps |
| Connector: | 4 ports with 802.3at PoE+ injector function (Ports 1 to 4) |
| Network Cables | Twisted-pair: 10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m 100BASE-TX: 2-pair UTP Cat. 5, up to 100m 1000BASE-T: 4-pair STP Cat 5 up to 100m
Fiber-optic Cable 1000BASE-SX: 50/125μm or 62.5/125μm multi-mode fiber cable, up to
220/550m/2km. 1000BASE-LX: 9/125μm single-mode cable, providing long distance of
2/10/20/40/80/120km (depending on SFP module) 100BASE-FX: 50/125μm or 62.5/125μm multi-mode fiber cable for up to 2km
(depending on SFP module) 9/125μm single-mode cable for 20/40/60/120km (vary on SFP module) |
| Interface |
| Connector: | 5 x RJ45 (1-Port PoE In, 4-Port PoE Out) |
| Optical Port: | 2 x SFP 1000Base-X or 100Base-FX (auto detection) |
| PoE (Power over Ethernet) |
| Standard: | IEEE802.3af/at/bt |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Budget: | Up to 71-watt PoE budget |
| Environmental |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical |
| Input Power: | Pass through PoE: 95W power input from a PoE injector or switch |
| 48~57VDC (Terminal Block) |
| Power Consumption: | <5W (Non-PoE) |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Dimensions (LxWxH): | 95 x 88 x 46mm |
| Weight: | 300g |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail |
| LED Indicators: |
| PWR: | Power |
| L/A: | Link/Activity |
| PoE: | PoE Status |
| FX1/FX2: | SFP Fiber Link Status |
| Regulatory Approvals |
| ISO9001, CE, FCC, RoHS |
| EN55022:2010+AC: 2011, Class A |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
| EN 61000-3-3: 2013 |
| EN55032:2017 |
| IEC 61000-4-2: 2008 (ESD) |
| IEC 61000-4-3: 2010 (RS) |
| IEC 61000-4-4: 2012 (EFT) |
| IEC 61000-4-5: 2014 (Surge) |
| IEC 61000-4-6: 2013 (CS) |
| IEC 61000-4-8: 2009 (PFMF) |
Ordering Information
| Model | Description |
| LNK-IMC205GPD-SFP | Industrial PoE Powered 5-Port 10/100/1000T + 2-Port 100/1000X SFP
Ethernet Switch with PoE Passthrough |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page
(Industrial SFP). |
| ► SFP module is to be purchased separately. |
| Mounting Options | ► Default DIN-Rail Bracket installed; |
| Power Options | ► PoE Pass Through |
| ► Power Supply is to be purchased separately |
