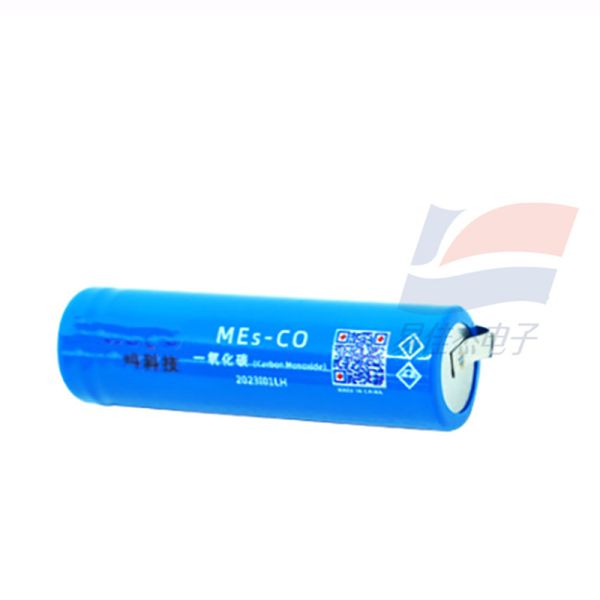

YJJ MEs-CO Electrochemical Carbon Monoxide Sensor A Fuel Cell Type Sensor Is Used In Fields Such As Fire Monitoring

Product Description:

YJJ MEs-CO Electrochemical Carbon Monoxide Sensor A Fuel Cell Type Sensor Is Used In Fields Such As Fire Monitoring

Features:

MEs-CO new type electrochemical carbon monoxide sensor is a fuel cell type sensor. Carbon monoxide and oxygen undergo corresponding oxidation-reduction reactions on the working electrode and the counter electrode, releasing charges and forming an electric current. The magnitude of the generated current is proportional to the concentration of carbon monoxide and follows Faraday's law. By measuring the size of the current, the concentration of carbon monoxide can be determined.

Main applications

Suitable for a wide range of fields such as smart homes, commercial buildings, underground garages, and fire monitoring for carbon monoxide concentration detection.

Gas detection Carbon Monoxide (CO)

Range 0 - 1000 ppm

Maximum measurement limit 2000 ppm

Sensitivity 1.0 - 2.0 nA/ppm

Resolution 1 ppm

Response time (T90) < 30 seconds

Load resistance (recommended) (500/1K/2K) Ω

Repeatability < 3% of output value

Output linearity Linear

Zero drift (-20℃ - 40℃) ≤ 10 ppm

Temperature range -20℃ - 80℃

Humidity range 15% - 90% RH

Pressure range Standard atmospheric pressure ± 10%

Life span 7 - 10 years
