    SDP1000-L05 Low - range Differential Pressure Sensor For Automotive Automation Process Control Fields

    Ask Lasest Price
    Model Number : SDP1000-L05
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000PCS
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

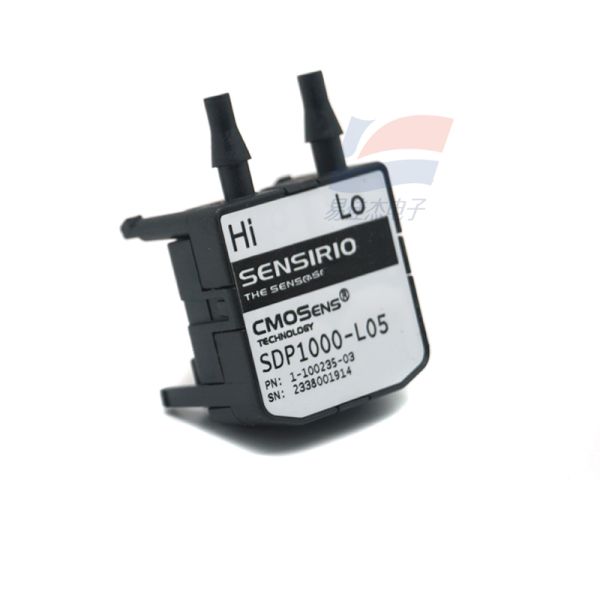

    SDP1000-L05 Low - range Differential Pressure Sensor For Automotive Automation Process Control Fields


    SDP1000-L05 Low - range Differential Pressure Sensor For Automotive Automation Process Control Fields


    Product Overview:


    The SDP1000 - L05 is mounted in a rugged, chemically inert PPS housing. It features a unique dynamic range, zero offset, and excellent long - term stability. Based on Sensirion's proprietary CMOSens® sensor technology, the sensor element is integrated with amplification and A/D conversion on a single silicon chip.


    Application Fields:


    It is an ideal choice for demanding applications, such as medical and HVAC systems. It can also be used in automotive, automation, and process control fields.


    Pressure Range- 5 - 125Pa
    Accuracy0.2% FS / 1.5% m.v.
    Supply Voltage4.75 - 5.25V
    Average Supply Current4300μA
    Max. Supply Current5200μA
    Output TypeAnalog voltage
    Output Voltage Range0.25 - 4V
    Operating Temperature Range- 10 - 60°C
    Storage Temperature Range- 40 - 80°C
    ResolutionUp to 0.05Pa
    Response Time40ms
    Allowable Over - pressure1 bar
    Instantaneous Over - pressure Capacity2 bar
    Dimensions (L×W×H)44×30×22.1
