| Brand Name : | HUAYU |
| Model Number : | HYBM220-3 |
| Certification : | ISO9001, CE |
| Price : | 280000 USD |
| Payment Terms : | T/T,L/C |
| Supply Ability : | 1SET 120DAYS |
| Delivery Time : | 4 MONTHS |

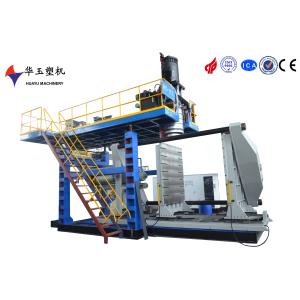

The HUAYU220L-3 Blow Moulding Machine is designed for precision manufacturing of large plastic drums. It features advanced automation and energy-efficient technology, ensuring consistent product quality and uniform wall thickness, with a durable construction guaranteeing long-term reliability.
Extrusion System | ||
Screw diameter | 90/100/90mm | Nitrided 38CrMoAIA |
Screw L/D ratio | 30:1 | special designed screw can ensure the material plasticizing uniform and efficient |
Extruder motor | 55/75/55kw | |
Reducer | Guomao 250*2/280*1 | Best quality brand in china ,long life and low noise |
Screw heating power | 4kw*12 | |
Plasticizing capacity | 350kg/h | |
Die head | ||
Accumulator capacity | 20kg | designed by ourselves and get the patent |
Die diameter | Max 300mm | |
Die head heating power | 50kw | |
Clamping System | ||
platen size | 1400*1500(W*H) | smooth running, no noise; the clamping force is big |
clamping cylinder | 230 120*2 | |
clamping cylinder stroke | 1000mm | |
clamping force | 1200KN | |
distance between platens | 900-2300mm | |
寸max. mould size | 1200*1500mm(W*H) | |

|
