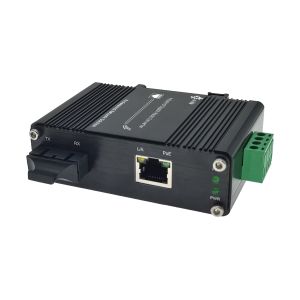

    Buy cheap Mini Industrial 100BASE-FX to 10/100BASE-T 60W PoE++ Media Converter from wholesalers

    Buy cheap Mini Industrial 100BASE-FX to 10/100BASE-T 60W PoE++ Media Converter from wholesalers
    • Buy cheap Mini Industrial 100BASE-FX to 10/100BASE-T 60W PoE++ Media Converter from wholesalers
    • Buy cheap Mini Industrial 100BASE-FX to 10/100BASE-T 60W PoE++ Media Converter from wholesalers
    • Buy cheap Mini Industrial 100BASE-FX to 10/100BASE-T 60W PoE++ Media Converter from wholesalers
    • Buy cheap Mini Industrial 100BASE-FX to 10/100BASE-T 60W PoE++ Media Converter from wholesalers
    • Buy cheap Mini Industrial 100BASE-FX to 10/100BASE-T 60W PoE++ Media Converter from wholesalers

    Mini Industrial 100BASE-FX to 10/100BASE-T 60W PoE++ Media Converter

    Ask Lasest Price
    Brand Name : E-link
    Model Number : LNK-IMC1100P60 Series
    Certification : ROHS,FCC,CE,ISO9001
    Price : $39-270
    Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypal
    Supply Ability : 1000 pcs/month
    Delivery Time : 3-12 working days
    • Product Details
    • Company Profile

    Mini Industrial 100BASE-FX to 10/100BASE-T 60W PoE++ Media Converter

    Mini Industrial 100BASE-FX to 10/100BASE-T 60W PoE++ Media Converter


    Advantages

    ► 1-Port 10/100BASE-T RJ45 with auto MDI / MDI-X function

    ► 1-Port 100Base-FX SC

    ► IEEE802.3af/at compliant

    ► Up to 60W of power over 4-pairs

    ► Supports Full/Half-duplex, Auto-negotiation

    ► IEEE 802.3az Energy Efficient Ethernet (EEE)

    ► 12~48VDC Terminal Block Power Input

    ► Supports DIN-Rail & Wall-mount installation

    ► Environmentally hardened -40°C to 75°C
    (-40°F to 167°F) operating temperature



    Overview

    The LNK-IMC1100P60 Series provides media conversion between 10/100BASE-T and 100BASE-FX Fiber. The Ethernet port support 60W high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC1100P60 Series are easy to mount on a DIN rail or in distribution boxes.





    Application



    Ordering Information

    Model

    Description

    LNK-IMC1100P60

    Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Multimode, 1310nm, 2km

    LNK-IMC1100P60-20

    Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km

    LNK-IMC1100P60S-20

    Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km

    Mounting Options

    ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

    Power Options

    75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block

    ► Power Supply is to be purchased separately.

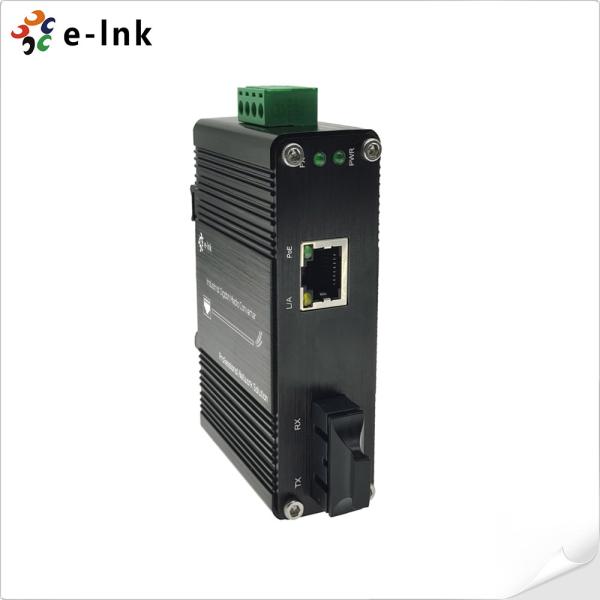

    Quality Mini Industrial 100BASE-FX to 10/100BASE-T 60W PoE++ Media Converter for sale
