| Brand Name : | E-link |
| Model Number : | LNK-IMC1100 Series |
| Certification : | ROHS,FCC,CE,ISO9001 |
| Price : | $39-270 |
| Payment Terms : | L/C,T/T,Western Union,MoneyGram,Paypal |
| Supply Ability : | 1000 pcs/month |
| Delivery Time : | 3-12 working days |
Advantages
>► >1-Port 10/100BASE-T RJ45 with auto MDI/MDI-X function
>► >1-Port 100Base-FX SC
>► >Supports Full/Half-duplex, Auto-negotiation
>► >IEEE 802.3az Energy Efficient Ethernet (EEE)
>► >Extensive LED indicators for network diagnostics
>► >12~48VDC Terminal Block Power Input
>► >Supports DIN-Rail & Wall-mount installation
>► >Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature
Overview

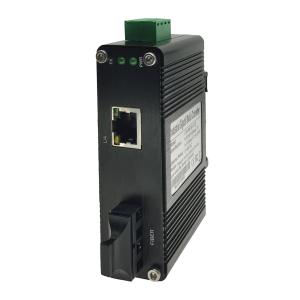

The LNK-IMC1100 Series provides media conversion between 10/100BASE-T and 100BASE-FX Fiber. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC1100 Series are easy to mount on a DIN rail or in distribution boxes.

Application

Ordering Information
Model | Description |
LNK-IMC1100 | Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Multi-mode, 2km, 1310nm, SC |
LNK-IMC1100-20 | Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Single-mode, 20km, 1310nm, SC |
LNK-IMC1100S-20 | Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Single-mode, Single Fiber, 20km, 1310/1550nm, SC |
Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
Power Options | ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
► Power Supply is to be purchased separately. |
|
