    Pad Mounted Electrical Power Transformer Medium Voltage Step Up 500kva Tamper Proof Design

    Ask Lasest Price
    Brand Name : HENTG Power
    Model Number : ZGS
    Price : CN¥16070/units
    Certification : CE
    • Product Details
    • Company Profile

    Pad Mounted Electrical Power Transformer Medium Voltage Step Up 500kva Tamper Proof Design

    500kVA Three-Phase Pad-Mounted Power Transformer
    500kVA Three-Phase Pad-Mounted Transformer
    Product Specifications
    Type
    Distribution Transformer
    Material
    100% Copper Wire
    Frequency
    50Hz, 60Hz
    Phase
    Three
    Input Voltage
    10kV
    Output Voltage
    440V, 480V, 415V, 400V
    Rated Capacity
    400KVA-2000KVA
    Cooling Method
    ONAN ONAF OFAF
    Warranty
    3 Years
    Temperature Rise
    65°
    Technical Parameters of Pad-Mounted Transformer
    Technical Parameters
    Capacity (KVA)HVTapping RangeLVNo-load LossLoad LossImpedanceEfficiency
    752400 4160 7200 7620 12000 12470 13200 13800 14400 19920 24940 34500±2X2.5%110 120 208 240 277 347 415 416 480 600 6901301004.0-6.399.03
    152200180099.16
    225350310099.23
    300430370099.27
    500600541099.35
    750880750099.4
    100010001030099.43

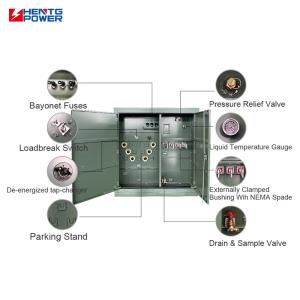

    Transformer Internal Structure
    Product Overview

    The 500kVA Three-Phase Pad-Mounted Transformer is designed for high-efficiency, reliable outdoor power distribution in medium-sized industrial, commercial, and utility applications. With a rugged and weatherproof design, this oil-immersed transformer ensures excellent performance even in harsh environmental conditions. It is tamper-resistant, requires minimal maintenance, and is engineered to deliver consistent, stable power. Perfect for long-term use, this transformer meets international safety and performance standards, providing years of dependable operation in a compact, secure unit.

    Key Features
    • Three-Phase Configuration for balanced and reliable power distribution
    • Pad-Mounted Design ideal for space-saving, outdoor installation
    • Oil-Immersed Cooling ensures efficient heat dissipation for continuous operation
    • Weatherproof Construction withstands outdoor elements and harsh conditions
    • Tamper-Proof Design enhances security and protects internal components
    • Low Noise Operation designed for noise-sensitive environments
    • Long Life & Durability provides consistent performance with minimal maintenance
    • Global Compliance meets ANSI, IEC, and other international standards
    Key Benefits
    • Energy Efficiency: Low operational losses, reducing electricity consumption and operational costs
    • Durability & Longevity: Built with high-quality materials and weather-resistant features for extended service life
    • Quiet & Secure: Low-noise operation with tamper-proof design for sensitive areas
    • Minimal Maintenance: Oil-immersed cooling system reduces service requirements
    • Versatile Voltage Options: Customizable primary and secondary voltage configurations
    • Robust Outdoor Performance: Ideal for severe weather conditions and outdoor environments
    • Compliance with Standards: Meets the highest international standards for safety and reliability
    Applications
    • Industrial Facilities: Powers manufacturing plants, production lines, and heavy machinery
    • Commercial Buildings: Suitable for office complexes, shopping centers, and large retail establishments
    • Utility Substations & Grid Distribution: Supports power distribution networks in urban and rural areas
    • Renewable Energy Projects: Integrates with solar or wind power systems for grid stability
    • Public Infrastructure: Ideal for street lighting, outdoor public facilities, and municipal utility systems
    Our Advantages

    1. Standards-Compliant, Advanced Design
    Designed and manufactured in accordance with all applicable ANSI and DOE 2016 standards for safety, efficiency, and reliability. Compliant with IEEE C57.12.00 standards for typical service conditions.

    2. Wide Range of Voltage and Power Options
    Available in ratings from 30 to 3000 kVA to suit various load requirements. Primary voltages from 2.4 kV to 35 kV (150 kV BIL) and secondary voltages up to 600 V.

    3. Versatile Tap and Configuration Options
    All standard tap configurations available, including dual-voltage combinations and series-only dual voltage. Impedance and loss options available in most designs.

    4. Compact Structure with High Safety
    Pad-mounted design suitable for outdoor use with small footprint and high protection rating. Oil-immersed cooling, 65°C temperature rise, offering excellent thermal performance.
