Three Phase Substation Oil Immersed Transformer Electrical Mv Voltage Transformer 45kVA-300kVA

    Buy cheap Three Phase Substation Oil Immersed Transformer Electrical Mv Voltage Transformer 45kVA-300kVA from wholesalers

    Buy cheap Three Phase Substation Oil Immersed Transformer Electrical Mv Voltage Transformer 45kVA-300kVA from wholesalers
    • Buy cheap Three Phase Substation Oil Immersed Transformer Electrical Mv Voltage Transformer 45kVA-300kVA from wholesalers
    • Buy cheap Three Phase Substation Oil Immersed Transformer Electrical Mv Voltage Transformer 45kVA-300kVA from wholesalers
    • Buy cheap Three Phase Substation Oil Immersed Transformer Electrical Mv Voltage Transformer 45kVA-300kVA from wholesalers

    Three Phase Substation Oil Immersed Transformer Electrical Mv Voltage Transformer 45kVA-300kVA

    Ask Lasest Price
    Brand Name : HENTG Power
    Model Number : ZGS Series
    Price : CN¥53,56-155,27/sets
    Certification : CE
    • Product Details
    • Company Profile

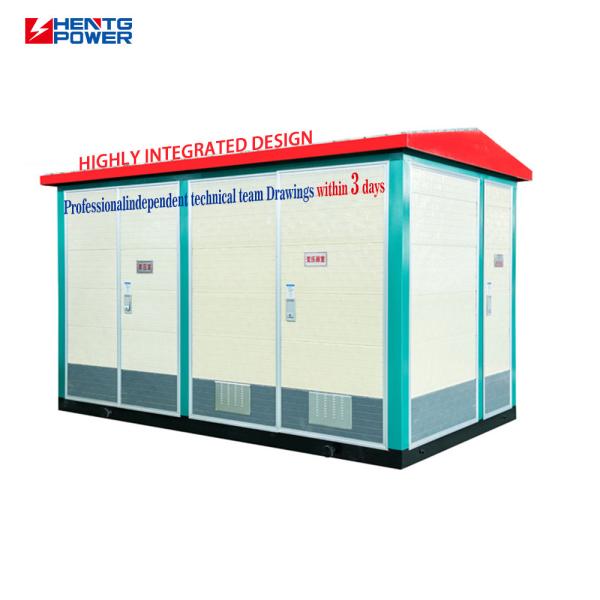

    Three Phase Substation Oil Immersed Transformer Electrical Mv Voltage Transformer 45kVA-300kVA

    Three Phase Substation Oil Immersed Transformer Electrical Mv Voltage Transformer 45kVA-300kVA
    Product Specifications
    AttributeValue
    Frequency50Hz, 60Hz, 60Hz
    PhaseThree
    Coil NumberThree Windings, Multi Winding, Two Windings, Single Winding
    ApplicationDistribution System
    Coil StructureShell-Type Coil, layer coil, fully sealed construction, Disc Coil, round coil
    Output Voltage10kV, 415V, 110V, 380V, 400V, 440V, 480V, 11kV
    Input Voltage10.5kV, 11kV, 12.47kV, 6.6kV, 6.3kV, 6kV, 10kV, 35kV, 69kV, 110kV, 115kV, 132kV
    TypeIsolation Transformer, Voltage Regulator Transformer, AUTOTRANSFORMER, Field Adjustable Transformer, Oil-Immersed Transformer, Dual Winding Transformer, Compact Substation
    Product NameThree Phase Oil Immersed Transformer
    ApplicationPower Distribution System Power Transformer
    Rated Capacity45KVA-300KVA
    Vector GroupDyn11 / Yyn0
    Product Overview

    HENTG Power 30kVA Oil-immersed Transformer 100kVA Electrical Medium Voltage Transformer 200kVA Three Phase Substation

    Integrated Design: All-in-one unit integrating HV switchgear, transformer, and LV cabinet, saving civil work and installation time.

    Technical Specifications
    HV Specifications
    Rated FrequencyHz50
    Rated VoltagekV6 10 35
    Max Working VoltagekV6.9 11.5 40.5
    Industrial Frequency Voltage-resisting TimekV32/36 42/48 95/118
    Thunder and Lighting Ballistic Voltage-resisting TimekV60/70 75/85 185/215
    Rated CurrentA400 630
    Rated Brief-period Current-resistingkA12.5(2s) 16(2s) 20(2s)
    Rated Crest Value Current-resistingkA32.5 40 50
    LV Specifications
    Rated VoltageV380 220
    Rated Current Of Major Return CircuitA100-3200
    Rated short-circuit Current-resistingkA15 30 50
    Rated Crest Value Current-resistingkA30 63 110
    Branch CircuitA10-800
    Quantity Of Branchline1月12日
    Compensation CircuitkVAR0-360
    Transformer Specifications
    Rated CapacitykVA50-2000
    Short-circuit Impendance%4 6
    Scope Of Branch Connection+2x2.5% ±5%
    Vector GroupYyn0 Dyn11
    Our Process
    Step 1: We will respond to your inquiry within 1 hour and recommend suitable transformer according to your needs. At the same time, we will provide you with reasonable quotations and payment terms. We have a professional and independent drawing team and technical team, and we will confirm all the contents on the drawing with you within 7 days after payment. The drawing usually contains technical data, weight and parts list. If you have any questions, please click here to consult.
    Step 2: After designing the production drawing, the factory will prepare the stock, produce, and conduct quality inspection before shipment. If you have special accessory requirements, we can provide you with accessories. Our raw materials are strictly screened. In the quality inspection stage, we will provide you with the dual guarantee of QC report and test report to escort your products.
    Step 3: We have a professional team to guide the installation, and also support on-site installation. We will provide you with more than 2 years of warranty service. Welcome to join us and create a win-win situation. Click here to start our business now.

    If you have any questions, welcome to click here for discussion!

    Our Advantages
    • Professional 30+ senior engineers offer 24 hours online service and response within 30 min.
    • 100000m² factory, 250 workers, 30+ engineers.
    • 4 production lines, 10000+ sets annual production capacity.
    • 100% OQC testing with 25 detection contents.
    • 15 years power transformer designing and production experience.
    • Products comply with GB 20052-2024/ANSI/IEEE/DOE2016/CSA/IEC60076 standard.
    • Cross-industry power transformer solution.
    • Global on-site technical support.
    Frequently Asked Questions
    Q: Who are we?
    HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems.
    Q: How can we guarantee quality?
    Always a pre-production sample before mass production; Always final Inspection before shipment, We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
    Q: Why choose us?
    We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawing with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
    Q: What services can we provide?
    Accept OEM, business payment are negotiated.
