1. Large capacity ODUk electrical cross

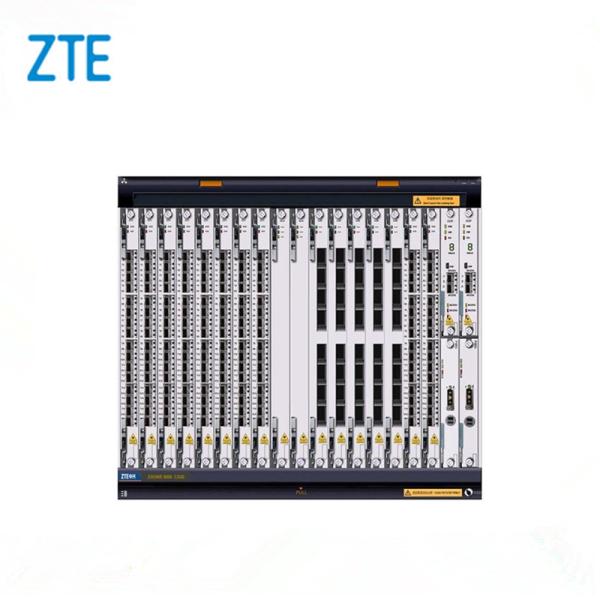

ZXONE 8300 products support 0.8T / 1.6T / 3.2T large-capacity
electrical cross-connect, realize ODU0 / 1/2 / 2e / 3 / flex and
other particles non-blocking electrical cross for network
aggregation, the core node. In this case,
2. Support the complete OTN expenses, the business management is
finer
Industry-wide full support for OTN-based electrical layer, optical
layer overhead detection and processing, the real end-to-end
business management.
Electrical layer, optical layer joint detection, more detailed
business management level, fault location more quickly.
3. A variety of flexible business access
STM-N, FE / GE / 10GE / 40GE, OTU1 / 2/3, DVB, ESCON, FC and so on
to support 100M-40G any service.
Common service access boards, to meet the needs of operators mixed
transmission of a variety of business, effectively reduce the
number of spare parts.
4. Photoelectric hybrid cross, intelligent scheduling
Optical layer support 2-9 dimensional ROADM, realize the wavelength
end to end automatic configuration;
Electric layer through the T-level electrical cross, to achieve
ODUk end-to-end automatic configuration;
Load WASON, realize intelligent control of the optical layer and
electrical plane, shorten service deployment time, provide multiple
recovery paths for critical services, enhance the survivability of
services, and improve the utilization rate of network resources.
5. Perfect clock, time transmission technology
Full support for in-band / out-of-band transmission 1588V2, support
synchronous Ethernet transmission, strong support for 3G and LTE
deployment.
6. Advanced PIC solutions
PIC technology can integrate the key optical devices (lasers,
modulators, detectors, multiplexers, demultiplexers) necessary for
WDM systems onto a single chip, optoelectronic integration
technology to simplify the management of equipment fiber; bulk
expansion, Deploy "zero wait".
Support OTN cross, without any limit plate, the wavelength can be
allocated continuously.
7. Ethernet over OTN
L2 aggregation to provide a flexible bandwidth compression ratio
for low APRU value data services to provide flexible pipeline.
Bypass function, reduce the investment of router port, improve the
efficiency of data transmission, reduce the cost of network
construction.
8. High integration, green energy
A single board can access 2-way 40G services or 8-way 10G services
or 16-channel 2.5G-rate services. The single-subrack supports 3.2T
electrical cross-connect capacity, effectively saving the equipment
room area.
Low power consumption, help operators build green energy-saving
network.
9. High-reliability system architecture
The main control unit, the power module unit, the clock unit
supports redundant 1 +1 hot backup;
The cross unit is equipped with advanced cubic protection (unique
cross plate M: N protection), which greatly improves the safety of
the equipment.
10 carrier-class reliable protection
Optical fiber grade: Line 1 + 1 protection, optical multiplex
section 1 + 1 protection, optical multiplexing section shared
protection;
Optical channel level: optical channel sharing protection, optical
channel 1 + 1 protection;
ODUk level: ODUk 1 + 1 protection, ODUk shared protection;
L2 layer: ESR protection.
