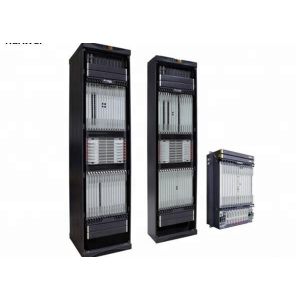

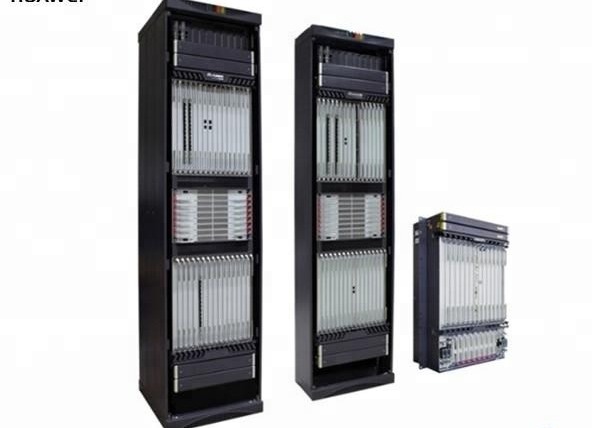

| | OSN 9800 U16 | OSN 9800 U32 | OSN 9800 U64 |
Dimensions (HxWxD) | | 847x442x295mm | 1900×498x295mm | 2200x600x600mm(with cabinet) |
Number of Service Slots | | 14 | 32 | 64 |
| Optical | Up to 20-degree C-D-C-G ROADM | | |
| Electrical | 5.6Tbit/s universal switching | 6.4 /12.8Tbit/s universal switching | 12.8/25.6Tbit/s universal switching |
Number of
Ports | Max OTU4 Ports | 28/56 | 64/128 | 128/256 |
| Max 100GE Ports | 28/56 | 64/128 | 128/256 |
| Max OTU3 Ports | 28 | 64 | 128 |
| Max 40GE Ports | 28 | 64 | 128 |
| Max OTU2 Ports | 280 | 640 | 1280 |
| Max 10G Ports | 280 | 640 | 1280 |
| Max GE/2.5G Ports | 420 | 960 | 1920 |
| Max OTUC2 Ports | 14 | 32 | 64 |
| Max OTUC4 Ports | 7/14 | 16/32 | 32/64 |
Channel Spacing | | 50/100GHz fixed grid for 40/80-ch | | |
| | Flex-grid | | |
Wavelength Range | | DWDM: 1529.16 nm to 1560.61 nm (C Band, ITU-T G.694.1) | | |
Rate per Channel (Max.) | | 100G, 200G, 400G, 1T, 2T | | |
Service Types Supported | | SDH, SONET, Ethernet, SAN, OTN, video | | |
Topology | | Point-to-point, chain, star, ring, ring-with-chain, tangent ring,
intersecting ring and mesh | | |
Redundancy
and Protection | Equipment | 1+1 power input protection, 1+1 fan protection, M:N switch board
protection, 1+1 controller protection | | |
| Network | OTN: Optical line protection, client 1+1 protection, ODUk SNCP,
tributary SNCP, intra-board 1+1
protection,LPT, ASON/GMPLS
PKT: PW APS, Tunnel APS, LAG | | |
Optical Power Management | | ALS, AGC, ALC, APE, IPA | | |
Synchronization | | IEEE 1588v2, Sync-E | | |
| | 2Mbit/s or 2MHz (with the SSM function), ITU-T G.703-compliant
external clock source | | |
| | External clock source (1PPS+TOD) | | |
ASON/GMPLS | | Automatic network discovery | | |
| | ODUk/λ level protection and restoration | | |
| | 5-Level SLA (Service Level Agreement) provisioning | | |
| | End-to-end service configuration | | |
| | Shared Risk Link Group (SRLG) | | |
| | Traffic engineering | | |
T-SDN | | Automation, IP+Optical , BOD | | |
Installation Rack | | ETSI/19 inch rack | ETSI 300/600mm rack | ETSI 600mm rack |
Heat Dissipation | | Fan | | |
Power Supply | | -48VDC/-60VDC | | |
Operation Environment | | Temperature:
Long-term operation: 5°C to 40°C
Short-term operation: -5°C to 45°C | | |
| | Relative humidity:
Long-term operation: 5% to 85%
Short-term operation: 5% to 90% | | |
