    Instrumentation Cable Zr-Djypvp-300/500V 12X2X1.5 mm2

    Ask Lasest Price
    Certification : ISO9001, CE, CCC, VDE
    Supply Ability : 7853km/Week
    • Product Details
    • Company Profile

    Instrumentation Cable Zr-Djypvp-300/500V 12X2X1.5 mm2

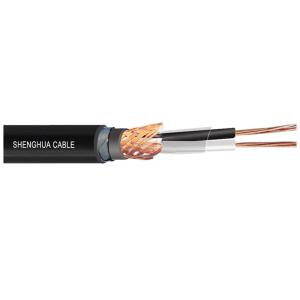

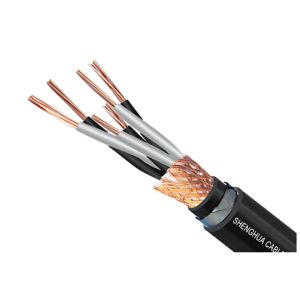

    Instrumentation Cable ZR-DJYPVP-300/500V 12x2x1.5 mm2
    1.Solid Copper Conductor (class1).
    2.PE Insulation.
    3.Copper Wire braid Individual screen.
    4..Copper Wire braid Overall screen.
    5.Flame-retardant PVC outer sheath.
    as per IEC 60332-3:24 Cat C


    Construction
    Model No.: ZC-DJYPVP-300/500V (Sqmm )1x2x1.02x2x1.03x2x1.04x2x1.05x2x1.01x2x1.52x2x1.51x3x1.52x3x1.53x3x1.54x3x1.5
    1Conductor
    MaterialSolid ConductorStranded ConductorSolid Conductor
    TypeClass 1Class 2Class 1
    No./Diameter before stranded1/1.13mm1/1.13mm1/1.13mm1/1.13mm1/1.13mm7/0.52mm7/0.52mm1/1.38mm1/1.38mm1/1.38mm1/1.38mm
    2Insulation
    MaterialPE
    COLOR
    Thickness0.6mm0.6mm0.6mm0.6mm0.6mm0.7mm0.7mm0.7mm0.7mm0.7mm0.7mm
    Minimum Insulation Thickness0.44mm0.44mm0.44mm0.44mm0.44mm0.53mm0.53mm0.53mm0.53mm0.53mm0.53mm
    3Copper Wire Braid Individual Screen
    Material/Copper WireCopper WireCopper WireCopper WireCopper WireCopper Wire/Copper WireCopper WireCopper Wire
    Shielding Braid Density/80% Dia
    0.12mm
    80% Dia
    0.12mm
    80% Dia
    0.12mm
    80% Dia
    0.12mm
    80% Dia
    0.12mm
    80% Dia
    0.12mm
    /80% Dia
    0.12mm
    80% Dia
    0.12mm
    80% Dia
    0.12mm
    4Copper Wire Braid Overall Screen
    MaterialCopper Wire
    Shielding Braid Density80% Dia 0.12mm
    5Overall Sheath
    MaterialFlame-retardant PVC(BLACK)
    Thickness1.2mm1.2mm1.2mm1.2mm1.3mm1.2mm1.2mm1.2mm1.3mm1.3mm1.3mm
    Approx Overall Diameter7.8mm13.7mm14.3mm16mm17.7mm9.0mm16.2mm9.1mm16.6mm17.7mm19.4mm
    Technical Data & Packing
    1Rated voltage300/500V300/500V300/500V300/500V300/500V300/500V300/500V300/500V300/500V300/500V300/500V
    2Testing Voltage(5 minutes)1.5kV1.5kV1.5kV1.5kV1.5kV1.5kV1.5kV1.5kV1.5kV1.5kV1.5kV
    3Max. Resistance of Conductor D.C at 20ºC18.1 Ω/km18.1 Ω/km18.1 Ω/km18.1 Ω/km18.1 Ω/km12.1 Ω/km12.1 Ω/km12.1 Ω/km12.1 Ω/km12.1 Ω/km12.1 Ω/km
    4Approx Weight98kg/km240kg/km300kg/km372kg/km486kg/km119kg/km296kg/km165kg/km423kg/km523kg/km802kg/km
    5Working Temp. of conductor70ºC70ºC70ºC70ºC70ºC70ºC70ºC70ºC70ºC70ºC70ºC
    6Short circuit 5s of conductor(max)160ºC160ºC160ºC160ºC160ºC160ºC160ºC160ºC160ºC160ºC160ºC
    7Min.Installation temp>0ºC>0ºC>0ºC>0ºC>0ºC>0ºC>0ºC>0ºC>0ºC>0ºC>0ºC

    Instrumentation Cable Zr-Djypvp-300/500V 12X2X1.5 mm2Instrumentation Cable Zr-Djypvp-300/500V 12X2X1.5 mm2Instrumentation Cable Zr-Djypvp-300/500V 12X2X1.5 mm2Instrumentation Cable Zr-Djypvp-300/500V 12X2X1.5 mm2
