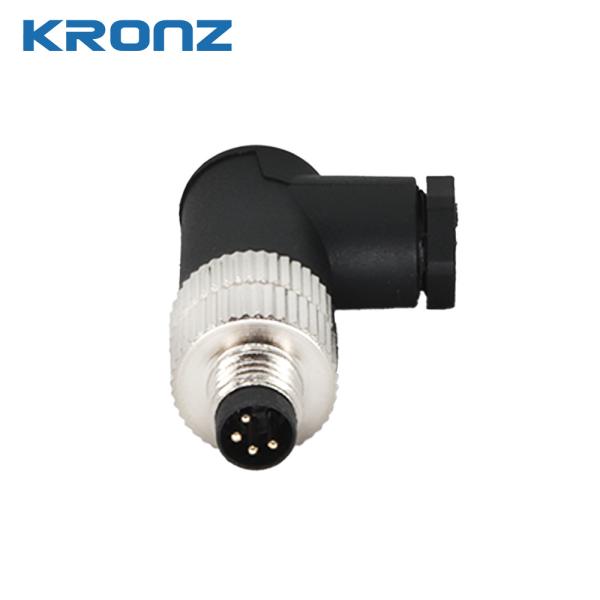

M8 Field-Wireable Assembly Connector IP67 4 Pin A-Coding Male
Angled Sensor Connector
This M8 angled (90°) field-wireable connector is a 4-pin A-coded male plug designed for industrial sensor, actuator, and automation
applications. It complies with IEC 61076-2-104 standards and features a 90-degree cable exit for space-saving installations. The IP67-rated housing ensures protection against dust, water jets, and temporary
immersion, making it ideal for harsh environments.
Features:
- Low-profile design for tight spaces and reduced strain on cables.
- Screw-clamp or spring-cage termination for easy on-site wiring (no
soldering required).
- Supports wire sizes 0.08–1.5 mm² (AWG 28–16).
- Thermoplastic (PBT/PA) or metal (nickel-plated brass) for
durability.
- Integrated strain relief for secure cable retention.
- Standard pinout for sensors, actuators, and industrial I/O
(prevents mismating with B/C/D-coded versions).
- Gold-plated or tin-plated brass for reliable signal/power
transmission.
Product Dimension
Technical Parameters
| Standard | IEC 61076-2-104 |
| Contact nut material | Brass, nickle-plated |
| Contact surface material | Brass, gold-plated |
| Contact carrier material | PA, black |
| Housing material | TPU, black |
| Seal material | FPM/FKM |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Pollution degree | 3 |
| Ambient temperature | -25~+85℃ |
| Mating cycles | >100 |
| Degree of protection | IP67 |
| Pin assignment | Connection method | Coding | Rated current | Voltage | Cable outlet | External cable diameter | Model No. |
 | Screw connection | A | 3A | 60V | Angled | 3.5-5mm | H0804MA-0
|
