    280m Water Well Drilling Rig with 7000-9000Nm Max Torque - Diesel Hydraulic Power

    Ask Lasest Price
    Brand Name : RanCheng
    Model Number : RCF280C
    Certification : CE, ISO 9001:2000
    Price : USD30000-USD40000
    Payment Terms : T/T, Western Union
    Supply Ability : 100sets per Month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    280m Water Well Drilling Rig with 7000-9000Nm Max Torque - Diesel Hydraulic Power

    280m Water Well Drilling Rig Diesel Hydraulic Power For 7000-9000Nm Max Torque Of Rotary


    Product Description


    RCF280C deepwater drilling rig is a product independently developed by our company. This new generation of deepwater (DTH) drilling rig plays a key role in improving drilling speed and gas efficiency.


    The drilling rig adopts the latest model and advanced hydraulic technology, with the characteristics of low energy consumption, high torque, anti-deflection, high-quality materials, smooth and compact shape, higher efficiency, lower failure rate, economical and durable, and high cost performance. Our company's deepwater drilling rig has won wide acclaim in the market and received positive feedback from many customers.


    Technical Parameters


    ModelRCF280C
    Bore diameter(Hammer)100-350mm
    Bore depth280m
    Air consumption17-35m³/min
    Air pressure1.7-3.0Mpa
    Pipe diameter89mm/102mm
    Pipe length3m/6m
    Lifting force18T
    Lifting speed3m/min
    feeding speed0.5-5m/min
    Fast lifting speed30m/min
    Fast feeding speed50m/min
    Max torque of the rotary7000-9000Nm
    Rotary speed40-70r/min
    Hoist lifting capacity2T
    Mud Pump flow450L/min (option)
    High hydraulic leg1.5m
    Feeding efficiency10-35m/h
    Travel speed2.5Km/h
    Climb ability30°
    Dimension(L*W*H)4100×1900×2600mm
    Weight7000Kg
    Diesel engine70KW Yuchai engine

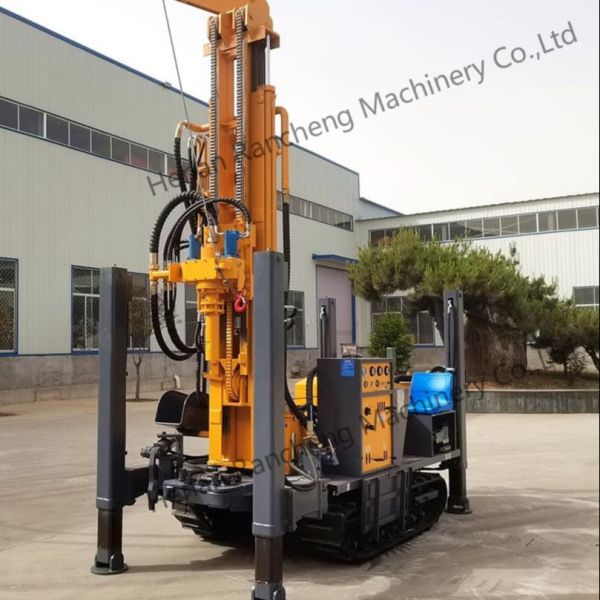

    Machine Picture Display
