| Brand Name : | YDX |
| Model Number : | YDX-FB1 |
| Certification : | CE ISO SGS |
| Price : | $30.00-$65.00 |
| Payment Terms : | T/T |
| Supply Ability : | 10000 tons/month |
| Delivery Time : | 20-30 works days |

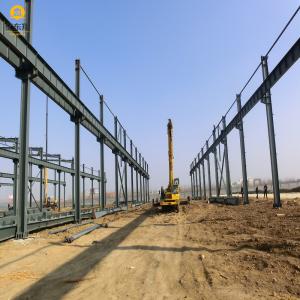

Modular Prefabricated Steel Structure Warehouse High Quality Structural Metal Frame
The stringent state-of-the-art requirements of today's building owners demand that their building system employ not only advanced designs, but also offer flexibility, energy efficiency, and speedy construction times. When a steel building is used, design, fabrication, and construction times are greatly reduced. And future expansion is uncomplicated.
| Product Application | |||
| Light Frame Steel Construction Hangar Design Prefabricated Steel Structure Factory Building Workshop warehouse | |||
| A pre-engineered steel building is a modern technology where the complete designing is done at the factory and the building components are brought to the site and then fixed/jointed at the site, all is bolt connection, no need any welding! | |||
| An efficiently designed pre-engineered building can be lighter than the conventional steel buildings by up to 30%. Lighter weight equates to less steel and potential price savings in structural framework. | |||
| SPECIFICATION FOR STEEL STRUCTURE BUILDING | |||
| Main Steel Frame | Steel Column & Beam | 1. Material: Q345B (S355JR) or Q235B(S235JR)/ Welded/Hot Rolled H section steel | |
| 2. Surface: Hot Dip Galvanized or Painted; | |||
| 3. Connection: All Bolts Connection; | |||
| Supporting System | Roof Purlin | C or Z Section Steel, Q235B | |
| Wall Purlin | C or Z Section Steel, Q235B | ||
| Bracing | Steel Rod, Q235B | ||
| Cross Support | Steel Rod, Q235B | ||
| Column Support | Angle Steel; Steel Rod; Q235B | ||
| Angle Brace | Angle steel,Q235B | ||
| Tie Bar | Steel Pipe,Q235B | ||
| Roof & Wall System | 1. Single Colorful Corrugated Steel Sheet; Thickness: 0.3-0.8mm | ||
| 2. Sandwich Panel with EPS, Rock Wool, Fiberglass,PU; Thickness: 50-150mm; | |||
| Accessories | Door | Sliding; Rolled Up Door (Manual/Auto) | |
| Window | Aluminum Alloy; PVC; | ||
| Downspout | PVC pipe; | ||
| Gutter | Galvanized Steel Sheet; Stainless Steel | ||
| Ventilator | Stainless Steel Turbine Ventilator | ||
| Skylight Belt | FRP or PC semi-transparent Skylight Belt | ||
| Flash | Color Steel Sheet | ||
| Fittings | Anchor Bolt; High Strength Bolt; Standard Bolt, Self-tapping nail etc | ||



Steel Designing & Detailing
Our dedicated engineering department provides complete steel structure design services, including optimization and deepening design. We ensure structural reliability and economy while considering material performance and architectural aesthetics.

Packing & Loading
All structural components, panels, bolts, and accessories are packed to withstand ocean transportation and loaded into 40'HQ containers.

Our Advantages
| 1. Professional Design Team | We provide customized design services based on your requirements or calculate steel quantities from your existing drawings. |
|---|---|
| 2. Skilled Fabrication | Our advanced equipment and trained workforce follow project-specific production schedules with pre-fabrication training. |
| 3. One-Stop Service | We offer complete project solutions with extensive experience in customized steel structure projects. |
| 4. Quality Control | Dedicated QC team ensures products meet all specifications and requirements. |
| 5. After-Sales Service | Comprehensive support including maintenance services for insulation and steel components. |
| 1 | Location (where will be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | anti-earthquake | _____level |
| 6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be
suggested; . if not, the metal steel sheets will be ok. The cost of
the latter will be much lower than that of the former |
| 8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
| 10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
|
