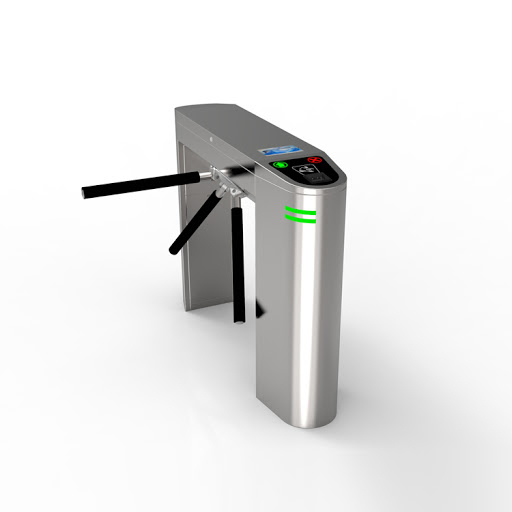

ZT-811A RFID Card Access Control System Tripod Turnstile
Safety that doesn’t slow you down – Zento tripod turnstile gates turn access control into a seamless
experience. Tough enough to block intruders, smooth enough to keep
queues moving. Your perimeter, perfectly protected.
Control without chaos. Zento tripod turnstile gates manage crowds with precision, letting
authorized users through in seconds while standing firm against
unwanted entry. Ideal for high-traffic zones.
Built to last, designed to perform. Zento tripod turnstile gates laugh at wear and tear, thrive in
busy environments, and sync effortlessly with your access tech.
Security that grows with your needs.
No more trade-offs: maximum safety, minimum hassle. Zento tripod turnstile gates
rotate with purpose, ensuring every entry is intentional, every
flow is steady. Your space, under control.
The smart choice for busy spaces. Zento tripod turnstile gates, one mission: to secure access
without slowing it down. Durable, efficient, and ready to integrate
– because safety should never be a hassle.
Parameter
Name | Tripod Turnstile |
Traffic Speed | 30-40 p/m |
Length of Arms | 510-550mm |
Width of Main Body | 1.5mm |
Size | 1200*280*980mm |
Power Supply | AC110~220V±10% |
Material | 304 Stainless Steel |
Production Process | CNC Laser Cutting |
Operating temperature | -30℃-70℃ |
Features:
1. Mechanical drive units lower upkeep costs and do away with the
need for pricey electric motors.
2. To guarantee a longer lifespan and require less upkeep, the lock
system is built around a heavy-duty solenoid.
3. A turnstile can be set up to be uni- or bi-directional.
4. Built-in acrylic or plastic plate for simple gadget
incorporation.
5. The arm will automatically spin to the next inactive position if
it rotates more than half. If the limb rotates only partially, it
will return to the existing idle location automatically.
6. An adjustable tension spring that is built into the arm to
regulate the amount of auto-rotation and limit it.
7. DC functioning; built-in circuit breaker for overload
protection.
8. Preventing gathering. Limit switch is used by the smart lock
mechanism to sense rotation and successfully re-lock back. after
one individual has passed. Support for time delays of 5, 10, 15,
and 60 seconds is also available.
9. In the event of a power outage, the arm will automatically lower
to enable unrestricted passage.
10. To prevent meddling, internal components of the housing are
secured with a key.
11. Directional LED built into the device.
12. Even the elderly or small toddlers can use the turnstile after
it has been unlocked because all that is needed to spin the arm is
a gentle shove.
Application:
Bridge Tripod Turnstiles have a wide range of applications across
different industries and environments. Here are some common
applications:
Office Buildings: Bridge Tripod Turnstiles are frequently used in
office buildings to control access to entrances, lobbies, and
restricted areas within the premises. They provide a secure and
organized means of managing employee and visitor traffic.
Transportation Hubs: Train stations, bus terminals, and airports – where high
pedestrian flow needs orderly management.
Commercial Buildings: Office lobbies, shopping malls, and business centers – to control
access to restricted areas.
Public Venues: Stadiums, exhibition halls, and parks – ensuring only ticket
holders or authorized personnel enter.
Industrial Facilities: Factories, warehouses, and logistics centers – safeguarding
valuable assets and restricting unauthorized entry.
Educational Institutions: Schools, universities, and research campuses – managing student,
staff, and visitor access.
Key Advantages for Tripod Turnstile with These Spaces
Controlled Crowd Flow: Prevents stampedes or chaotic entry in busy areas like
transportation hubs and stadiums, maintaining order even during
peak hours.
Enhanced Security: Blocks unauthorized access effectively, critical for industrial
facilities with sensitive equipment or commercial buildings with
confidential zones.
Efficient Access: Rapid rotation minimizes waiting times, ideal for high-traffic
spots such as office lobbies and shopping malls where speed
matters.
Durability: Withstands heavy daily use in public venues and industrial
settings, reducing maintenance needs and long-term costs.
Easy Integration: Tripod turnstile works seamlessly with access systems (e.g., RFID
cards, biometrics) in educational institutions and commercial
buildings, simplifying access management.
