| Brand Name : | Sinoseen |

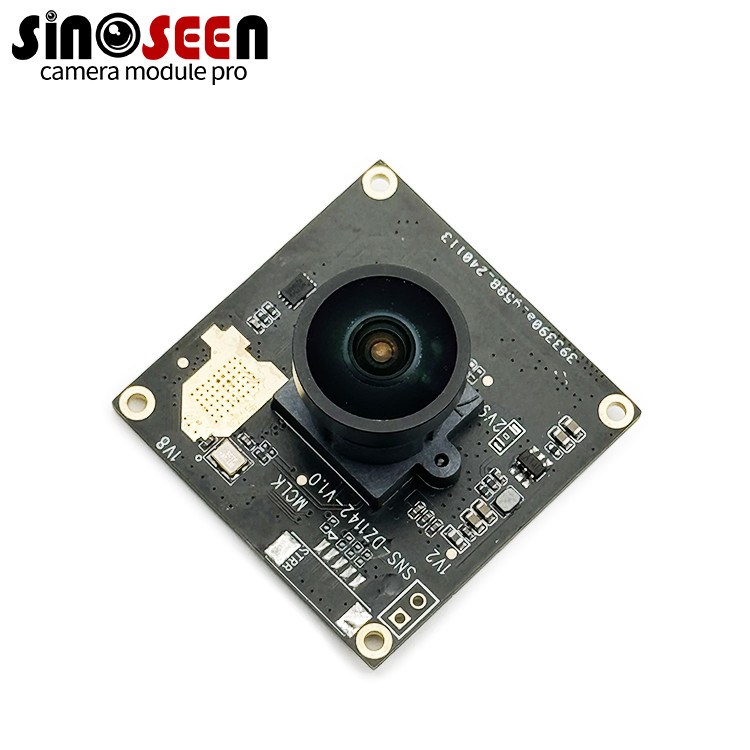

| Model Number : | SNS-DZ1142-V1.0 |
| Certification : | RoHS |
| Price : | negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 500000 pieces/month |
| Delivery Time : | 2-3week |
| Signal | SNS-DZ1142-V1.0 | REMARKS | |
| Image Sensor Size(图像感光尺寸) | 1/2.8”CMOS | ||
| Effective Pixels(有效像素) | 1920*1080 | ||
| Pixel size(像素点大小) | 2.9um*2.9um | ||
| Optical distortion(畸变) | <-1% | ||
| Image sensor Data output(数据输出类型) | Raw Data 10bits | ||
| Video output(输出格式) | MPJG/YUV | ||
Maximum Frame Rates(分辨率和帧率) | 1920*1080 30FPS 1280*960 30FPS 1280*720 30FPS 1024*768 30FPS 800*600 30FPS 640*480 30FPS 320*240 30FPS | MJPG | |
| SNR max(信噪比) | TBD | ||
| Dynamic range(动态范围) | TBD | ||
| Min. Illumination(最低照度) | TBD | ||
| Digital interface(连接接口) | 5pin 1.25mm USB2.0 | 线长1.5米 | |
| Transfer rates(接口速度) | 480MB/S | ||
| Power requirements(电源) | 5V±5% | ||
| Storage temperature储藏温度 | -20℃to70℃ | ||
| operating temperature 工作温度 | -30℃to70℃ | ||
| Power Consumption (功率) | NO LED | / | |
| IR-LED | / | ||
| PCB printig ink | black | ||
| OS(支持系统) | Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC ) | ||
| Lens view (默认镜头) | M12*P0.5 | LENS | |
| Lens Construction 镜头结构 | 4G | ||
| F/NO光圈 | 2.0±5% | ||
| EFL 有效焦距 | 3.0 mm±5% | ||
| FOV 角度 | D:96°±3° | ||
| 对焦方式 | 手动 | ||
| 拍摄距离 | 60cm-∞ | ||

|
