    EN10216-5 6mm Boiler Heat Exchanger Tube Bundle PMI Testing

    Ask Lasest Price
    Brand Name : YUHONG
    Model Number : Seamless tube
    Certification : ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
    Price : 1 - 10000 USD
    Payment Terms : L/C,T/T
    Supply Ability : 10000 Tons/Month
    Delivery Time : 5 - 60 Days
    • Product Details
    • Company Profile

    EN10216-5 6mm Boiler Heat Exchanger Tube Bundle PMI Testing

    Heat Exchanger Tube EN10216-5 1.4541 Stainless Steel Tube For Chemical Processing
    Product Specifications
    AttributeValue
    Material1.4541
    StandardEN10216-5
    EndsPE, BE
    TestingUT, ET, HT, PMI
    SizeOD: 6mm~50.8mm, WT: 0.5mm~15mm, L: Max:34m/pc
    ApplicationHeat Exchanger, Cooling, Heating, Condenser, Tube Bundle
    Product Description

    The EN10216-5 1.4541 Stainless Steel Heat Exchanger Tube is engineered for high-temperature applications, delivering exceptional corrosion resistance and thermal stability. This austenitic stainless steel (equivalent to AISI 321) is titanium-stabilized to prevent carbide precipitation, making it ideal for demanding chemical processing environments.

    Grade 1.4541 contains chromium (17-19%) and nickel (9-12%) with titanium additives for enhanced stability. It offers superior resistance to various corrosive conditions, particularly intergranular corrosion. Manufactured to EN10216-5 standards, these seamless pressure tubes meet rigorous quality requirements for safety and performance.

    Chemical Composition
    GradeCrNiTiC
    1.454117.0-19.0%9.0-12.0%≥ 5x C content≤ 0.08%
    Mechanical Properties
    GradeTensile StrengthYield StrengthElongationHardness
    1.4541≥ 210 MPa (30 ksi)≥ 520 MPa (75 ksi)≥ 35% in 50 mmTypically ≤ 95 HRB
    Key Features
    • Optimized Material Composition: Chromium (17-19%), nickel (9-12%), and titanium for enhanced stabilization
    • Superior Corrosion Resistance: Excellent resistance to intergranular corrosion, especially in welded applications
    • High-Temperature Performance: Maintains stability in elevated temperature environments
    • Exceptional Durability: Withstands thermal cycling and mechanical stress while maintaining structural integrity
    Industrial Applications
    • Chemical Processing: Reactors, heat exchangers, and equipment handling corrosive chemicals
    • Oil & Gas: Offshore platforms, refineries, and petrochemical facilities for heat exchangers and piping
    • Power Generation: Heat exchangers in high-temperature, high-pressure power plant environments
    • Food & Beverage: Pasteurization and sterilization equipment requiring hygienic properties
    • Pharmaceuticals: Processes demanding high cleanliness standards and corrosion resistance
    • Marine Engineering: Components exposed to seawater and aggressive marine conditions
    • Aerospace: Aircraft components requiring oxidation resistance at elevated temperatures

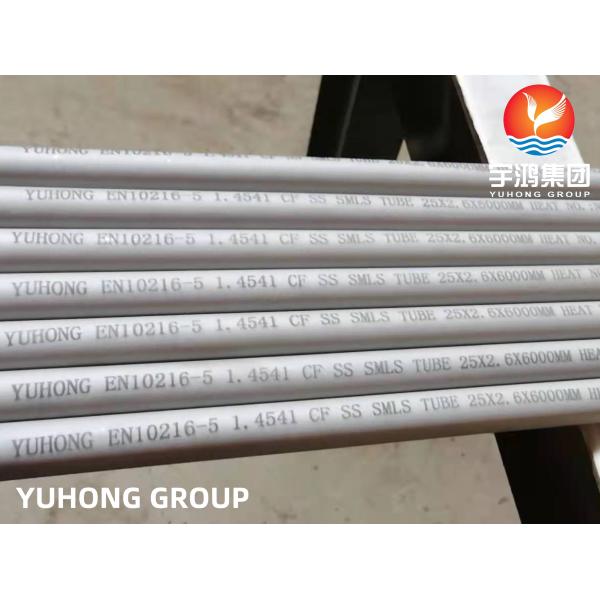

    EN10216-5 1.4541 Stainless Steel Heat Exchanger Tubes for industrial applications
