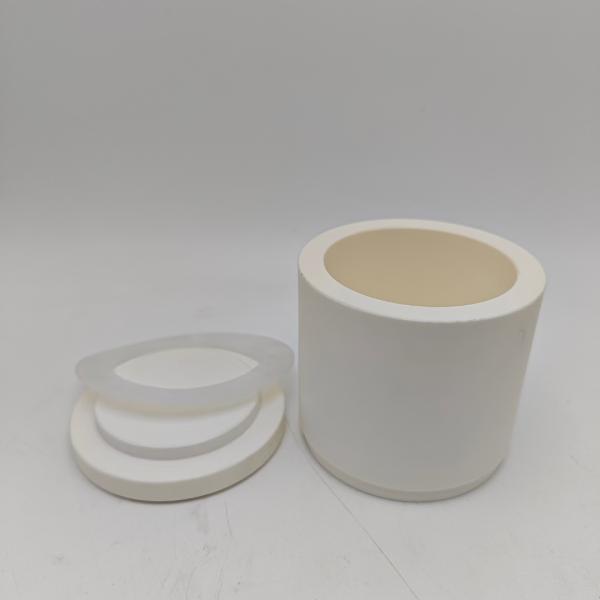

Yttria-Stabilized Zirconia (YSZ) Grinding Jar – Premium Product Description
Ultra-Precision Milling Solution for Demanding Applications
Technical Superiority
- Material Composition: 3mol% or 5mol% yttria-stabilized zirconia (3YSZ/5YSZ)
- Crystal Structure: Fully stabilized cubic phase for maximum fracture toughness
- Density: ≥6.05 g/cm³ (near-theoretical density)
- Hardness: 1,200-1,300 HV (Vickers)
- Fracture Toughness: 5-7 MPa·m¹/² (superior to alumina)
Unmatched Performance Characteristics
-
Extreme Wear Resistance
-
15-20× longer service life than alumina counterparts
-
<0.01% weight loss after 500 hours continuous milling
-
Ideal for processing hard materials (SiC, WC, Al₂O₃)
-
Absolute Chemical Purity
-
99.95% purity grade available
-
<1ppm metallic contamination
-
USP Class VI compliant for pharmaceutical applications
-
Thermal Stability
-
Continuous use up to 800°C
-
Peak resistance to 1,550°C
-
Near-zero thermal expansion (10.5×10⁻⁶/°C)
Precision Engineering Features
Technical Specifications Table
| Parameter | 3YSZ Standard | 5YSZ Premium | Notes |
| Density | 6.02 g/cm³ | 6.08 g/cm³ | Measured by Archimedes |
| Flexural Strength | 900 MPa | 1,100 MPa | 3-point bend test |
| Thermal Conductivity | 2.5 W/mK | 2.3 W/mK | 25°C measurement |
| Ionic Conductivity | 0.12 S/cm | 0.15 S/cm | 800°C measurement |
| CTE (25-800°C) | 10.8×10⁻⁶/°C | 10.3×10⁻⁶/°C | - |
Specialized Applications
-
Energy Materials: Solid oxide fuel cells, lithium battery cathodes
-
Biomedical: Dental ceramics, orthopedic implant materials
-
Advanced Optics: Transparent ceramic precursors
-
Semiconductor: Wafer polishing slurries
-
Structural Ceramics: ZTA, silicon nitride composites
Customization Options
-
Geometry Configurations:
-
Special Features:
-
Integrated cooling channels
-
RFID tagging for traceability
-
Transparent YSZ windows (for process monitoring)
-
Certifications:
Quality Assurance
-
100% ultrasonic inspection for microcracks
-
Lot-traceable material certificates
-
XRD phase analysis reports included
-
Optional HIP treatment for maximum density
Operational Guidelines
-
Recommended Media: Matching YSZ grinding balls
-
Max Speed: 650 RPM (planetary), 1,200 RPM (vibratory)
-
Loading Capacity: 30-35% volume for optimal efficiency
-
Cleaning Protocol: HNO₃/HF solution for complete decontamination
Lead Time: Within 7days for standard sizes, 5-7weeks for custom configurations
Industry-Leading Warranty: 5-year structural integrity guarantee
Contact our materials engineers for application-specific recommendations and performance simulations
