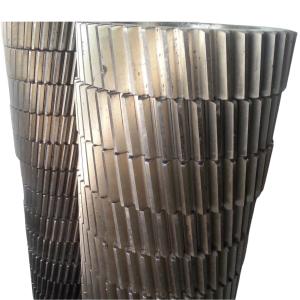

Optimize Performance with Advanced Single Helical Gear for Customized Applications

1) Description of Helical Gear

A helical gear is a transmission gear whose key dimensions, such as module, number of teeth, and helix angle,

are determined through parametric design according to operating conditions (such as load, rotational speed, and gear ratio).

2) Feature of Helical Gear
a) High design flexibility, allowing for adaptation to different working conditions by adjusting parameters such as the helix angle and tooth width.

b) The profile shifting modification technology can be applied to optimize the tooth surface contact strength and bending strength.

c) Compared with spur gears, it can achieve a larger gear ratio under the same center distance, simplifying the structural design.

​3) Working Principle of Helical Gear

By accurately calculating the tooth surface contact stress and tooth root bending stress, and combining with

the allowable values of materials, it ensures the safe operation of the gear under rated operating conditions and avoids fatigue failure.

4) Application of Helical Gear

It is used in application fields with high requirements for customized design, such as robotic joint transmission mechanisms,

medical device transmission systems, and electric vehicle reducers.

YIZHI MACHINERY which is equipped with a full range of machining capabilities to satisfy customer needs.

Our team has extensive experience in precision gearing systems for numerous industries. We have supplied gears for mining equipment, power tools, hydraulic pumps and the rail transit industry.

The feature products are double helical gear and precision spiral bevel gear, equipped with Hofler Rapid and helix grinding machines, Niles ZE and ZP grinding machines and Gleason Phoenix bevel gear grinding machines. This capability allows us to provide quality customs made gears to domestic and overseas markets.
