1 Product parameters

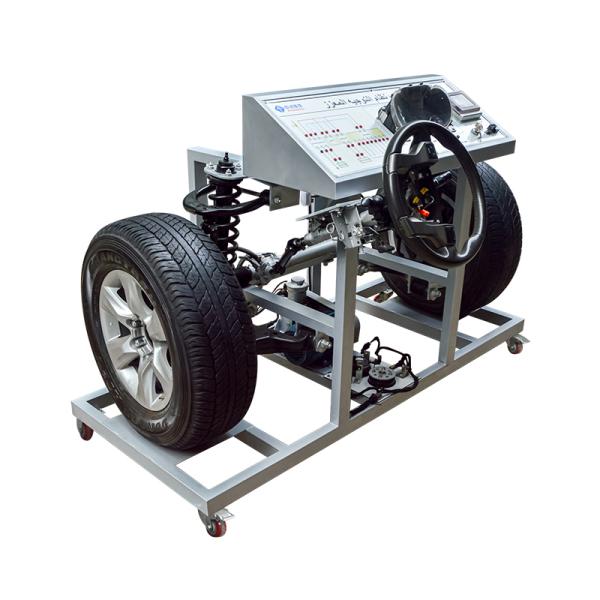

Product name Automotive electric power steering system teaching
board
Product size 1800×1200×1600mm(L×W×H)
Weight about 200kg
Power supply voltage AC220V
2 Technical specifications
(1) Product introduction
This equipment adopts Toyota Land Cruiser electric power steering
system in kind as the basis, can completely restore the working
state of the car steering system, easy to operate, safe and
reliable. It is suitable for teaching needs of electric power
steering system and maintenance practical training in middle and
higher vocational and technical colleges, general education
colleges and training institutions.
(2) Structural composition.
Original front axle, original steering machine, combined
instrumentation, steering power motor, front suspension, front
wheel tires, steering wheel and steering universal joint, movable
table, universal casters with locking, etc.
(3) Functional features
1. Real runnable car electronically controlled power steering
system, fully demonstrate the composition of the structure of the
electronically controlled power steering system.
2. Adjust the speed output simulation knob, simulate the change of
speed from low to high, turn the steering wheel left and right, and
fully demonstrate the working process of electronically controlled
power steering.
3. The training table panel is installed with detection terminals,
which can directly detect the electrical signals of the electric
control power steering system circuit components on the panel, such
as resistance, voltage, current, frequency signals, etc.
4. The training table panel adopts 4mm thickness of high-strength
aluminum composite board UV painting, with a large temperature
difference, wear-resistant, moisture-proof, anti-corrosion, not
easy to deformation, long service life, bright colors, not easy to
fade and other characteristics.
5. The training table is made of high-quality steel welding, with
high strength, corrosion resistance, long life, etc., after
spraying process, beautiful and high-grade appearance, the table
frame with self-locking casters device, mobile and flexible, safe,
reliable, durable.
6, the work of the teaching board using ordinary 220V AC power
supply, converted into 12V DC power supply by internal circuit
voltage rectification, 12V DC power supply with anti-short-circuit
function.
7, equipped with fault setting and assessment system.
