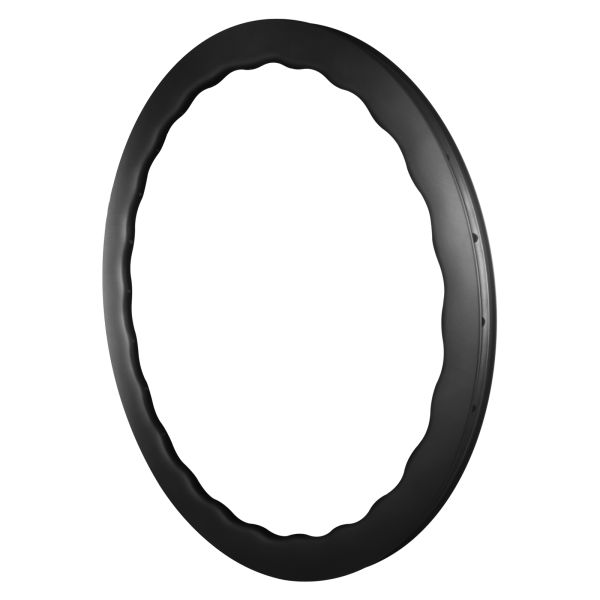

Carbon road bike rim Disc brake rims are 22mm internal width , all
these rims are clincher/ tubeless compatible, depths: 5045mm .
On the two most popular sizes/depths 5045mm, we offered both
symmetrical edition. 2 years warranty for all these rims!
The rim is made of T700 and T800 carbon cloth by hand, and is
formed by automatic mechanical processing with an integrated
process of hot pressing.
The physical property test of the rim shall be subject to the
latest ISO/EU standards.
5045mm ERD: 542mm
WEIGHT: 450g±15(50MM)
MATERIAL:Carbon
RIM DIAMETER:700C(ETRTO 622mm)
RIM HEIGHT:5045mm
INNER WIDTH:22 mm
OUTER WIDTH:28 mm
BRAKE INTERFACE:Disc brake
SPOKE HOLE:Front/Rear 24h
TUBELESS: Compatible
DECAL TYPE:UD
Max Cyclist Weight (on flat ground):145kgs
Spoke Hole Angle ±9.5°
Spoke Tension 110~130kgf (recommended)
Tire Pressure 125psi / 8.62bar (recommended max)
Tire Size 23C ~ 32C (recommended)
Warranty 2 years
