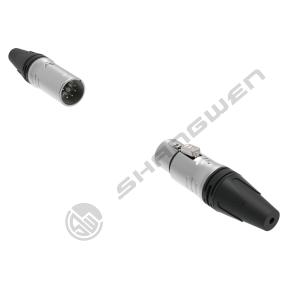

| Brand Name : | SHANGWEN |
| Model Number : | SWF7X-3TSN-KN |
| Price : | CN¥6.85-18.55/pieces |



Connection Type | XLR |
Gender | female |
Capacitance between contacts | ≤7pF |
Contact resistance | ≤3mΩ |
Dielectric strength | 1.5kVdc |
Insulation resistance | > 1.5GΩ (initial) |
Rated current per contact | 7.5A |
Rated voltage | <50V |
Sign Cable O.D. | 3.5-8mm |
Insertion force | ≤ 40N |
Withdrawal force | ≤ 40N |
Service life | >1000 mating cycles |
Wire size | Max. 1.0 mm² |
Wire size | Max. 18 AWG |
Locking device | Latch lock |
Boot | TPU |
Contacts | Cu alloy |
Contact plating | Au |
Insert | Polyamide (PA 66 +30 % GF) |
Shell | Zinc diecast (ZnAl4Cu1) |
Shell plating | Cr Black |
Strain relief | Polyacetal (POM) |
Flame-retardant grade | UL 94 HB |
Protection class | IP40 |
Temperature range | -20℃to +80℃ |










|
