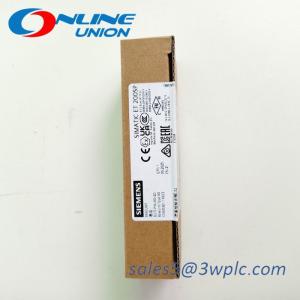

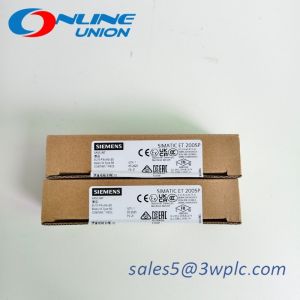

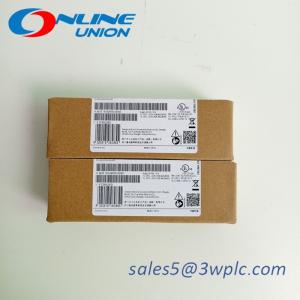

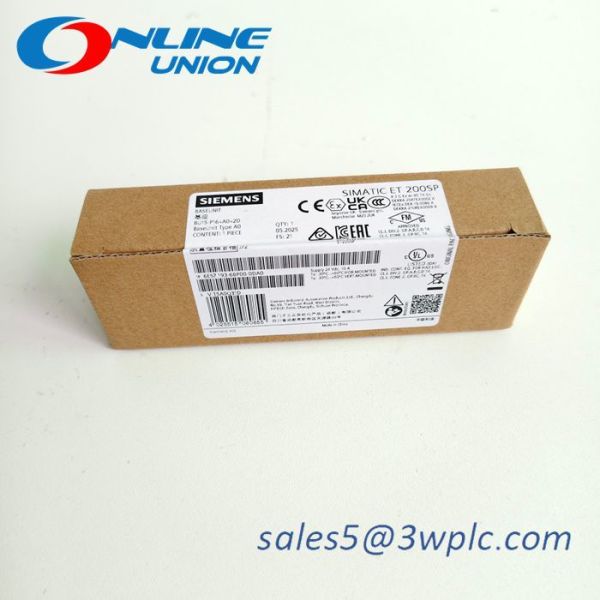

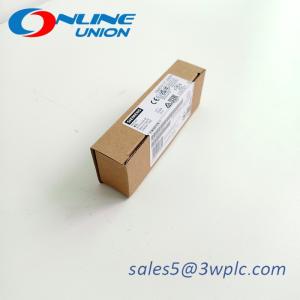

SIEMENS 6ES7193-6BP00-0DA0 Bus Adapter Module
Product Description:
The 6ES7193-6BP00-0DA0 is a bus adapter module from Siemens'
SIMATIC ET 200 series, designed for industrial automation systems.
It is commonly used in distributed I/O systems to enable
communication between programmable logic controllers (PLCs) and
field devices via PROFIBUS or PROFINET protocols. Below is a
detailed description and technical specifications based on Siemens'
standard product documentation.
Technical Specifications:
| Category | Specification |
|---|
| Model Number | 6ES7193-6BP00-0DA0 |
| Type | PROFIBUS DP Bus Adapter Module |
| Communication Interface | - PROFIBUS DP Master/Slave Interface<br>- Baud Rate: Up to 12
Mbit/s |
| Power Supply | - 24V DC via backplane bus |
| Current Consumption | - Approx. 150 mA at 5V DC (from backplane) |
| Physical Design | - Module Width: 25 mm<br>- DIN rail mounting (standard for ET
200 systems) |
| Operating Temperature | - 0°C to 60°C (standard industrial range) |
| Storage Temperature | - -40°C to +70°C |
| Humidity | - Max 95% RH (non-condensing) |
| Standards Compliance | - EN 61131-2, IEC 61000-6-2 (EMC Immunity), UL认证 |
| Dimensions | - 25 mm (W) × 90 mm (H) × 60 mm (D) |
| Weight | - Approx. 80 grams |
Key Features:
Feature | Description |
|---|
Communication Protocol | - PROFIBUS DP (Decentralized Periphery) for high-speed fieldbus
communication. |
Compatibility | - Works with SIMATIC S7-300/400 PLCs and ET 200 distributed I/O
systems. |
Hot-Swapping Support | - Allows module replacement without shutting down the system
(requires ET 200M). |
Diagnostics | - Integrated LED indicators for status and error monitoring. |
Power Supply | - 24V DC (standard industrial voltage) via backplane bus. |
Environmental Durability | - Designed for industrial environments (wide temperature range,
vibration resistance). |
Applications:
Industrial Automation Systems:
Connects distributed I/O modules (e.g., digital/analog modules,
motor starters) to a central PLC in production lines, assembly
systems, or process plants.
PROFIBUS Networks:
Used in factories for real-time communication between PLCs and
field devices (sensors, actuators).
Modular Control Cabinets:
Integrated into ET 200S/ET 200M systems for flexible and scalable
automation solutions.
High-Speed Machinery:
Enables fast data exchange in applications requiring rapid response
times (e.g., packaging machines, conveyor systems).
Notes:
Model Verification:
Confirm exact specifications with Siemens' official documentation
(e.g., datasheet, manual).
Compatibility:
Ensure compatibility with the PLC and distributed I/O system (e.g.,
ET 200S vs. ET 200M).
Firmware Updates:
Use Siemens' SIMATIC Manager or TIA Portal for firmware upgrades.
Our Services:
1.All our products are new and orginal, and of good quality
2.Our prices are very competitive.
3.We have a large quantity in stock, so we could help the customers
to get the components which are dificult to get.
4.All inquiries will be valued and will reply in 24.
Packing & Delivery:
1.100% brand New and Original Factory Seal!
2.Warranty:1 year
3.Package: Original packing with cartons.
4.Delivery time: Shipped in 3-7 days after payment
5.All the goods will be tested before shipment
