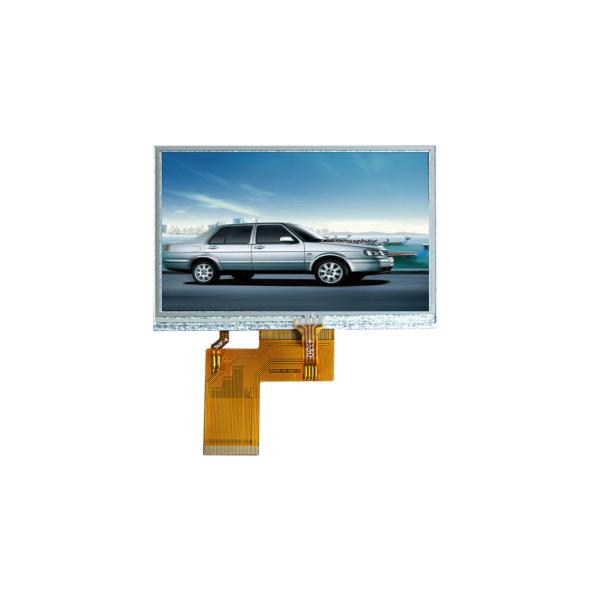

    4.3 inch TFT LCD Display with high brightness lcd module

    Ask Lasest Price
    Brand Name : HETECH
    Model Number : HC043TE78040-B80
    Certification : ISO9001,ISO14001,ISO13485,IATF16949
    Payment Terms : T/T
    Supply Ability : 50K/month
    Delivery Time : 4-6weeks
    • Product Details
    • Company Profile

    4.3 inch TFT LCD Display with high brightness lcd module

    4.3 inch TFT LCD with 40pinRGB interface and 70/70/50/70 viewing angle


    Product Description:


    HC043TE78040-B80 is a 4.3-inch TFT LCD module. It adopts TN technology engineered with the advantages of high precision and fast response. Its resolution of 480*272 and contrast ratio of 500:1 endow the display with clear and vivid visuals. Its 780 nits brightness makes it well-suited for everyday tasks and not inferior to other displays in terms of color performance. This display is equipped with an interface of 40-pin RGB that meets most users’ requirements for the signal transmission and color reproduction. Also, it possess the active area of 95.04mm*53.856mm, and outline dimension of 105.5mm*67.2mm*4mm which make it suitable for inspection camera industrial endoscope, mini game console.


    General Specification:

    P/N
    HC043TE78040-B80
    Size4.3inch
    Display type
    Normally White, Transmissive
    Resolution480*272
    Outline Dimension(mm)105.5(W )*67.2(H)*4.05(T)mm
    Active Area(mm)95.04(W)*53.856(H)mm
    Brightness(cd/m²)780
    Viewing Angle(L/R/T/B)70/70/50/70
    Interface40pinRGB
    Operation Temperature-20~70℃
    Storge Temperature-30~80℃
    Aspect ratio16:9
    Contrast ratio780
    Applicationinspection camera industrial endoscope, mini game console


    Pin assignment:

    Electrical Characteristics


    ItemSymbolMINTYPMAXUNITTest Condition
    Supply VoltageVf-25.6-VIf=40mA
    Supply CurrentIf-40-mA-
    Life Time-20000--hrsIf=40mA


    Product drawings:



    4-4.3inch lcd display series:



    4-4.3inch LCD Display Sizes


    Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc.
    No.SizePart No.LCD typeResolutionOutline dimensionActive areaInterfaceContrast ratioBrightnessOperation temperatureStorage temperature
    14"HC040I*30021-C82IPS480*48074.66*76.54*2.15mm71.856*70.176mm40pinRGB800300-20~70℃-30~80℃
    24"HC041IXA5030-F77IPS1280*640106.9*61.9*2.9mm92.544*46.272mm40pinRGB15001500-40~105℃-40~105℃
    34"HC040I*30021-C82V.CIPS480*48086*86*37.5mm71.856*70.176mm40pinRGB800250-20~70℃-30~80℃
    44.3"HC043TE20029-B58TN480*272105.5*67.2*2.9mm95.04*53.856mm40pinRGB500200-20~70℃-30~70℃
    54.3"HC043IG30029-D92IPS800*480105.5*67.2*2.9mm95.04*53.86mm12pinSPI1200300-20~70℃-30~80℃
    64.3"HC043IG30029-D92V.1IPS800*480105.5*67.2*4.05mm95.04 ×53.856mm12pinSPI500280-20~70℃-30-80℃
    74.3"HC043TE20029-B55TN480*272105.5*67.2*2.9mm95.04*53.86mm40pinRGB500200-20~70℃-30-80℃
    84.3"HC043TE30029-B03V01TN480*272105.5*67.2*2.9mm95.04*53.86mm40pinRGB500300-20~70℃-30-80℃
    94.3"HC043TE30029-B03V.CTN480*272105.5*67.2*4.5mm95.04×53.856mm40pinRGB500300-20~70℃-30-80℃
    104.3"HC043TE45031-B03TN480*272105.5*67.2*2.9mm95.04*53.86mm40pinRGB500450-20~70℃-30-80℃
    114.3"HC043TE50029-B03TN480*272105.5*67.2*2.9mm95.04*53.86mm40pinRGB500500-20~70℃-30-80℃
    124.3"HC043TE50029-B03V02TN480*272105.5*67.2*2.9mm95.04*53.86mm40pinRGB500500-20~70℃-30-80℃
    134.3"HC043TE80031-B80TN480*272105.5*67.2*2.9mm95.04*53.86mm40pinRGB500800-20~70℃-30-80℃
    144.3"HC043TE78040-B80TN480*272105.5*67.2*4.0mm95.04*53.868mm40pinRGB500780-20~70℃-30-80℃
    154.3"HC043IE30031-B80IPS480*272105.5*67.2*3.0mm95.04*53.856mm40pinRGB800300-20~70℃-30-80℃
    164.3"HC043TE30040-B80V.1TN480*272105.5*67.2*4.05mm95.04×53.856mm40pinRGB500200-20~70℃-20~70℃
    174.3"HC043TE40040-A46V.1TN480*272104.7×66.4×4mm95.04×53.856mm40pinRGB500400-20~70℃--20~70℃
    184.3"HC043IG80030-B56IPS800*480105.5*67.2*3.0mm95.04*53.856mm40pinRGB800800-20~70℃-30~80℃
    194.3"HC043IE40029-F47IPS480*272105.5*67.2*2.9mm95.04*53.86mm40pinRGB800400-20~70℃-30~80℃
    204.3"HC043IE50029-D65IPS480*272105.5*67.2*2.9mm95.04*53.86mm40pinRGB800500-20~70℃-30~80℃
    214.3"HC043IE50029-D65V.CIPS480*272105.5*67.2*4.35mm95.04*53.86mm40pinRGB800450-20~70℃-30~80℃
    224.3"HC043IEA0029-B03HIPS480*272105.5*67.2*2.9mm95.04*53.86mm40pinRGB8001000-30~85℃-30~85℃
    234.3"HC043IG50029-D20IPS800*480105.5*67.2*2.9mm95.04*53.86mm40pinRGB1200500-20~70℃-30~80℃
    244.3"HC043IGA0029-D20HIPS800*480105.5*67.2*2.9mm95.04*53.86mm40pinRGB12001000-30~85℃-30~85℃


    Customization:



    FAQ:
    Q1. Can I have a sample order for LCD Display
    A: Yes, we welcome sample order to test and check quality
    Q2. What about the lead time?
    A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
    Q3. How do you ship the goods and how long does it take to arrive?
    A: Ship by DHL, UPS, FedEx.
    Q4. How to proceed an order for LCD Display?
    A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.
    Q5: Do you offer guarantee for the products?
    A: Yes, we offer 1 years warranty to our products.
    Q6: How to deal with the faulty?
    A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
    B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
    If there are special conditions, the warranty time will be separately notified.
