Dust-proof Linear Modules for PCB Belt Series Ultra Long Stroke Expansion and 204N Freeze Thrust

    Buy cheap Dust-proof Linear Modules for PCB Belt Series Ultra Long Stroke Expansion and 204N Freeze Thrust from wholesalers

    Buy cheap Dust-proof Linear Modules for PCB Belt Series Ultra Long Stroke Expansion and 204N Freeze Thrust from wholesalers
    • Buy cheap Dust-proof Linear Modules for PCB Belt Series Ultra Long Stroke Expansion and 204N Freeze Thrust from wholesalers
    • Buy cheap Dust-proof Linear Modules for PCB Belt Series Ultra Long Stroke Expansion and 204N Freeze Thrust from wholesalers
    • Buy cheap Dust-proof Linear Modules for PCB Belt Series Ultra Long Stroke Expansion and 204N Freeze Thrust from wholesalers
    • Buy cheap Dust-proof Linear Modules for PCB Belt Series Ultra Long Stroke Expansion and 204N Freeze Thrust from wholesalers

    Dust-proof Linear Modules for PCB Belt Series Ultra Long Stroke Expansion and 204N Freeze Thrust

    Ask Lasest Price
    Brand Name : SXEGL
    Model Number : PCB
    Certification : CE/FCC/EPA/ROSH/ISO
    Price : 400-3000
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability : Worldwide delivery
    Delivery Time : 7-14
    • Product Details
    • Company Profile

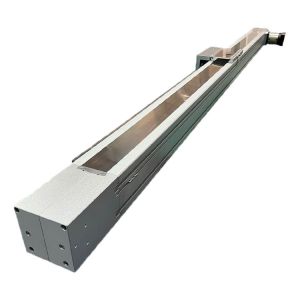

    Dust-proof Linear Modules for PCB Belt Series Ultra Long Stroke Expansion and 204N Freeze Thrust

    Dust proof PCB belt series linear modules supporting ultra long stroke expansion
    The scope of application of PCB belt series linear modules includes workpiece transfer devices in production lines, adhesive film cutting devices, transfer devices between CNC machining machines, and more. The applicable industries cover TFT-LCD liquid crystal panel equipment, solar energy equipment, food packaging equipment, and CNC machining equipment. The types of PCB belts include cleanroom belts and rubber belts.
    Synchronous belt drive has obvious advantages: it adopts PM-type high-tension toothed belts with a transmission efficiency of 98%, and the maximum linear speed can reach 2m/s (compared to only 1m/s for traditional screw slides). Paired with lightweight aluminum alloy sliders, the dynamic response time is shortened to 0.4s, which can significantly improve sorting and handling efficiency.
    In terms of stroke expansion, its standard stroke ranges from 50mm to 3500mm. Ultra-long stroke extension can be achieved through guide rail splicing technology, without worrying about the critical speed limitation of traditional screws. It is particularly suitable for long-distance operation scenarios such as logistics conveyor lines and three-dimensional warehouse shuttle cars.
    Basic specifications PCB17
    SpecificationRepetitive positioning accuracy±0.08
    Lead mm40
    Maximum speed mm/s2000



    Freeze thrust(N)204
    Standard stroke mm20-3050mm/50 interval
    Max load (kg)Horizontal45
    Vertical-
    ComponentAC servo motor capacity400
    Belt width30
    High rigidity linear sliderW20×H15
    Origin sensor plug-inPM-T45(NPN)

    Contact us for complete product information.
