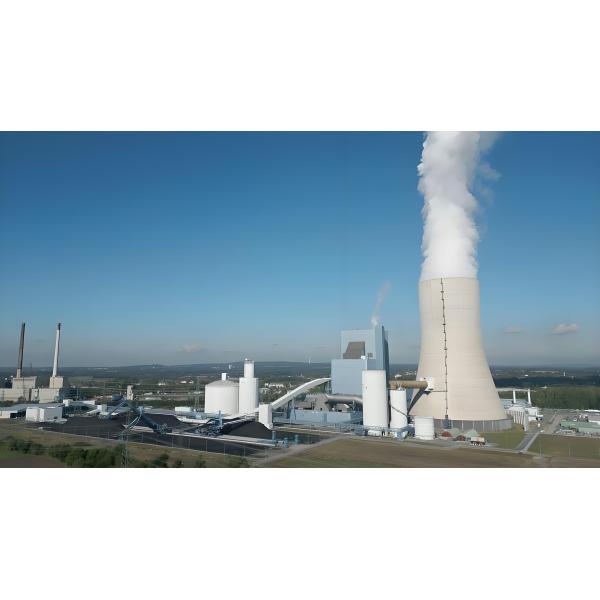

Roots Blower Used in Power Industry Flue Gas Desulfurization Plant
Product Introduction
The performance tables provide the blower's model number, bore,
rotational speed (r.p.m), discharge pressure, air capacity, and
required power.
The air capacity in the tables is indicated in the standard suction
state.The standard suction state herein mentioned is defined as the
condition at 20℃ temperature, 1.0332Kgf/cm2 (101.3KPa) absolute pressure and 65% relative humidity.
The reference air capacity (temperature 0℃ and 1.0332kgf/cm2 (101.3kpa) absolute pressure) is generally indicated in Nm3/min.
However, it may be converted into the standard air capacity by the
following equation, if the suction pressure is equal.
Qs = QNx1.0732
Where, Qs: standard air capacity (m3/min); and
QN: reference air capacity (m3/min).
The discharge air capacity can be converted into the standard air
capacity by the following equation.
Qs = Qdx (1.0332+Pd)/ 1.0332x(273+Ts)/(273 + Td)
Where, Qd : discharge air capacity, in m3/min;
Pd : discharge pressure, in Kgf/cm2,
Ts : suction temperature, in ℃,
Td : discharge temperature, in ℃.
Based on the air capacity and discharge pressure calculated as
above, the performance table lists the model, bore, r.p.m., and
required power.
Sl Units Conversion Table ( Sl Units in Heavy Lines )
| Pressure | Pa | Bar | Kgf/cm2 | atm | mmH2O | MmHg(Torr) |
1
1×105
9.806 65×104
1.013 25×105
9.806 65
1.333 22×102 | 1×105
1
9.806 6525×10-1
1.013 25
9.806 6525×10-5
1.333 2225×10-3 | 1.019 72×10-5
1.019 72
1
1.033 23
1×10-4
1.359 51×10-3 | 9.869 23×10-6
9.869 23×10-1
9.678 41×10-1
1
9.678 41×10-5
1.315 79×10-3 | 1.019 72×10-1
1.019 72×104
1×104
1.033 23×104
1
1.359 51×10 | 7.500 62×10-5
7.500 62×102
7.355 59×102
7.600 00×102
7.355 59×10-2
1 |
|
|
|
|
|
Product Specification
Mark
Type | Bore | A | B | C | D | E | F | G | H | J |
| SR-50 | 50A | 570 | 179 | 135 | 895 | 152 | 230 | 540 | 420 | 60 |
| SR-65 | 65A | 610 | 202 | 145 | 970 | 192 | 230 | 600 | 440 | 80 |
| SR-80 | 80A | 700 | 225 | 165 | 1130 | 217 | 280 | 650 | 500 | 75 |
| SR-100 | 100A | 900 | 265 | 175 | 1255 | 234 | 280 | 850 | 630 | 110 |
| SR-125 | 125A | 945 | 294 | 205 | 1525 | 260 | 355 | 920 | 710 | 105 |
| SR-150 | 150A | 1155 | 377 | 225 | 1745 | 305 | 400 | 1150 | 950 | 100 |
| SR-175 | 200A | 1300 | 457 | 245 | 1765 | 305 | 520 | 1330 | 1030 | 150 |
| SR-200 | 200A | 1570 | 550 | 276 | 2230 | 405 | 591 | 1600 | 1300 | 150 |
| SR-250 | 250A | 1847 | 596 | 445 | 2790 | 520 | 760 | 2200 | 1800 | 2300 |
| SR-300 | 300A | 2167 | 683 | 470 | 2805 | 520 | 750 | 2500 | 2040 | 230 |
Mark
Type | Bore | K | L | M | N | O | P | Q | R | n-Φ1 | Weight |
| SR-50 | 50A | ― | ― | 260 | 220 | 122 | 20 | 80 | 60 | 4-Φ14 | 72 |
| SR-65 | 65A | ― | ― | 300 | 260 | 122 | 20 | 80 | 80 | 4-Φ14 | 84 |
| SR-80 | 80A | ― | ― | 370 | 330 | 147 | 20 | 80 | 75 | 4-Φ19 | 132 |
| SR-100 | 100A | ― | ― | 400 | 360 | 114 | 20 | 80 | 110 | 4-Φ19 | 168 |
| SR-125 | 125A | 355 | 355 | 430 | 390 | 175 | 20 | 100 | 105 | 6-Φ19 | 245 |
| SR-150 | 150A | 475 | 475 | 500 | 455 | 190 | 22.5 | 100 | 165 | 6-Φ19 | 408 |
| SR-175 | 200A | 515 | 515 | 500 | 455 | 310 | 22.5 | 100 | 240 | 6-Φ19 | 505 |
| SR-200 | 200A | 650 | 650 | 650 | 605 | 348 | 22.5 | 126 | 240 | 6-Φ19 | 900 |
| SR-250 | 250A | 900 | 900 | 950 | 870 | 250 | 40 | 140 | 250 | 6-Φ24 | 1653 |
| SR-300 | 300A | 1020 | 1020 | 950 | 870 | 240 | 40 | 140 | 270 | 6-Φ24 | 2132 |
Product Show
Our Service
Powered by a highly skilled team of engineers and technicians with
decades of hands-on experience, we develop customized Roots blower
solutions that precisely fit your operational demands. Our
specialists deliver complete support—from system design and
commissioning to routine maintenance and performance
upgrades—ensuring smooth integration with your workflow.
We take pride in our robust engineering approach, employing
cutting-edge manufacturing techniques and stringent testing
protocols to ensure outstanding performance, extended lifespan, and
energy-saving operation. Every Roots blower is subjected to
exhaustive quality inspections to meet global standards, helping
you minimize unplanned downtime and maximize output.
Aware that industrial facilities operate 24/7, we provide emergency
services around the clock for urgent technical issues. Our
dedicated support team remains on constant alert, offering remote
troubleshooting, immediate on-site repairs, and rapid spare parts
delivery to maintain uninterrupted production.
With our expert team, proven technology, and nonstop service, we
are dedicated to becoming your long-term reliability partner,
delivering efficiency, durability, and operational confidence.
