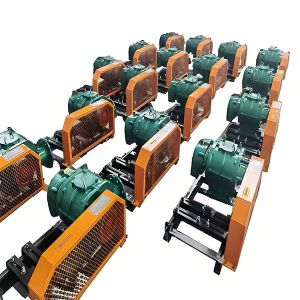

High Efficiency Dust Removal Blower for Chemical Powder Handling
Plant
Product Introduction
Performance tables include technical specifications such as model
number, bore size, operating speed, discharge pressure, airflow
capacity, and power consumption for each blower.
The air capacity in the tables is indicated in the standard suction
state.The standard suction state herein mentioned is defined as the
condition at 20℃ temperature, 1.0332Kgf/cm2 (101.3KPa) absolute pressure and 65% relative humidity.
The reference air capacity (temperature 0℃ and 1.0332kgf/cm2 (101.3kpa) absolute pressure) is generally indicated in Nm3/min.
However, it may be converted into the standard air capacity by the
following equation, if the suction pressure is equal.
Qs = QNx1.0732
Where, Qs: standard air capacity (m3/min); and
QN: reference air capacity (m3/min).
The discharge air capacity can be converted into the standard air
capacity by the following equation.
Qs = Qdx (1.0332+Pd)/ 1.0332x(273+Ts)/(273 + Td)
Where, Qd : discharge air capacity, in m3/min;
Pd : discharge pressure, in Kgf/cm2,
Ts : suction temperature, in ℃,
Td : discharge temperature, in ℃.
Based on the air capacity and discharge pressure calculated as
above, the performance table specifies the model, bore, r.p.m., and
required power.
Sl Units Conversion Table ( Sl Units in Heavy Lines )
| Pressure | Pa | Bar | Kgf/cm2 | atm | mmH2O | MmHg(Torr) |
1
1×105
9.806 65×104
1.013 25×105
9.806 65
1.333 22×102 | 1×105
1
9.806 6525×10-1
1.013 25
9.806 6525×10-5
1.333 2225×10-3 | 1.019 72×10-5
1.019 72
1
1.033 23
1×10-4
1.359 51×10-3 | 9.869 23×10-6
9.869 23×10-1
9.678 41×10-1
1
9.678 41×10-5
1.315 79×10-3 | 1.019 72×10-1
1.019 72×104
1×104
1.033 23×104
1
1.359 51×10 | 7.500 62×10-5
7.500 62×102
7.355 59×102
7.600 00×102
7.355 59×10-2
1 |
|
|
|
|
|
Product Specification
Mark
Type | Bore | A | B | C | D | E | F | G | H | J |
| SR-50 | 50A | 570 | 179 | 135 | 895 | 152 | 230 | 540 | 420 | 60 |
| SR-65 | 65A | 610 | 202 | 145 | 970 | 192 | 230 | 600 | 440 | 80 |
| SR-80 | 80A | 700 | 225 | 165 | 1130 | 217 | 280 | 650 | 500 | 75 |
| SR-100 | 100A | 900 | 265 | 175 | 1255 | 234 | 280 | 850 | 630 | 110 |
| SR-125 | 125A | 945 | 294 | 205 | 1525 | 260 | 355 | 920 | 710 | 105 |
| SR-150 | 150A | 1155 | 377 | 225 | 1745 | 305 | 400 | 1150 | 950 | 100 |
| SR-175 | 200A | 1300 | 457 | 245 | 1765 | 305 | 520 | 1330 | 1030 | 150 |
| SR-200 | 200A | 1570 | 550 | 276 | 2230 | 405 | 591 | 1600 | 1300 | 150 |
| SR-250 | 250A | 1847 | 596 | 445 | 2790 | 520 | 760 | 2200 | 1800 | 2300 |
| SR-300 | 300A | 2167 | 683 | 470 | 2805 | 520 | 750 | 2500 | 2040 | 230 |
Mark
Type | Bore | K | L | M | N | O | P | Q | R | n-Φ1 | Weight |
| SR-50 | 50A | ― | ― | 260 | 220 | 122 | 20 | 80 | 60 | 4-Φ14 | 72 |
| SR-65 | 65A | ― | ― | 300 | 260 | 122 | 20 | 80 | 80 | 4-Φ14 | 84 |
| SR-80 | 80A | ― | ― | 370 | 330 | 147 | 20 | 80 | 75 | 4-Φ19 | 132 |
| SR-100 | 100A | ― | ― | 400 | 360 | 114 | 20 | 80 | 110 | 4-Φ19 | 168 |
| SR-125 | 125A | 355 | 355 | 430 | 390 | 175 | 20 | 100 | 105 | 6-Φ19 | 245 |
| SR-150 | 150A | 475 | 475 | 500 | 455 | 190 | 22.5 | 100 | 165 | 6-Φ19 | 408 |
| SR-175 | 200A | 515 | 515 | 500 | 455 | 310 | 22.5 | 100 | 240 | 6-Φ19 | 505 |
| SR-200 | 200A | 650 | 650 | 650 | 605 | 348 | 22.5 | 126 | 240 | 6-Φ19 | 900 |
| SR-250 | 250A | 900 | 900 | 950 | 870 | 250 | 40 | 140 | 250 | 6-Φ24 | 1653 |
| SR-300 | 300A | 1020 | 1020 | 950 | 870 | 240 | 40 | 140 | 270 | 6-Φ24 | 2132 |
