All in One Holistic Air Suspension Blower for Food Processing Plant
Product Introduction
The product's cross-section reveals key components. Stator and
rotor constitute the core, with an air bearing facilitating
frictionless rotation. A thrust bearing manages axial loads. An
impeller links to the rotor, cooperating with the volute to guide
fluid. Efficiency-focused design minimizes friction via air
bearings.
Product Specification
| Details | ST10 | ST20 | ST30 | ST50 | ST75 | ST100 | ST125 | ST150 | ST200 | ST250 | ST300 | ST350 | ST400 | ST500 | ST600 | Cooling Method |
| Type | SINGLE GRADE | | DOUBLE GRADE | |
| Discharge Pressure(KPA) | Air Flow(M3/MIN):LATM/20℃,65%Relative Humidity, Density=1.2KG/M3/Tolerance | Air Cooling |
| 40 | 10 | 18 | | | | | | | | | | | | | |
| 60 | 7.5 | 15 | 20 | 34 | 51 | 69 | 82 | 105 | 140 | 175 | 210 | | 280 | 345 | 420 |
| 70 | | 13 | 18 | 30 | 45 | 60 | 74 | 90 | 120 | 150 | 180 | | 240 | 300 | 360 |
| 80 | | 12 | 17 | 28 | 42 | 54 | 70 | 84 | 109 | 135 | 164 | | 218 | 270 | 328 |
| 90 | | | | | 37 | 50 | 61 | 71 | 92 | | 140 | | 184 | | |
| 100 | | | | | 34 | 45 | 55 | 67 | 87 | | 133 | | | 230 | 260 |
| 150 | | | | | | 32 | 48 | 60 | 69 | 81 | 121 | 125 | | | |
| 200 | | | | | | | | 56 | 65 | 71 | | 85 | | | | Water Cooling |
| 300 | | | | | | | | | | | 105 | 79 | | | |
| 350 | | | | | | 20 | | | 37 | | | 72 | | | |
| 400 | | | | | | | | | 25 | | | 65 | | | |
| Motor Power(KW) | 7.5 | 15 | 22 | 37 | 55 | 75 | 90 | 110 | 150 | 185 | 220 | 250 | 300 | 375 | 450 | |
| Discharge Pipe(KW) | 80 | 100 | 150 | 150 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
| Size(MM) | Width | 800 | 800 | 800 | 800 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1200 | 1300 | 1300 | 1300 | 1300 |
| Length | 1250 | 1250 | 1250 | 1250 | 1620 | 1620 | 1620 | 1620 | 1620 | 1620 | 2200 | 2700 | 2700 | 2700 | 2700 |
| Height | 970 | 970 | 970 | 970 | 1525 | 1525 | 1525 | 1525 | 1525 | 1525 | 1916 | 2115 | 2115 | 2115 | 2115 |
| Weight | 680 | 680 | 680 | 750 | 800 | 960 | 960 | 1050 | 1050 | 1100 | 1320 | 1580 | 1580 | 1800 | 1800 |

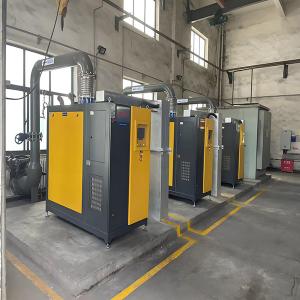

Product Show
Payment Methods
T/T,L/C,West Union,Alibaba Trade Insurance,AliPay
Products Advantages
- High-efficiency & energy-saving design with average electricity
savings exceeding 30%—Saves >30% electricity compared to
traditional Roots blowers.
- Fully Enclosed Casing, Low Noise & Vibration-Free—Noise levels
<80 dB, zero vibration, Eliminates the need for foundations or
anchor bolts.
- IOT Smart Control & Efficient Air Energy Management—Intuitive
touchscreen with 5 operating modes and 5-layer protection for
intelligent, user-friendly operation.
- Oil-Free & Maintenance-Free, Semi-Permanent Lifespan—Advanced
magnetic bearing technology ensures 20+ years of service with no
efficiency degradation over time.
- Compact & Easy Installation—Highly integrated design, Compact,
lightweight, and portable for flexible deployment.
Applications
- Wastewater Treatment Plant
- Cement Plant
- Steel Mill
- Chemical Powder Handling Plant
- Flue Gas Desulfurization Plant
- Electroplating Plant
- Sandblasting Facility
- Electronics Manufacturing Plant
- Food Processing Plant
- Pharmaceutical Manufacturing Plant
- Paper Mill
- Textile Mill
- Dyeing and Printing Plant
FAQ
Q1: What factors will you need to match the products?
Pressure & Flow Volume
Q2: What is the production time?
Normally one week after receiving your payment.
Q3: What is your minimum order quantity?
MOQ 1 set.
Q4: Are you a manufacturer?
Yes.
Q5: Which delivery methods can you support?
By air, sea, land, rail, express like DHL, UPS, FEDEX.
