| Brand Name : | AIRSUSTECH |
| Model Number : | 1B7731 |
| Certification : | ISO/TS16949:2009 |
| Price : | Negotiable |
| Payment Terms : | T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram |
| Supply Ability : | 1000pcs/week |
| Delivery Time : | 3-8 Working Days |

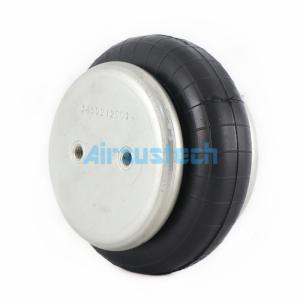

578-92-0-075 Single Convoluted Rubber Air Spring by Goodyear Steel Cover Plate
OEM Original Manufacturer
| Manufacturer | Cross References |
| AIRSUSTECH | 1B7731 |
| Goodyear | 578-92-0-075, 578920075, 578 92 0 075 |
| Goodyear | 1B6-051, 1B6051, 1B6 051, 1B 6-051, 1B 6051, 1B 6 051 |
| Firestone | W01-358-7731, W013587731, W01 358 7731 WO1-358-7731, WO13587731, WO1 358 7731 |
| Firestone | W01-358-7001, W013587001, W01 358 7001 WO1-358-7001, WO13587001, WO1 358 7001 |
1B7731 Air Bag Specifications
Diameter of the Top Cover Plate: 115 mm
Center-to-Center Distance of Screws on the Top Cover Plate: 44.5 mm
Diameter of the Bottom Cover Plate: 115 mm
Center-to-Center Distance of Screws on the Bottom Cover Plate: 44.5
mm
Screw (Nut) Thread Count for the Top Cover Plate: 2×3/8-16UNC
Screw (Nut) Thread Count for the Bottom Cover Plate: 2×3/8-16UNC
Air Inlet: 1/4NPTF
Max Diameter of the Rubber Bellow: 165 mm
Maximum Height: 115 mm
Minimum Height: 50 mm
AIRSUSTECH Air Actuators: Engineered for Strength, Precision & Longevity
1. Superior Construction for Unmatched Reliability
Crimped Assembly Technology – Ensures robust structural
integrity, enabling the actuator to withstand high operational
demands over extended service life.
Zinc-Plated Steel End Plates – Crimped and corrosion-resistant
for superior durability in harsh environments.
2. High-Performance Natural Rubber Convoluted Bellow
Optimized Dynamic Response – Made with premium natural rubber
for exceptional flexibility, fatigue resistance, and long-term
reliability.
Wide Application Range – Ideal for vibration isolation,
precision positioning, and heavy-duty actuation across industries.
3. Key Performance Advantages
Exceptional Dynamic Capability – Delivers rapid response and
adaptability under varying loads and conditions.
Universal Compatibility – Adapts seamlessly to diverse
operational requirements with consistent, high-efficiency
performance.
AIRSUSTECH Single Convoluted Air Bags Cross References
| AIRSUSTECH Order No. | Cross References |
| 1B130070 | Contitech FS 50-5 |
| 1B6910 | Contitech FS 200-10 |
| 1B1209 | Phoenix SP 1 B 07 |
| 1B5330 | Firestone W01-358-7008 |
| 1B8×4 | Firestone W01-358-7564 |

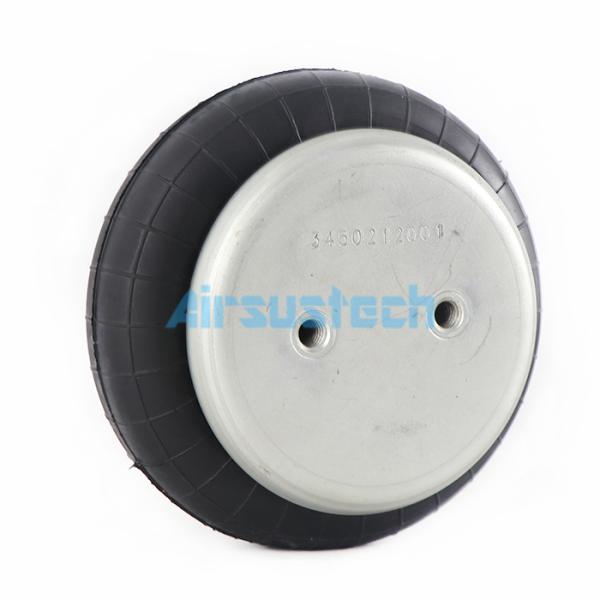

The Real Pictures of 1B7731
