    Continental Seat Rubber Air Spring SK37-6P02 1/8NPT Air Shock Suspension Spring

    Continental Seat Rubber Air Spring SK37-6P02 1/8NPT Air Shock Suspension Spring


    Product Specification

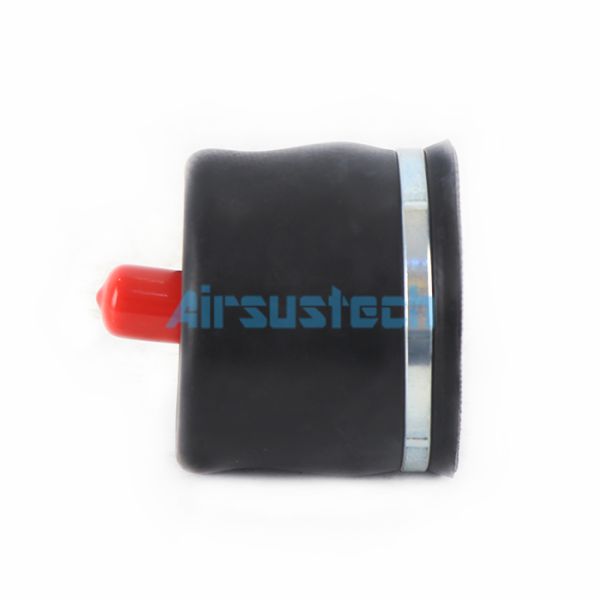

    • The AIRSUSTECH G3014 sleeve type air spring is manufactured from high-quality natural rubber, featuring a minimum height of 1.5 inches and a maximum height of 3.3 inches, delivering a total stroke of 1.8 inches. The bottom plate diameter measures 2.99 inches, while the top plate width is 2.40 inches.
    • For pneumatic connection, the G3014 is equipped with a 1/8NPT port and 5/8-11UNC mounting threads, secured with 5/16-18UNC screws. When pressurized to 0.7 MPa, the maximum outer diameter reaches 3.46 inches, requiring an installation space of 3.94 inches.
    • The AIRSUSTECH G3014 rubber cab air bag is fully interchangeable with the following industry-standard models: Goodyear 1S3-013, Firestone W02-358-3000, Firestone W02-358-3001, Prevost 950208, ContiTech SK37-6P02, Endyne Bellow TI-1S3-013.
    • This air spring is engineered for durability, precision performance, and seamless compatibility across major OEM specifications.

    Cross-Reference Compatibility


    Continental ContiTech: SK37-6P02

    Continental ContiTech: SK376P02

    Continental ContiTech: SK37 6P02

    Goodyear Air Bellow: 1S3-013

    Goodyear Air Bellow: 1S3 013

    Goodyear Air Bellow: 1S3013

    Firestone Air Spring: W02-358-3000

    Firestone Air Spring: W023583000

    Firestone Air Spring: W02 358 3000

    Firestone Air Spring: W02-358-3001

    Firestone Air Spring: W023583001

    Firestone Air Spring: W02 358 3001

    Prevost Air Actuator: 950208

    Endyne Air Suspension: TI-1S3-013

    Endyne Air Suspension: TI1S3013

    Endyne Air Suspension: TI 1S3 013


    Product Technical Parameters


    Vibration isolation - dynamic characteristics values

    Pressure P [psi]406080100120Vol. V[l]
    Force (Load) [lbf]2313274395536779.15
    Spring Rate [lbf/in.]174241312378441
    Natural Frequency [Hz]2.82.72.72.62.6

    Pneumatic application - static characteristic values

    Pressure p[psi]406080100120Vol.[l]
    Height H [in.]3.018026234743151912
    2.52113194295376479.8
    2.02263414565746917.3
    1.52383584775987184.9

    We Have Other Sleeve Type Pneumatic Air Actuators


    Part NumberPiston NumberCross Reference
    1S3-011ASB-06-7-014FIRESTONE W02-358-4001
    LES AUTOBUS G5006637
    LINK CAB&SEAT SPRINGS 1101-0001
    NOVABUS N12687
    PREVOST 95-0208
    1S3-013ASB-06-7-017FIRESTONE W02-358-3000
    FIRESTONE W02-358-3001
    PREVOST 950208
    1S4-007ASC-08-7-139CONTI 67770
    CONTI SC29-0001
    FIRESTONE W02-358-7001
    FIRESTONE W02-358-7002
    FIRESTONE W02-358-7031
    1S4-008ASC-08-7-005FIRESTONE W02-358-7010
    LINK CAB&SEAT SPRINGS 1101-0021
    Mac-k truck TRUCK 227QS39301
    1S4-016ASC-08-7-137INT'L/NAVISTAR 1680378c1
    1S4-030ASC-08-7-093FREIGHTLINER 20-12461
    1S4-035ASC-08-7-163CONTI 62844
    CONTI SZ70-5060P02
    FIRESTONE W02-358-7003
    FIRESTONE W02-358-7050
    FIRESTONE W02-358-7055
    1S4-042ASC-08-7-219VOL-VO 66003-0007
    1S4-044ASC-08-7-194CONTI 62561
    CONTI SZ70-5067
    LINK CAB&SEAT SPRINGS 1101-0023
    1S4-056ASC-08-7-194FIRESTONE W02-358-7040
    LINK CAB&SEAT SPRINGS 1101-0024
    1S4-058ASC-08-7-139CONTI 67858
    CONTI SC29-0086
    FIRESTONE W02-358-7086
    1S4-067ASC-08-7-137FIRESTONE W02-358-7007
    Mac-k truck TRUCK 227QS34B
    1S4-074ASC-08-7-134VOL-VO 66003-3201
    1S4-123ASC-08-7-157CONTI 67769
    CONTI SC29-0046
    CONTI SZ70-5060P02
    FIRESTONE W02-358-7046
    1S4-175ASC-08-7-157CONTI 67858
    CONTI SZ29-0086
    LINK CAB&SEAT SPRINGS 1101-0025
    1S4-187579-08-1-049DANA/SPICER SR1VA103
