    Portable Site Accommodation Prefabricated Modular Labor Flat Pack Container Cabin

    Ask Lasest Price
    Brand Name : KXD
    Model Number : KXD-D01
    Certification : ISO/BV/GB/SGS
    Price : usd 1500-2500 per sets
    Payment Terms : L/C,T/T
    Supply Ability : 5000 sets/month
    Delivery Time : 15 day
    • Product Details
    • Company Profile

    Portable Site Accommodation Prefabricated Modular Labor Flat Pack Container Cabin

    Portable Site Accommodation Prefabricated Modular Labor Flat Pack Container Cabin

    Basic info.

    Model NO. KXD-D01 Material Steel
    After-Sales Service Perfect Service and Installation Guidance Wall Material Rockwool Sandwich Panel
    Steel Frame Gavalnized Steel with Plastic Paint Roof Structure Flat Roof
    Warranty 1 Year Usage Dormitories, Temporary Offices, Camp, School, Hospital, Toilet
    Certification CE, ISO, SGS Size Customized
    Transport Package Load Into 40FT Sea Container Specification 20ft/40ft
    Trademark KXD Origin qingdao,china
    HS Code 9406900090 Production Capacity 5000 pcs/month

    Product Description

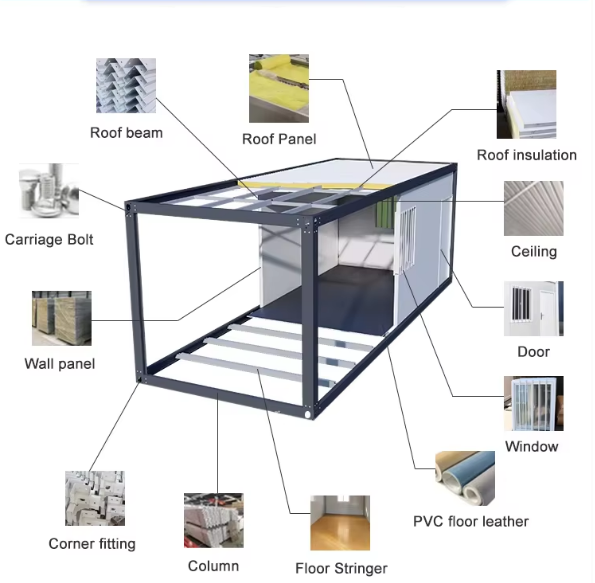

    Container house is composed of top frame components, bottom frame components, corner posts and several interchangeable wall panels. The modular design concept and production technology are adopted to modularize a box house into standard parts and then to the site where it is used. It can be assembled or hosted on the site. The product uses a box as the basic unit. The box structure adopts special cold-formed galvanized steel components. The enclosure and thermal insulation materials are all non-combustible materials. Plumbing, electrical, decorating and supporting functions are all prefabricated in the factory, and no secondary construction is required. On-site assembly or overall hoisting and seating can be checked in. It can be used alone, and can also be used in different combinations of horizontal and vertical directions to form a spacious useable space and stack.

    Container house is simple in structure, safe, and has low requirements on the foundation. It has the characteristics of the fast on-site installation, convenient moving and relocation, high turnover times, and long service life. The product has no loss in disassembly and assembly, no construction waste, and can be used as an office, Accommodation, restaurant, bathroom, entertainment and combined large space use can meet the needs of construction engineering camps, municipal temporary housing, field camps, emergency resettlement housing, schools, hospitals, tourist stations, and various commercial housing.

    It has the characteristics of prefabrication, flexibility, energy saving and environmental protection, and is called a new type of "green building."

    Our Advantages

    1. Convenient for transportation, fast and convenient lifting

    2. High strength: Welded steel frame to meet strength requirements. It is the building unit with the best seismic performance in the building, which is very suitable for post-disaster reconstruction

    3. The whole top is welded, and the whole board is waterproof and leak-proof design, which is more safe and reliable.

    4. Beautiful appearance: the wall is made of color steel sandwich panel, small plate combination design, the product is connected scientifically, and the surface is smooth and smooth

    5, Strong weather resistance: good resistance to acid, alkali, salt spray and other corrosive, suitable for a variety of humid and corrosive environments. With waterproof, sound insulation, heat preservation, sealing, easy to clean, easy to maintain, beautiful appearance, etc.

    6. Typical applications: offices, conference rooms, staff quarters, prefab camp, prefab labor camp, prefabricated shops, prefabricated schools, prefabricated hotels, prefabricated factories, etc.

    Product Parameters

    Frame
    Q235
    Steel Material
    All Steel Galvanized+Plastic Paint
    Roof board
    Insulation Board with Corrugated Steel Plate walPanell
    Wall Panel
    50 mm/75 mm thickness EPS/Rock wool/PU Sandwich Panels
    Floor
    Galvanized Square tube Waterproof Plywood/Fiber Cement Board/18 mm Bolivian
    Magnesium Board+PVC Viny1 Floor Finishing
    Door
    930 mm(W)*1980 mm(H)Steel security door / Fire-proof door /Sandwich Panel
    Door with Handle & Lock
    Window
    930 mm(W)*1200 mm(H) PVC/Aluminum alloy Sliding/Tilt Window
    Bolts
    Galvanized M12 High-Strength Bolts
    Light
    LED Ceiling Lights Optional
    Switch
    1-Way-Switch Optional
    Distribution Box
    On ceiling,for Lights Optional
    Stairs
    Steel Stairs with high class Handrail Optional
    Walkway+Balustrade+Awning
    Galvanized Steel Optional
    Roof Load
    ≥50Kilograms/m2
    Flooring Load
    ≥150Kilograms/m2
    Aisle Load
    ≥200Kilograms/m2
    Wall Side Stress
    ≥80Kilograms/m2
    Wall Deformation
    ≤300Kilograms/m2
    Electrical System
    Circuits Concealed,Match 3C/CE/AS
    Drainage/Electric System
    Provided Plan,Design and Construction
    Resistant Temperature
    -40℃ to -40℃
    Wind Resistance
    120 km/h or 11 level of wind Loading
    Earthquake Resistance
    Grade 8
