    High Performance Oil Cylinder With Pressure Range 1-10 Bar ADVU-25-15-P-A Compact Pneumatic

    Ask Lasest Price
    Brand Name : Festo
    Model Number : ADVU-25-15-P-A
    Certification : cc
    Price : RMB/100-10000/PC
    Payment Terms : T/T
    Supply Ability : 10PCS/days
    Delivery Time : 3 work days
    • Product Details
    • Company Profile

    High Performance Oil Cylinder With Pressure Range 1-10 Bar ADVU-25-15-P-A Compact Pneumatic

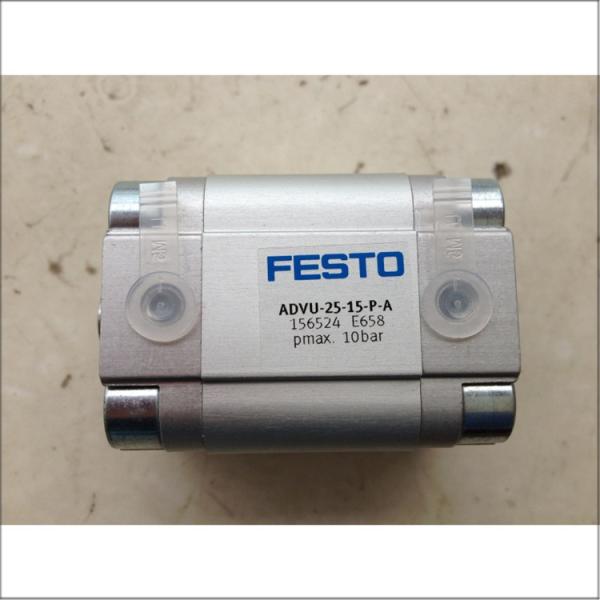

    FESTO ADVU-25-15-P-A

    Product Overview

    • Model: ADVU-25-15-P-A
    • Type: Compact Pneumatic Cylinder
    • Brand: Festo

    Technical Specifications

    • Piston Diameter: 25 mm
    • Stroke: 15 mm
    • Operating Mode: Double-acting
    • Piston Rod End: Female thread
    • Cushioning: Elastic cushioning rings/plates at both ends
    • Mounting Position: Optional (any position)
    • Operating Pressure Range: 0.1 MPa to 1 MPa (1 bar to 10 bar)
    • Operating Temperature Range: -20°C to 80°C
    • Theoretical Force at 6 bar:
      • Advancing: 295 N
      • Retracting: 247 N
    • Weight: 180 g (with 0 mm stroke) + 28 g per 10 mm stroke
    • Pneumatic Connection: M5
    • Materials:
      • Cylinder Housing: Extruded aluminum alloy
      • Piston Rod: High-alloy stainless steel
      • Seals: NBR, TPE-U (PU)

    Features

    • Compact Design: Suitable for applications with limited space.
    • Integrated Magnet: Ready for position sensing with proximity switches.
    • Versatile Mounting: Can be installed in any position.
    • Smooth Operation: Elastic cushioning rings/plates at both ends provide smooth and quiet operation.

    Applications

    This compact cylinder is ideal for a wide range of industrial automation applications, including assembly lines, material handling, and robotic systems, where precise linear motion and compact size are required.
    Technical Specifications
    AttributeValue
    ModelADVU-25-15-P-A
    Displacement10 cm³ per revolution
    Maximum Operating Pressure250 bar
    RotationClockwise
    Shaft ConfigurationConical 1:5
    Flange TypeRectangular flange with a diameter of 36.47 mm (M8)
    Dimensions84.1 mm x 87 mm x 112 mm
    Weight3.1 kg
    Maximum Speed4000 RPM
    Working Pressure21Mpa
    Working Viscosity16 ~ 25 mm²/s
    Swept Volume19/34ml/r
    PackingWood Package
    PortsSAE, BSP, NPT
    Bosch Rexroth 0510425009 AZPF-11-010RFB20MB Hydraulic Motor
    Frequently Asked Questions
    Do you accept small orders?
    Yes, we accept small orders. Please contact us for details.
    Can you send products to my country?
    Yes, we can ship internationally. We can arrange shipping if you don't have your own forwarder.
    What are your payment terms?
    We accept T/T, LC at sight, or 100% full payment.
    How long is your production lead time?
    Lead time depends on product and order quantity, typically 15 days for MOQ quantities.
    When can I get the quotation?
    We typically provide quotes within 24 hours. Urgent requests can be prioritized.
    After Warranty Service: Video technical support available
    Quality: Excellent
    Fuel: Hydraulic Oil
    Material: Standard
    Structure: Piston cylinder
