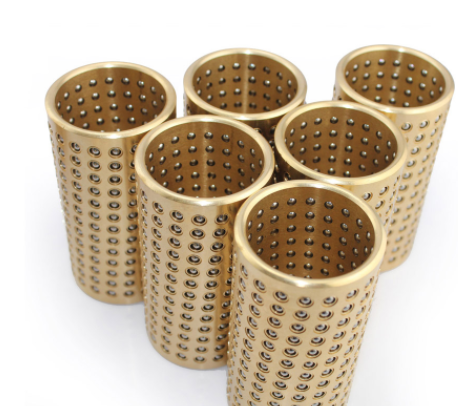

The FZH Ball Bearing Cage is a precision-engineered component that offers superior performance and durability in various industrial applications. Constructed from high-quality bronze Gleitlager material, this cage ensures smooth and efficient operation of ball bearings.

The bronze Gleitlager material provides excellent wear resistance, corrosion resistance, and mechanical strength, making it ideal for use in demanding environments. The cage design securely holds the ball bearings in place, reducing friction and heat generation while enhancing operational stability.

In addition to the bronze Gleitlager cage, we also offer brass and aluminum bushings in various stock sizes. These bushings are designed to complement the ball bearing cage, providing a complete and reliable bearing solution. The brass bushings offer good corrosion resistance and machinability, while the aluminum bushings are lightweight and have excellent thermal conductivity.

Wh you need a ball bearing cage or bushings for your industrial application, we have a wide range of stock sizes available to meet your requirements. Our products are designed for precision and durability, ensuring long-term performance and reliability.

Overall, the FZH Ball Bearing Cage Bronze Gleitlager, along with our brass and aluminum bushings, offers a comprehensive bearing solution that is suitable for various industrial applications.

Brass Aluminum Bushing, Customized Bronze Brass Aluminum Bushing Supplier

Brass ball cage with steel balls

Brass Cage Ball Retainer Bush Supplier

High-Quality Aluminum bronze bushing with Competitive Price. Sourcing Aluminum Alloy from China Now!

High-Quality Needle Roller Bearing with Competitive Price.

Line bearings, moving smoothly in low noise. High-performance linear bearing, combining high production efficiency and perfect quality.

Introduction

FZ Ball Retainer cage Bearing Bushing Brass ball cage bearing retainer
Material: copper, aluminum, plastic, a large number of spot, non - calibration.Standard specifications are in stock

Description

linear bearings are respectively made of copper alloy, hard aluminum alloy and POM resin as the matrix, and holes with proper size and special shape are processed on the surface of the outer circle, in which rolling bearing steel balls are inserted.Using the latest technology of grooved circumferential ball locking, the problem that traditional ball locking and indentation ball locking cannot prevent steel ball from falling off is effectively solved.Work out at the bottom of the bore 90 ° seam allowance to rotate freely within the steel ball in the hole and not fall off.Due to the diameter of the ball more than keep the ring wall thickness, so when use remain higher than that of steel ball ring, cylindrical surface, direct contact with the match of the hole and shaft, the substrate (circle) floating in the middle, and match the difference between the hole and shaft radius less than the diameter of steel ball, steel ball and fits for interference fits, with high precision, flexible shaft and hole relative motion.Is to maintain the cycle of replacement products.

FZ Ball retainer is based on copper or aluminum or POM material, with high quality steel balls, produced in certain angle and density. It's used on cold punching mold and machine tools and so on.

Ball retainer are as copper, aluminium, POM base FZ ball retainer, linear bearing, ball cage retainer

The new work-craft will prevent the ball getting out of as old. as the ball diameter is larger than the retainer s thickness, so it will face to face directy with 90°guide bushing, that will bring high precision match now the ball retainer series items are designed to rotate on the post

Specifications:

Custom Precision Bronze Brass Aluminum Pom Ball Bearing Cage, Ball Retainer

Technical Data

• Load capacity: 30N/mm2
• Speed limit: 6m/s
• PV limit:25N/mm2.m/s/s

Packaging & Delivery

Packaging Details
inner packing:packed with plastic bag, out packing:cartons and wooden pallet or upon request
Port:SHANGHAI OR NINGBO
Lead Time :Stock sizes available
7 to 14 work days after order placed and payment settled

Beyond Grease: A Deep Dive into Oilless Bushings & Why Viiplus Leads the Way

Friction is the enemy of efficiency. In countless machines, from massive industrial equipment to intricate automotive components, the constant battle against wear and tear dictates performance, longevity, and maintenance costs. Traditionally, grease and oil have been the go-to solutions, but they come with their own set of challenges: frequent re-lubrication, potential contamination, environmental concerns, and limitations in extreme conditions.

Enter the world of oilless bushings, also known as self-lubricating bearings or sliding bearings. These innovative components offer a smarter way to manage friction, delivering reliable movement without the need for external lubrication.

At Viiplus (www.viiplus.com), we don't just supply these components; we engineer solutions. Leveraging deep expertise in metallurgy and tribology (the science of friction, wear, and lubrication), we've become a leading name in sliding bearing technology. But what exactly are oilless bushings, and why should they be on your radar? Let's dive deeper.

What Exactly Are Oilless Bushings? The Science of Self-Lubrication

Unlike traditional ball or roller bearings that rely on rolling elements and require constant lubrication films, oilless bushings operate on the principle of sliding motion. Their "magic" lies in their material composition and structure, designed to provide their own lubrication at the bearing surface. This can be achieved through several key technologies:

1. Solid Lubricants Embedded: Materials like graphite, MoS₂, or PTFE are embedded directly into the metallic matrix (often bronze) of the bushing. As the shaft rotates or slides, a minuscule amount of this solid lubricant is transferred to the mating surface, creating a low-friction film.

2. Porous Metal Structures: Sintered bronze or iron materials are created with microscopic pores. These pores are vacuum-impregnated with oil during manufacturing. In operation, slight heating causes the oil to expand and seep onto the bearing surface, providing lubrication. When it cools, the capillary action draws the oil back in, creating a closed-loop system.

3. Layered Composites: These often feature a strong backing (like steel), an intermediate sintered layer (like bronze), and a low-friction overlay (often PTFE-based). The PTFE layer provides the primary sliding surface, offering extremely low friction.

4.

Contrasting Logic: Oilless vs. Traditionally Lubricated Bearings

The Tangible Benefits: Why Make the Switch?

Choosing oilless bushings isn't just about eliminating grease guns. It's about unlocking significant operational advantages:

• Drastically Reduced Maintenance: This is the most obvious benefit. No re-greasing means less labor, less scheduled downtime, and simplified maintenance protocols. Imagine the savings across a factory floor!

• Enhanced Reliability: Lubricant starvation is a major cause of bearing failure. Self-lubricating bearings ensure consistent lubrication, leading to predictable performance and longer service life, especially in hard-to-reach locations.

• Superior Performance in Harsh Conditions: Oilless bushings excel where traditional lubricants fail:

  • High Temperatures: Certain types can operate at temperatures far exceeding the limits of conventional greases.

  • Low Temperatures: No grease means no stiffening or freezing issues.

  • Contaminated Environments: The absence of sticky grease reduces the ingress of dirt, dust, and debris.

  • Vacuum or Underwater: Ideal for applications where liquid lubricants are impractical or impossible.

  •
  •
  •
  •
  •
  •
  •

• Cost Savings (Total Cost of Ownership): While the initial purchase price might sometimes be higher, the TCO is often significantly lower due to savings on lubricants, labor, downtime, and potential component failure replacement.

• Environmental Friendliness: Eliminating oil and grease leakage prevents contamination of products, machinery, and the environment. Crucial for industries like food processing, pharmaceuticals, and textiles.

• Compact & Simplified Designs: Without the need for lubrication systems (nipples, lines, reservoirs), machine designs can be more compact and streamlined.

•

Exploring Viiplus's Portfolio: Finding Your Solution

Viiplus offers a comprehensive range of self-lubricating bearings designed to meet diverse application needs. Understanding the different series helps in selection:

• JDB Series (Graphite Plugged Bronze): Excellent for high-load, low-speed applications, intermittent motion, and high temperatures. The graphite plugs provide continuous solid lubrication. Ideal for heavy machinery, molds, and hydraulic components.

• SF Series (PTFE-Based Composite): Typically metal-backed (SF-1: steel, SF-2: steel/bronze) with a PTFE-based lining. Offers very low friction, good wear resistance, and suitability for dry running or marginal lubrication. Common in automotive, office equipment, and hydraulics.

• JF Series (Bimetal Bushings): Combines a steel backing with a sintered bronze or lead-bronze lining. Good load capacity and fatigue strength. Often used with grease or oil but can operate marginally lubricated. Found in engines, chassis parts, and agricultural machinery.

• FB Series (Wrapped Bronze): Often made from bronze strip, sometimes with lubrication pockets or through-holes. A cost-effective solution for medium loads and speeds, typically requiring initial greasing but offering extended re-lubrication intervals.

•

Quick Comparison Chart (General Guide):

(Note: This is a simplified guide. Always consult specific product data sheets or Viiplus experts for precise application requirements.)

Uncertain which material or type suits your project? Our Bushing Material Selection Guide is designed to help, or Contact Us for a Free Quote and Expert Advice.

Why Partner with Viiplus? Expertise Meets Quality

Choosing the right supplier is as critical as choosing the right bushing. Here’s why companies worldwide trust Viiplus:

• Deep Expertise: Our foundation in metallurgy and tribology, coupled with a talented R&D team, means we understand the science behind reliable movement. We don't just sell; we solve friction challenges.

• Uncompromising Quality: We employ advanced manufacturing techniques (including sand casting, centrifugal casting, metal casting, investment casting) and a rigorous quality management system, ensuring every bushing meets the highest standards.

• Comprehensive Range: From standard metric sizes in JDB, SF, JF, and FB series to custom solutions including cylindrical, flange, double flange bushings, wear plates, and guide rails – we have the portfolio to match your needs.

• Global Reach, Seamless Logistics: Based in China, we ship sliding bearings worldwide. Our professional team handles customs clearance efficiently, ensuring smooth, timely delivery with all necessary documentation.

• Customer-Centric Approach: We believe in ethical practices and building trust. We offer flexible production (single units to large series), competitive pricing, and  online support.

•
