Rexroth Direction Valve 4WE6JB62/EG24N9K4 High-Performance 24 VDC For Hydraulic Fluid Control

    Buy cheap Rexroth Direction Valve 4WE6JB62/EG24N9K4 High-Performance 24 VDC For Hydraulic Fluid Control from wholesalers

    Buy cheap Rexroth Direction Valve 4WE6JB62/EG24N9K4 High-Performance 24 VDC For Hydraulic Fluid Control from wholesalers
    • Buy cheap Rexroth Direction Valve 4WE6JB62/EG24N9K4 High-Performance 24 VDC For Hydraulic Fluid Control from wholesalers
    • Buy cheap Rexroth Direction Valve 4WE6JB62/EG24N9K4 High-Performance 24 VDC For Hydraulic Fluid Control from wholesalers

    Rexroth Direction Valve 4WE6JB62/EG24N9K4 High-Performance 24 VDC For Hydraulic Fluid Control

    Ask Lasest Price
    Brand Name : Rexroth
    Model Number : 4WE6JB62/EG24N9K4
    Certification : cc
    Price : RMB/1000-10000/PC
    Payment Terms : T/T
    Supply Ability : 10PCS/days
    Delivery Time : 3days
    • Product Details
    • Company Profile

    Rexroth Direction Valve 4WE6JB62/EG24N9K4 High-Performance 24 VDC For Hydraulic Fluid Control

    Product Description

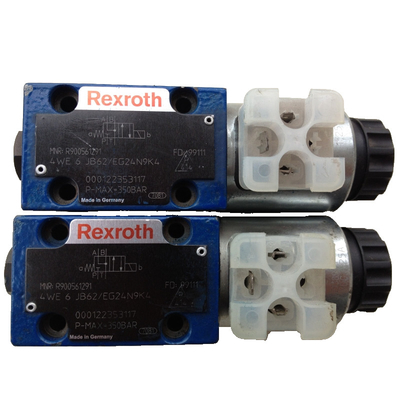

    The Bosch Rexroth 4WE6JB6X/EG24N9K4 (R900561291) is a high-performance industrial hydraulic valve designed for reliable switching of oil flow direction. This direct-actuated spool valve features a JB spool symbol and is capable of handling a maximum pressure with an electrical connection characterized by a connector pole PE according to EN standards. Its robust construction includes a size designation, and it is designed for subplate mounting with connection diagrams compliant with NFPA T3.5.1 R2 D03 and ISO standards. This model operates with 24 VDC supply voltage and has two switching positions, enhancing its versatility in various hydraulic applications. The unit's weight is complemented by NBR seals, ensuring compatibility with hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC. The 4WE6JB6X/EG24N9K4 boasts multiple ports for fluid control and solenoid actuation for precise operation.


    The valve's design includes one or two electromagnets that control the start, stop, and direction of flow when energized. It also features manual auxiliary actuation for situations where magnet supply isn't available. Importantly, the valve must be properly vented to function correctly. For enhanced energy efficiency and operational convenience, this model can be equipped without spring return or with detent OF for fixed control spool positioning during operation. Additional options include soft switching behavior to minimize switching strokes and an optional throttle insert for managing flows exceeding the valve's performance limit. Configurable as a 3- or 4-way version with porting patterns according to ISO standards, the Bosch Rexroth 4WE6JB6X/EG24N9K4 offers high-power solenoid options that are rotatable by 90°. It provides electric connections as single or central connections and features optional spool position monitoring. The unit meets CE conformity for electrical voltages above certain thresholds and has optional UL approval markings along with CSA approval. With a component series X marking its generation, this valve can endure maximum operating pressures up to bar levels while facilitating maximum flow rates delineated by DC l/min and AC l/min specifications for different ports respectively. This makes it suitable for applications demanding precise hydraulic flow control under rigorous conditions.


    BrandRexroth
    Model4WE6JB62/EG24N9K4
    Max. flow80
    Type of connectionSubplate mounting
    Size_CETOPD03
    Connection diagramISO 4401-03-02-0-05
    Supply voltage24 VDC
    Number of switching positions2
    Weight1.46
    SealsNBR


    FAQ


    Q1: Wonder if you accept small orders?
    A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.


    Q2: Can you send products to my country?
    A2: Sure, we can. If you do not have your own ship forwarder, we can help you.


    Q3: What's your payment terms ?
    A3: By T/T,LC AT SIGHT,100% full payment.


    Q4: How long is your production lead time?
    A4:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.


    Q5: When can I get the quotation ?
    A5: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
