    H3543HWF-AG 139μm Amorphous Silicon A-Si Curved DR Panel

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : H3543HWF-AG
    Certification : CE
    Payment Terms : T/T,Paypal
    Supply Ability : 5sets/Month
    Delivery Time : 10-15 working days after receipt of your payment
    • Product Details
    • Company Profile

    H3543HWF-AG 139μm Amorphous Silicon A-Si Curved DR Panel

    H3543HWF-AG 139μm Amorphous Silicon A-Si Curved DR Panel


    Sensor
    Receptor Type a-Si

    Scintillator Gos

    Active Area 350 x 430 mm

    Resolution 2560 x 3072

    Pixel Pitch 139 μm


    Electricals and interface
    A/D Conversion 16 bits

    Data Interface Gigabit Ethernet/802.11ac (only 5G)

    Acquire Time wired: 1s; wireless: 3s

    Exposure Control Software/Sync
    Memory 4 GB DDR4, 8 GB SD card


    Mechanical
    Dimension 583x437x21.8mm
    Weight 4.5kg (without battery)

    Material Aluminum and magnesium alloys

    Front Panel Carbon fiber


    Enviromental

    Temperature 10-35°C (operating);-10~50°C (storage)

    Humidity 30-70% RH (non-condensing)

    Ingress Protection IP54 (Customized to IP67)


    Power Supply & Battery

    Adapter In AC 100-240V,50-60Hz

    Adapter Out DC 24V,2.7A

    Power Dissipation <20 W

    Standby Time 6.5 h

    Recharge Time 4.5 h


    Image Quality
    Limiting Resolution 3.5 LP/mm

    Energy Range 40-350 KV

    Dynamic Range ≥84 dB

    Sensitivity ≥0.54 LSB/nGy

    Ghost <1% 1st frame

    DQE 42% @(1 LP/mm)

    28% @(2 LP/mm)

    MTF 68% @(1 LP/mm)

    38% @(2 LP/mm)

    20% @(3 LP/mm)

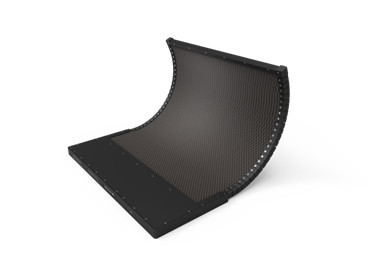

    Quality H3543HWF-AG 139μm Amorphous Silicon A-Si Curved DR Panel for sale
