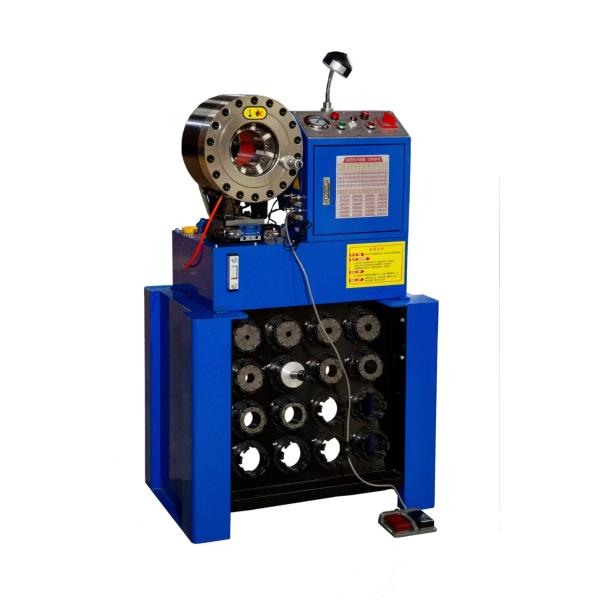

Stainless Steel Pipe Hose Crimping Machine P38 Braided Hose Crimper
High Accuracy 1.5 And 2 Inch With Rack And Fast Change Mould
Tools/hose crimping machine/Hydraulic hose pressor
Product Description
Introducing the 1.5 Inch/2 Inch P38 Hose Crimping Machine, a
high-precision tool designed for crimping stainless steel pipes and
braided hoses. This robust hydraulic hose crimper features a rack
and fast-change mold tools, making it ideal for efficient hose
assembly in various industrial applications. Engineered for
accuracy, this machine delivers consistent results for both
1.5-inch and 2-inch hoses.
Key Features
• High Accuracy: The P38 is designed for precise crimping, ensuring
that each connection is secure and leak-proof, crucial for
high-pressure applications.
• Versatile Size Compatibility: Capable of crimping hoses up to 2
inches, this machine meets the diverse needs of different
industries and applications.
• Fast Change Mold Tools: The innovative rack and fast-change mold
design allows for quick adjustments between different hose sizes,
significantly reducing downtime during operations.
• Durable Construction: Made from high-quality stainless steel, the
P38 is built to withstand harsh working environments while ensuring
longevity and reliability.
• User-Friendly Operation: With intuitive controls and a clear
display, operators can achieve accurate results easily, regardless
of their experience level.
Advantages
1. Reliable Performance: The P38 provides consistent crimping
quality, ensuring durable and robust connections for stainless
steel and braided hoses.
2. Enhanced Efficiency: The fast-change mold system minimizes setup
time, allowing for rapid transitions between different hose sizes,
improving overall productivity.
3. Durability: The stainless steel construction ensures resistance
to corrosion and wear, making it suitable for demanding industrial
applications.
4. Low Maintenance: Designed with fewer moving parts, this crimper
requires minimal maintenance, enhancing its operational lifespan.
| crimping range | 6-38mm(1/4''-1.5''inner diameter of hose) |
| Rated pressure | 26Mpa/31.5Mpa(Optional) |
| The largest crimping pressure | 300T |
| Rular precision | 0.01mm |
| Output volume of pump | 2.5L/5L(Optional) |
| Net weight | 275kg |
| Work efficiency | 200pcs/h |
| size | 950*630*700 mm |
| dies | 8 sets |
| Item No.of dies | length 60mm(15,19,23,26);Length 70mm(31,36,41);Length
80mm(47,55,60) |
| crimping range | 6-38mm(1/4''-1.5''inner diameter of hose) |
| Rated pressure | 26Mpa/31.5Mpa(Optional) |
| The largest crimping pressure | 300T |
| Rular precision | 0.01mm |
| Output volume of pump | 2.5L/5L(Optional) |
| Net weight | 275kg |
| Work efficiency | 200pcs/h |
| size | 950*630*700 mm |
| dies | 8 sets |
| Item No.of dies | length 60mm(15,19,23,26);Length 70mm(31,36,41);Length
80mm(47,55,60) |
TECHNICAL DATA
| Model | FY-P38 Hose Crimping Machine |
| Crimping Range | 6-38(mm) |
| Crimping Force | 300(T) |
| Hose Size | 1/4-1.5(inch) |
| Max. Opening | 20±mm |
| Die Sets | 8 |
Maximum Open Diameter | 104MM |
| System Pressure | 26(Mpa)/31.5(Mpa) |
| Accuracy | 0.01(mm) |
Work Efficiency | 200 pcs/h |
| Standard Voltage | 220v/240v/380v/415v(optional) |
| Motor Power | 3(KW)/4(KW) |
| Length | 950(mm) |
| Width | 630(mm) |
| Height | 700(mm) |
| Weight | 275(KG) |
NOTE
- for non standard die sets;
- Customized die sets are available;
- Special voltage 220V, 240V, 380V,415V are availbale;
► ADVANCED PLC SYSTEM
Multifucntional control panel with different operation mode
► DIE SETS
8 die sets hardness 59-63HRC, with quick change tool, productivity
improve much.
► FAMOUS BRAND MOTOR
World famous motor with high stability
► ONE PIECE FORGED OIL CYLINDER
Forged cylinder has higher anti wear ability compared with
traditional technology
► APPLICATIONS
FY-P38 is a high configured hose crimper, it has the ability of
crimping high pressure stainless steel braided hydraulic oil hose,
industrial fexible pipes, air or water hose, cable and wires, steel
and iron tubes, brake lines in automotive system, air suspension or
springs.
