1. Overview:

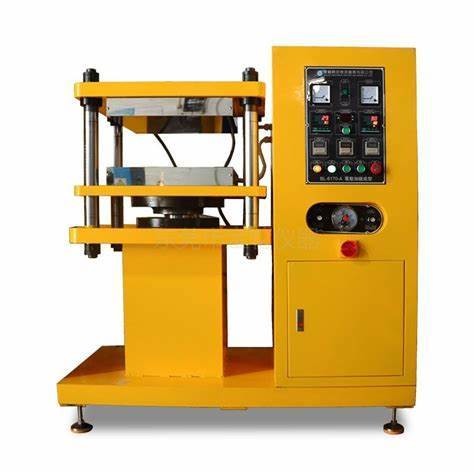

This machine is a 25 ton flat vulcanizing machine, which is suitable for pressing all kinds of molded products, such as pressing rubber and plastic, and also suitable for thin sheet products. This machine is a four-column integral structure, and the pressing type is a downward (upward) pressure type, which is divided into three parts: the main engine, the oil tank and the electric control box. The main machine is equipped with plunger, oil cylinder, fixed plate, movable plate and other parts. The fuel tank has oil pumps, pipes, valves and other components. The oil pump is driven by an electric motor, and the electric control box is equipped with a button switch, a magnetic starter, a timing alarm, a brake thermometer, an overload protector, etc. When the motor is overloaded, the power supply can be automatically cut off, and the electric heating is divided into three ways by the automatic thermostat, which can be adjusted arbitrarily within the range of 20-200 degrees, and when the temperature is reached, the circuit can automatically maintain a constant temperature, and after reaching the set vulcanization time, it will automatically alarm.

2. Technical Specifications:

1 Nominal clamping force: 250KN

2 Hot plate specification: 350×350mm

3 Hot plate distance: 100mm

4 Working layers; 1--2

5 The maximum hydraulic force is 14.5MPa

6. The pressure per unit area of the hot plate is 2MPa

7. Plunger stroke: 200mm

8 Heating method: Electric heating

9. Motor power: 3KW

10 Dimensions(L×W×H) 1233×532×1408mm

11 Weight: 1.3 tons

After-sales service plan:

1. We guarantee that the goods fully comply with the quality, specifications and performance requirements stipulated in the contract;

2. Before delivery, we will conduct accurate and comprehensive testing of the products; Packing according to your requirements, pictures are attached before shipment for your confirmation, delivery is made on schedule, and professional shipping documents are provided;

3. We will provide you with quality service immediately, reply within 48 hours after receiving the quality message, and provide appropriate solutions within 3 working days;

4. After acceptance, our engineers will provide professional and technical services free of charge, such as video guidance and teaching, and on-site guidance and teaching if necessary;

5. We provide a 12-month warranty period, and in the event of quality problems during the product warranty period (not caused by human factors), we guarantee to provide free repair, maintenance and replacement of damaged and defective parts services;

In the event of any technical failure outside the warranty period, we will provide free telephone consultation services, and can also carry out paid repair and maintenance services;Company Information
