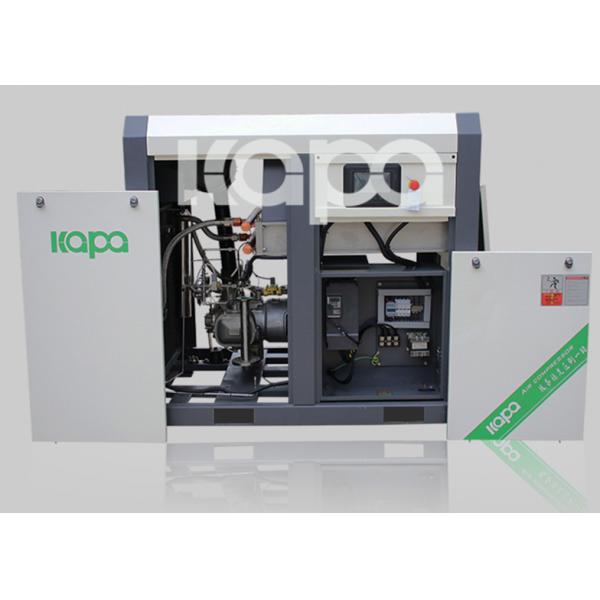

37KW/50HP 6.2m3/min 8bar 10bar oil-free rotary screw air compressor
oil-free rotary screw air compressor Performance advantages:
Performance advantages of oll-free water lubricated screw air
compressor
Energy saving: morethan20% energy saving compared with dry oll-free
machine
Environmental protection: 100% oil-free, with water as the
lubricating medium to avoldenironmentalpollution
Stability:absolute oil free guarantee
As the purified water participates in the sealing, cooling and
lubrication in the compression process, theefficiency is greatly
improved. The gas prod uction at the same specific power is more
than 20% higher than thatof the dry oil-free machine, which greatly
reduces the energy consumption. Oil free compressed air,
purecompressed air, and compression system without pollution risk;
The oil-free screw compressor uses pure wateras the lubricating
medium, and the host part has no lubricating oil at all. Because of
the cleaning effect of purewater on the air, the compressed air
produced is absolutely pure and free of any pollution.
oil-free rotary screw air compressor technical parameters:
| Model Specification | KP37-0.8 |
|
| Displacement/Pressure (M³/Min/Mpa) | 37/0.8 |
| Power Kw/ HP | 37KW/HP |
| Ambient Temperature ℃ | 2℃-45℃ |
| Cooling Mode | Air-Cooling |
| Discharge Temp | ≤Ambint+15℃ |
| Noise Level Db(A) | 65 |
| Driven Mode | Direct Drive |
| Power V/Ph/Hz | 380V/50/60Hz/OEM |
| Starting Mode | power frequency |
| Dimension mm | 1363*900*1235mm |
| Out let Diameter inch | RP1-1/4 |
oil-free rotary screw air compressor Application:
food, purification, pharmaceutical cotton spinning, high precision
electronics, 5-30bar
