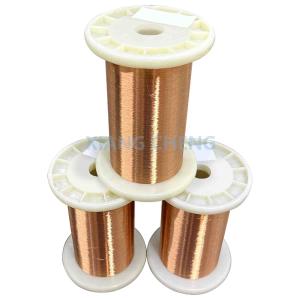

High Accuracy Type T Thermocouple Wire Positive Leg Cu(TP) With Copper Positive Leg For Low-Temperature Measurements

High Accuracy Type T Thermocouple Wire Positive Leg Cu(TP) With Copper Positive Leg For Low-Temperature Measurements

The positive leg of Type T thermocouple wire, designated as Cu(TP), is composed of pure electrolytic copper (≥99.9% purity). This material offers a stable and predictable thermoelectric response when paired with the negative leg (constantan, a Cu-Ni alloy). Common applications include food processing, HVAC systems, refrigeration, and laboratory equipment. Cu(TP) ensures reliable performance in non-aggressive environments, balancing durability and cost efficiency.

Composition & Properties:

• Positive Leg (TP): Pure Copper (~99.9%)
• Temperature Range: -200°C to 350°C
• Accuracy: ±1.0°C or 0.75% (Standard), ±0.5°C or 0.4% (Special)
• Electrical Conductivity: High (similar to pure copper)
• Corrosion Resistance: Good in dry air but prone to oxidation in humid environments
• EMF Output: ~40.69 µV/°C at 0-100°

Thermocouple temperature range and tolerance

Key Features of Type T Positive Leg (Cu, TP):

• Temperature Range: Operates effectively from -200°C to +350°C (-328°F to +662°F), ideal for cryogenic and moderate-temperature applications.
• Precision: Provides high accuracy (±0.5°C typical) and linear output, making it suitable for calibration and control systems.
• Corrosion Resistance: Resists oxidation in dry environments but requires protection in humid or corrosive conditions.
• Cost-Effectiveness: More affordable than noble-metal thermocouples (e.g., Type S/R/B).
• Flexibility: Available in various gauges (e.g., 30AWG to 12AWG) for different installation needs.

Applications:

• Cryogenic Temperature Measurements:

Used in laboratories and industrial applications requiring precise low-temperature measurements (-200°C and below).

Common in liquid nitrogen and liquefied natural gas (LNG) monitoring.

• Food Processing & Storage:

Used in food safety monitoring, refrigeration units, and cold storage systems.

Helps ensure compliance with food industry standards (e.g., HACCP).

• Biomedical & Pharmaceutical Industry:

Monitoring temperatures in medical storage units for vaccines and pharmaceuticals.

Used in incubators and cryogenic freezers.

• Environmental Monitoring & Meteorology:

Used in weather stations, climate research, and environmental studies.

Ideal for measuring soil, water, and air temperatures.

• Industrial Applications:

Suitable for plastics molding, HVAC systems, and scientific equipment calibration.

Used in temperature-sensitive electrical components.

• Aerospace & Automotive Industry:

Helps in cold chamber testing of aircraft and automotive components.

Used in space research for measuring extreme temperature conditions.

Key Advantages:

• High Accuracy & Stability – Excellent for precision measurements in critical industries.
• Wide Temperature Range – Functions efficiently from cryogenic to moderate temperatures.
• Corrosion Resistance – Performs well in humid and wet environments.
• Non-Magnetic – Suitable for sensitive applications.

Limitations:

• Prone to Oxidation – Copper oxidizes at high temperatures, limiting its range.
• Soft Metal – Susceptible to mechanical damage and requires careful handling.

The Cu (TP) positive leg in Type T thermocouples is a reliable, high-accuracy option for low-to-moderate temperature applications. Its strong thermal conductivity, corrosion resistance, and non-magnetic properties make it ideal for food processing, medical storage, environmental monitoring, and cryogenic research.

Company Overview:

Jiangyin Chengxin Alloy Material Co., Ltd has more than 20 years of experience as the lead.ing alloy wire manufacturer in China. We offer a wide range of services from fine wire drawing toresistance wire manufacturing. Since the beginning, our specialty has been the quality and preci.sion of our products. We have the tightest tolerances and deliver within a few days to a fewweeks. As a result, we have become the leading alloy wire supplier in the industry.

Senphus Subsidiaries:

• Jiangyin Chengxin Alloy Material Co., Ltd.
• Jiangyin Senphus Electrical Materials Co., Ltd.
• Jiangsu Xiangcheng Supply Chain Management Co., Ltd.

Jiangyin Chengxin Alloy Material Co., Ltd.: With nearly 20 years of experience, Jiangyin Chengxin is a leading alloy wire manufacturer in China. We offer a wide range of services, from fine wire drawing to resistance wire manufacturing. Our specialty lies in the quality and precision of our products, achieving the tightest tolerances and delivering orders within days to weeks. As a result, we have established ourselves as the premier supplier of alloy wire in the industry.

Our product range includes:

• Copper-nickel alloys (CuNi1-CuNi44)
• Karma (Nikrothal L/Evanohm/Alloy 800)
• Manganin and Constantan
• Nickel-chromium alloys
• Thermocouple alloys (Type K, N, E, T, J)
• Thermocouple extension wire
• PTC thermistor resistance alloy
• Pure nickel wire and Monel alloy

These alloys are available in various forms, including wire, ribbon, stranded, and enamelled. Major applications include seat heating, underfloor heating, military projects, aerospace, household appliances, heating wire, mechanical and electrical plants, and temperature instruments. Our manufacturing processes are ISO 9001:2015 certified, and we specialize in fine and ultra-fine wire drawing, offering wire diameters from 0.025 mm (0.001") to 13 mm (0.51") in small batches, medium volumes, and mass production. We maintain a comprehensive quality inspection system, including in-house chemical analysis, chromatographic analysis, metallurgical analysis, pinhole tests, wire construction tests, and tension tests to ensure the highest quality standards.

Senphus Electrical Material Co., Ltd.: Founded in 2003, Senphus Electrical Material Co., Ltd. integrates research, manufacturing, and sales of electric heating alloys, heating cables, heating wires, and heating products. Leveraging over a decade of technical expertise in heating alloy wire, we have adopted advanced heating cable technology and machinery, successfully developing heating cables, temperature controllers, and temperature control systems suitable for building heating, pipe insulation, outdoor snow melting, wind power blade production, car seat heating, and healthcare applications.

The company is recognized as a high-tech enterprise in Jiangsu Province and a small giant enterprise in Jiangyin City, specializing in innovative technologies. We operate the "Wuxi Heating Cable Engineering Technology Research Center" and collaborate with experts from renowned domestic universities. Our portfolio includes 5 invention patents and over 30 utility model patents, showcasing our strong research and development capabilities.

With an annual output exceeding 1,000 tons of thermal alloy wire and an output value of approximately 105 million yuan, our products are well-received in markets such as the UK, Italy, Canada, Peru, and Spain. Our heating cables generate an annual output value of over 80 million yuan, with exports to Germany, Japan, the United States, Malaysia, Denmark, Brazil, and other countries.

The company has successfully passed multiple quality management system certifications, including IATF 16949, ISO 9001, ISO 14001 (Environmental Management System), and ISO 45001 (Occupational Health and Safety Management System). Our heating cables and related products have also obtained test reports from the Shanghai Cable Research Institute Test Center and received certifications such as UL (United States), VDE (Germany), CE (European Union), and RoHS.

Commitment to Quality: We adhere to the business commitment of "Reputation First, Quality First, Customer First" and uphold the quality policy of "Integrity-Based, Quality-Oriented, Excellent Service." We are dedicated to providing accurate products and professional services, and we look forward to collaborating sincerely with you to achieve mutual success.
