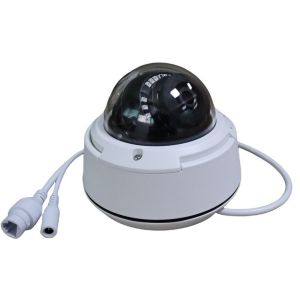

1080P HD IP Camera with Good Night Vision Vandalproof CCTV Vehicle
Inside POE Network Dome Camera for Bus
Vanwin camera monitor systems vw-31IP is the perfect solution for
various kinds of vehicles, including bus, school bus,coach, van,
road sweeper, fuel tanker...... Fitted with infrared LEDs for
improved night vision and combined with a robust, durable casing,
the operation system offers unrivalled performance and clarity
Features:
2MP pixels, 1/2.9" target surface;
Support H.264/H.265, dual stream (main stream and
auxiliary stream) output;
Support IE, Edge,Chrome,Safari browser browsing;
Support audio input and output, realize video
monitoring;
Support inductive infrared day and night switching to
achieve 24-hour monitoring;
Support human shape detection, vehicle shape detection;
Support many protocols such as onvif protocol and Hikvision
private protocol, and can access many large-scale platform
management systems at home and abroad;
Support mobile phone monitoring (iOS, Android),Web terminal, VMS
monitoring;
Support PoE power supply (optional);
Specifications: (Support 2MP/4MP/5MP for Option, here below is for 2MP)
| Module | VW-31IP |
| Sensor | 2MP pixel , 1/2.9″ CMOS sensor |
| Encoding format | H.264, H.265 encoding, support dual stream |
| Maximum frame rate | PAL: 2M:25fps/s NTSC:2M:30fps/s |
Image Resolution | Main stream: 1920*1080； Auxiliary stream: 704*576,640*480,352*288 Snap stream: 704*576,640*480,352*288 |
| Subtitle overlay | Support channel name, date and time overlay, overlay position is
adjustable |
Alarm data transmission | FTP, E-mail, browser, management software |
| Protocol support | TCP/IP,RTSP,RTP, HTTP,DNS,DDNS,DHCP,FTP,NTP,UPNP |
| ONVIF protocol | Standard ONVIF protocol |
| Client browsing | Client browsing supports IE8.0 and above (device embedded Web
Server), Edge,Chrome,Safari browser browsing |
| Mobile client | Support iOS, Android platforms |
| Audio format | G.711A |
| Audio input | 1 audio input |
| IR Distance | 10M |
| Lens | 2.8MM M12,fix aperture F2.0, HFOV 110° |
| Proof Grade | IP66 |
| Installation | Installation inside the vehicle |
| Working Temperature | -30℃--＋70℃ |
| Working Humidity | 10-90%RH |
| Interface | RJ45(POE)Add DC power supply / 6PIN aviation connector/4PIN aviation connector with built-in POE |
| Powered by | Optional DC 12V(PON)/POE(802.3af) |
| Equipment weight | 0.55 kg |
Our advantages
1.We all the time provide car cameras for many car bus truck
factories since 12 years ago .We pay much attention to our cameras
quality ,adopt A class PCB tech and 4 holes in mainboard completely
insulated, isolation of the camera body from excess power, chip not
touch camera body, prevent magnetic interference and ensure signal
continuity.
2. Careful production Process:
Raw Material---- Accessories High Temperature
Test---Assembly----Finished Products----Waterproof Test----High Low
Temperature Test(Simulate -60℃to 80℃)----QA Test(IR with function Test ----Packing
3.Strict Tests one by one .
Due to our strict quality control and careful workmanship ,our
clients like our cameras very much .Nearly all clients have been
cooperating with us all the time .
4.We explore some wide angle or special cameras to meet your
requirements that others don't have.
Application
