    IP5X IP6X Test Machine Industrial Dust Ingress Test Sand And Dust Test Chamber

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN441-2160L
    Certification : Calibration Certificate (Cost Additional)
    Payment Terms : T/T
    Supply Ability : 10 Sets Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    IP5X IP6X Test Machine Industrial Dust Ingress Test Sand And Dust Test Chamber


    IP5X IP6X Test Machine Industrial Dust Ingress Test Sand and Dust Test Chamber


    Complied Standards & Clauses



    Conforms to IEC60068-2-68-La2, ISO20653-La2, IEC60529, etc.


    Product Overview

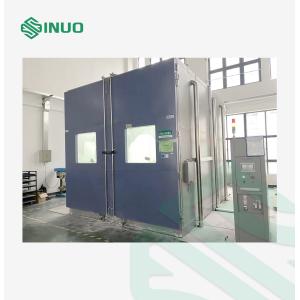

    The SN441-2160L Sand and Dust Test Chamber is engineered to simulate extreme sand and dust environments for evaluating the durability and sealing performance of electrical and electronic components, automotive and motorcycle parts, and other industrial equipment. Compliant with IEC60068-2-68, ISO20653, and IEC60529, this chamber helps manufacturers assess the harmful effects of airborne particles on products during use, storage, and transport.

    Using a conical funnel design with high-efficiency circulation, fine dust is drawn from the chamber bottom and repeatedly dispersed from the top, mimicking natural or operational dust exposure. This ensures reliable, repeatable test conditions to meet demanding product validation standards.


    Technical Parameters



    Item

    Specification

    ModelSN441-2160L
    Inner Chamber Size (W×D×H)1500 × 1200 × 1200 mm
    Outer Chamber Size (W×D×H)Approx. 1900 × 2000 × 2500 mm
    Dust TypeTalcum powder, <75 µm
    Dust Concentration2 kg/m³
    Talcum Powder Dosage2–5 kg/m³
    Airflow Rate≤ 2 m/s
    Dust Flow DirectionTop-down
    Dust Baking Temperature RangeRT+10℃ ~ 60℃
    Air Flow Meter Range1–20 L/min
    Shock Time / Test Duration1 s ~ 99 h (adjustable)
    Cycle Control1 s ~ 99 h (adjustable)
    Vacuum Time1 s ~ 99 h (adjustable)
    Load Capacity50 kg
    Observation Window1 pc
    Lighting1 pc
    Control SystemPLC + Touchscreen (Sinuo)
    Controller BrandMCGS / XINJE
    Flow MeterDigital, touchscreen display
    Vacuum SystemVacuum pump + regulators
    Dust HeatingStainless steel mica heating jacket
    Inner MaterialSUS201 stainless steel
    Outer MaterialElectrostatic painted A3 steel
    Power SupplyAC380V, 50Hz, 3-phase, 32A
    Power Consumption3 KW (no load)
    Environmental Conditions23±5℃, RH 25–70%, 86–106 kPa
    Safety ProtectionPhase protection, leakage, over-temp, abnormal protection

    Details
