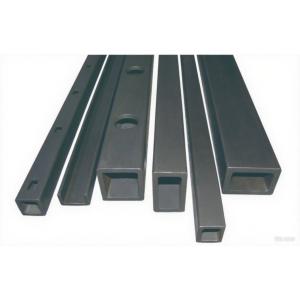

Customized High-Strength Reaction-Sintered Silicon Carbide Square Beam Support with High Temperature Resistance up to 1380°C

Description:

This product is manufactured using reaction sintering technology, boasting exceptional strength, high temperature resistance, corrosion resistance, and thermal shock resistance. It is ideally suited for use as a load-bearing structural framework in shuttle kilns, tunnel kilns, and various high-temperature kiln applications. It maintains stable performance at temperatures up to 1380°C. Customized sizes and end processing are available to cater to diverse needs.

Typical application:

Load-bearing structure of industrial kilns

Feature:

1. Light weight, energy saving.

2. Long service life.

3. High heat transfer efficiency.

4. High temperature non-deformation.

The physical properties of reaction sintered silicon carbide ceramics products:

Beam Load-Bearing Capacity Table:

The bending strength of reaction-sintered silicon carbide beams is calculated based on 250 MPa, with a 5-fold safety factor. The bearing capacity is determined for a length of 1 meter. When the product length is L, the bearing capacity can be calculated using the following formulas:

• Concentrated load = Value from table × 1m × L
• Resultant force of uniformly distributed load = Value from table × 1m × L

This bearing capacity applies to temperatures below 1380℃.
