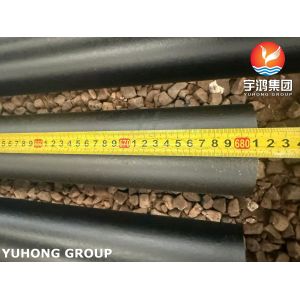

    API 560 Radiant Section Coils: ASTM A335 P5 Seamless Pipes (Normalized & Tempered)​

    Ask Lasest Price
    Brand Name : YUHONG
    Model Number : Radiant pipe
    Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008.
    Price : 0-1000000USD
    Payment Terms : T/T, L/C, D/A
    Supply Ability : According to Clients' Requirement
    Delivery Time : 10days->
    • Product Details
    • Company Profile

    API 560 Radiant Section Coils: ASTM A335 P5 Seamless Pipes (Normalized & Tempered)​

    API 560 Radiant Section Coils: ASTM A335 P5 Seamless Pipes (Normalized & Tempered)​

    ASTM A335 P5 alloy steel seamless radiant pipes are essential components in API 560 fired heaters, widely used in refineries and petrochemical plants. Designed for high-temperature and high-pressure applications, these pipes offer excellent thermal conductivity, corrosion resistance, and durability, ensuring efficient heat transfer and reliable performance in radiant heating sections.


    Table 1: Product Overview for Pipe ASEM A335, P5

    ParameterDetails
    Product NameASEM A335, P5
    Material GradeASTM A335 P5 (Seamless Ferritic Alloy Steel Pipe)
    StandardsASTM A335 (American Standard), EN 10216-2 (European Standard)
    ApplicationWidely used in fired heaters, power plants, refineries, and petrochemical plants
    Key PropertiesHigh-temperature strength, excellent corrosion resistance, and thermal conductivity
    Common DimensionsOuter Diameter (OD): 1/2" - 24", Wall Thickness: Schedule 5 to XXS
    Common SectionsUsed in convection tubes, radiant tubes, and other heat absorption components in fired heaters

    Table 2: Fired Heater Materials (American and European Standards)

    ComponentFunctionTypical Materials (ASTM)Typical Materials (EN)
    Radiant TubesAbsorb radiant heat from burnersASTM A335 P5, P9, P11, P22EN 10216-2 10CrMo9-10, X10CrMoVNb9-1
    Convection TubesAbsorb convective heat from flue gasesASTM A213 T11, T22EN 10216-2 13CrMo4-5, 16Mo3
    Finned TubesIncrease heat transfer surface areaASTM A192, A179EN 10216-2 P235GH, 16Mo3
    Tube SupportsHold tubes in place, prevent saggingASTM A36, A516 Gr 70EN 10025 S235JR, S355J2
    HeadersDistribute fluid to/from tubesASTM A335 P5, P11EN 10216-2 10CrMo9-10
    BurnersGenerate heat for the fired heaterStainless Steel 304, 316EN 10088-1 X5CrNi18-10, X6CrNiMo17-12-2
    Refractory MaterialsInsulation to protect the heater structureFireclay Brick, High-Alumina BrickEquivalent European refractory materials
    Crossover PipingConnect radiant and convection sectionsASTM A335 P5, P11, P22EN 10216-2 10CrMo9-10, X10CrMoVNb9-1

    Table 3: Common Dimensions for ASEM A335, P5

    Outer Diameter (OD)Wall Thickness (WT) (Sch 5 to XXS)Common Applications
    1/2" (12.7 mm)2.77 mm to 12.7 mmConvection Tubes, Header Piping
    1" (25.4 mm)3.38 mm to 14.27 mmRadiant Tubes, Crossover Piping
    2" (50.8 mm)3.91 mm to 19.05 mmConvection Tubes, Process Piping
    4" (101.6 mm)4.78 mm to 23.83 mmRadiant Tubes, Headers
    8" (203.2 mm)6.35 mm to 30.96 mmHeaders, High-Temperature Piping
    12" (304.8 mm)6.35 mm to 38.1 mmMain Distribution Headers

    Table 4: Fired Heater Components and Their Functions

    ComponentLocation/ZoneFunction
    Radiant TubesRadiant SectionAbsorb radiant heat from burners
    Convection TubesConvection SectionAbsorb residual heat from flue gases
    Finned TubesConvection SectionEnhance heat transfer by increasing surface area
    BurnersRadiant and Floor SectionProvide heat by burning fuel
    HeadersInlet/Outlet ConnectionsDistribute and collect process fluid
    Tube SupportsThroughout HeaterMaintain tube alignment, prevent sagging
    Refractory MaterialsHeater Walls and FloorsInsulate and protect the structural steel from high heat
    Crossover PipingBetween Radiant and Convection SectionsTransfer fluid between heater zones
    Air PreheaterDownstream of HeaterRecover waste heat from flue gases to preheat air
    Stack/DuctworkHeater OutletVent exhaust gases

    Table 5: Fired Heater Applications of ASEM A335 P5

    Application AreaDetails
    RefineriesPreheating crude oil, hydrocarbon processing
    Petrochemical PlantsHeating process fluids for chemical reactions
    Power PlantsHeat recovery and steam generation
    Industrial FurnacesHigh-temperature heat transfer
